Wall Plate | WALL PLATE (with Inserts)

The Wall Plate with inserts by Buster + Punch is a metal wall plate, supplied with its inserts, that takes your choice of the brand's toggle switches, dimmers, sockets or data modules. It measures from 9 cm by 9 cm in 1 gang to 30.3 cm by 9 cm in 4 gang, can be fitted horizontally or vertically and comes in brass, smoked bronze, black, steel and white.

A metal wall plate, from 1 to 4 gang

This metal wall plate combines stainless steel and polycarbonate. It is finished with solid metal slotted screws, a detail shared by the entire Buster + Punch electrical range. Once in place, it leaves a 6.5 mm shadow gap with the wall.

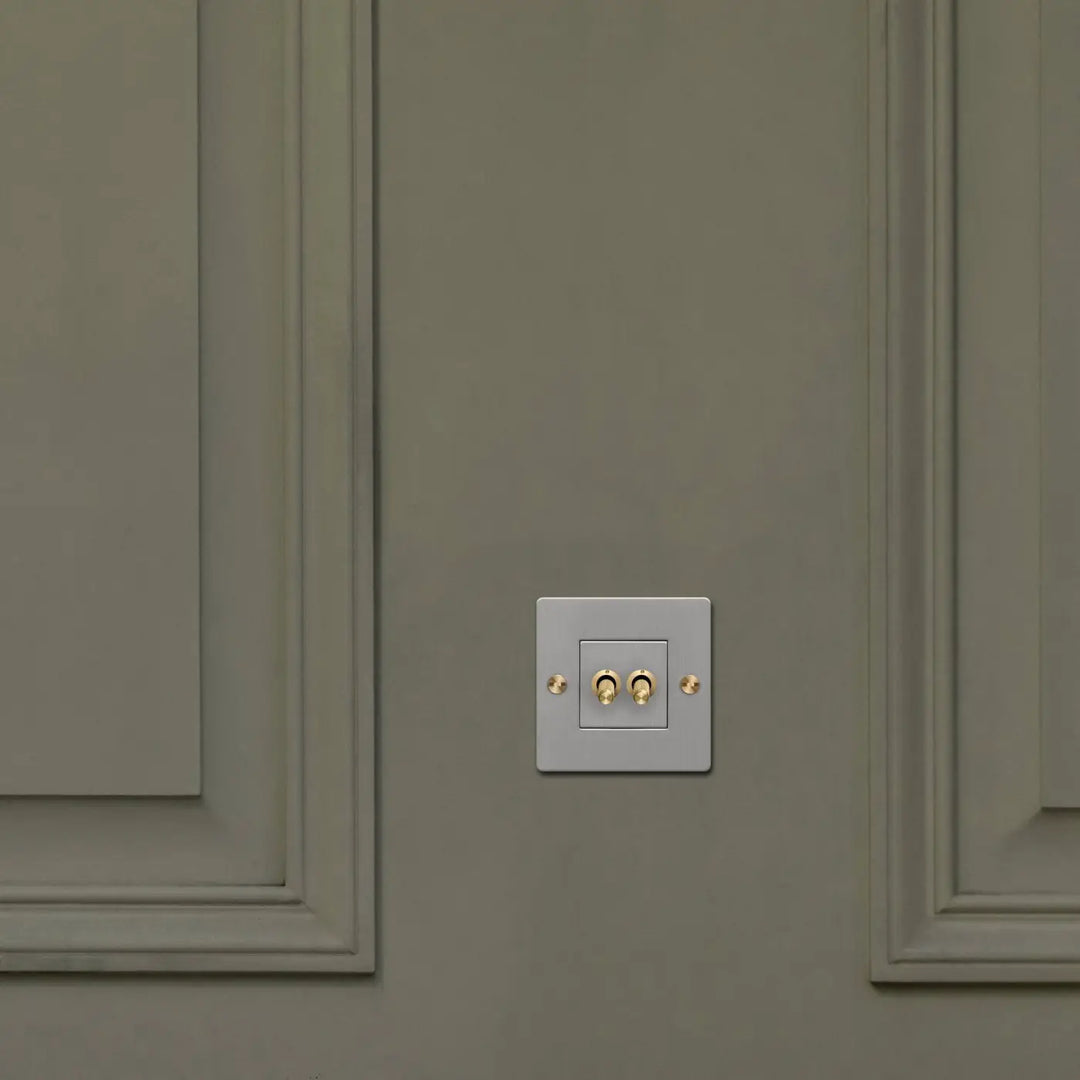

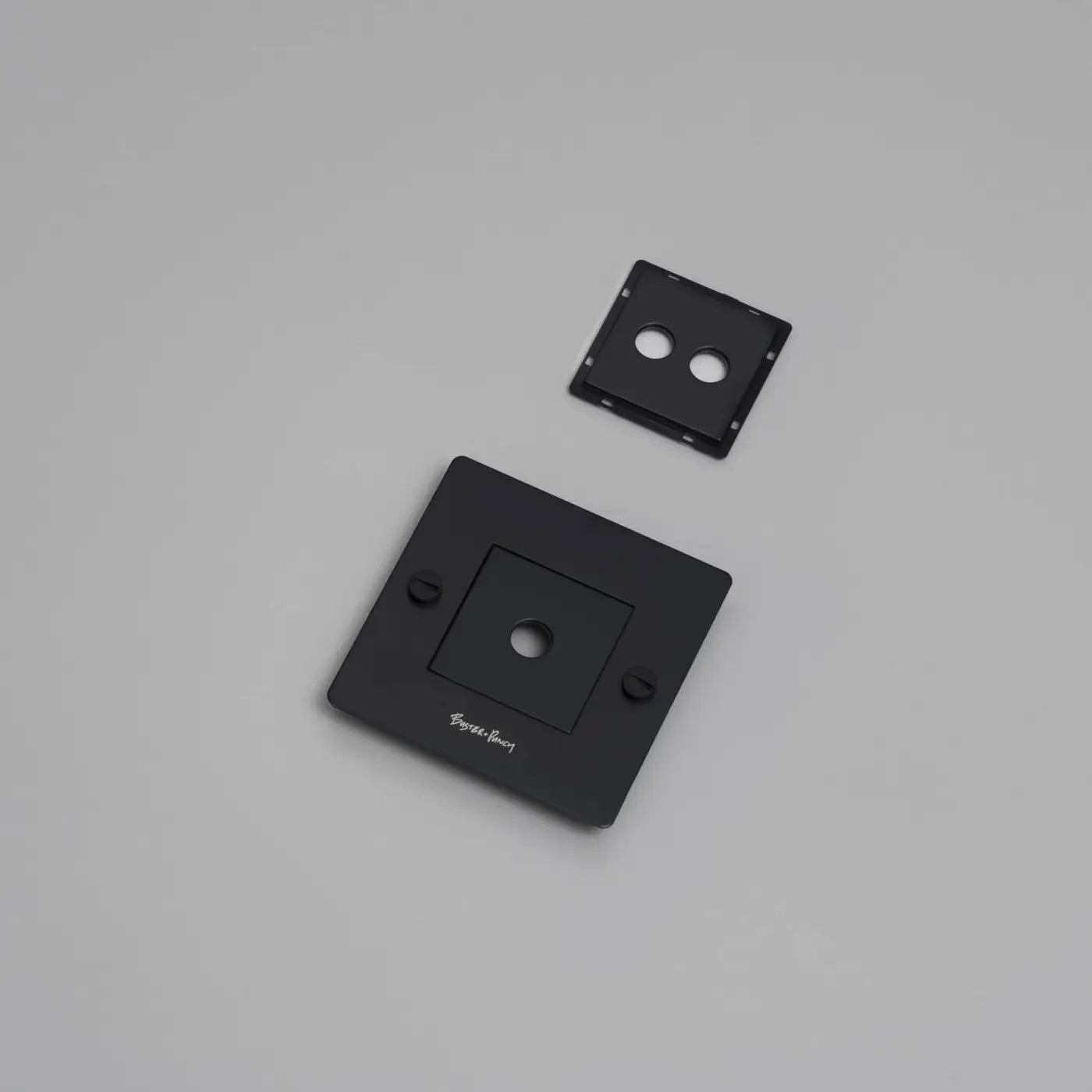

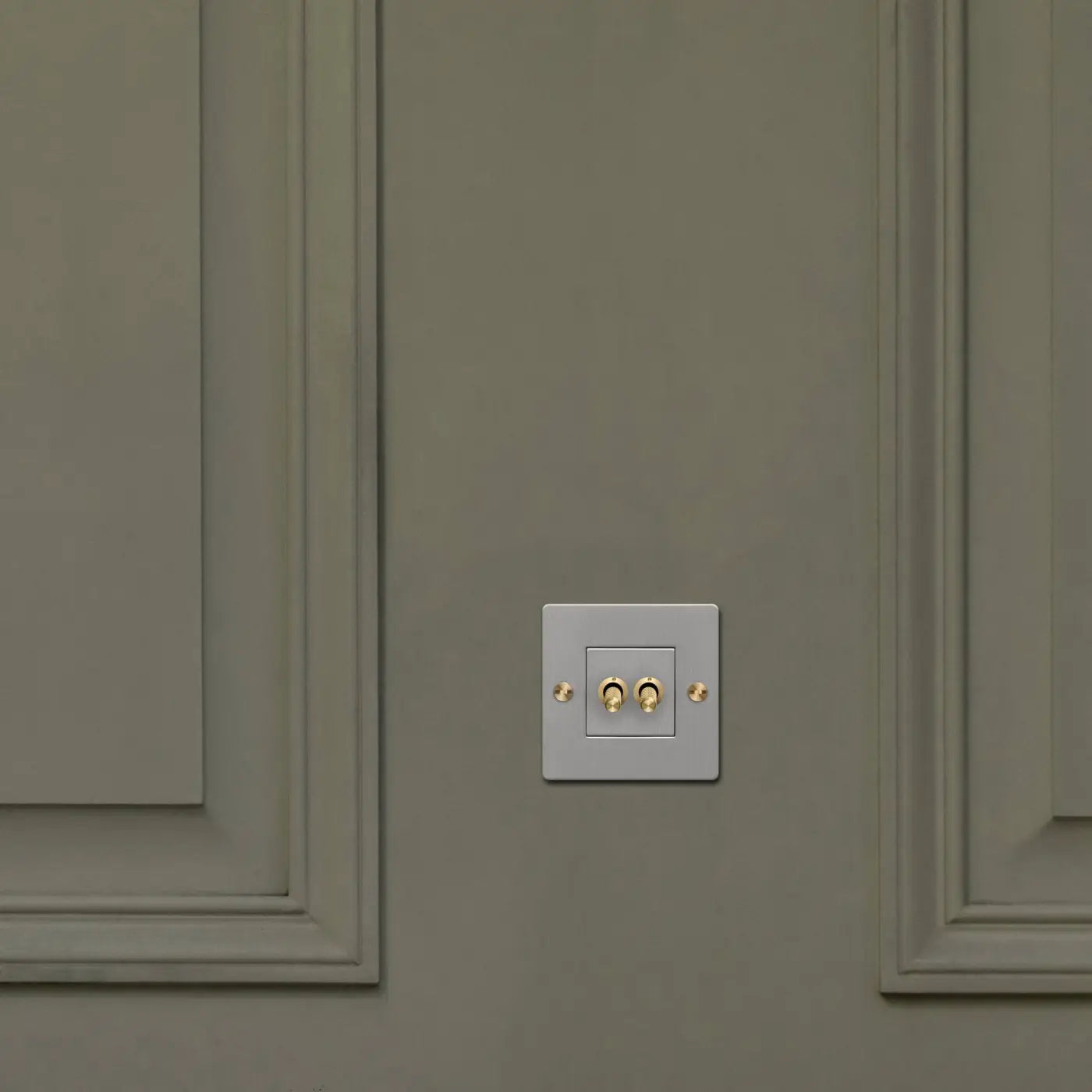

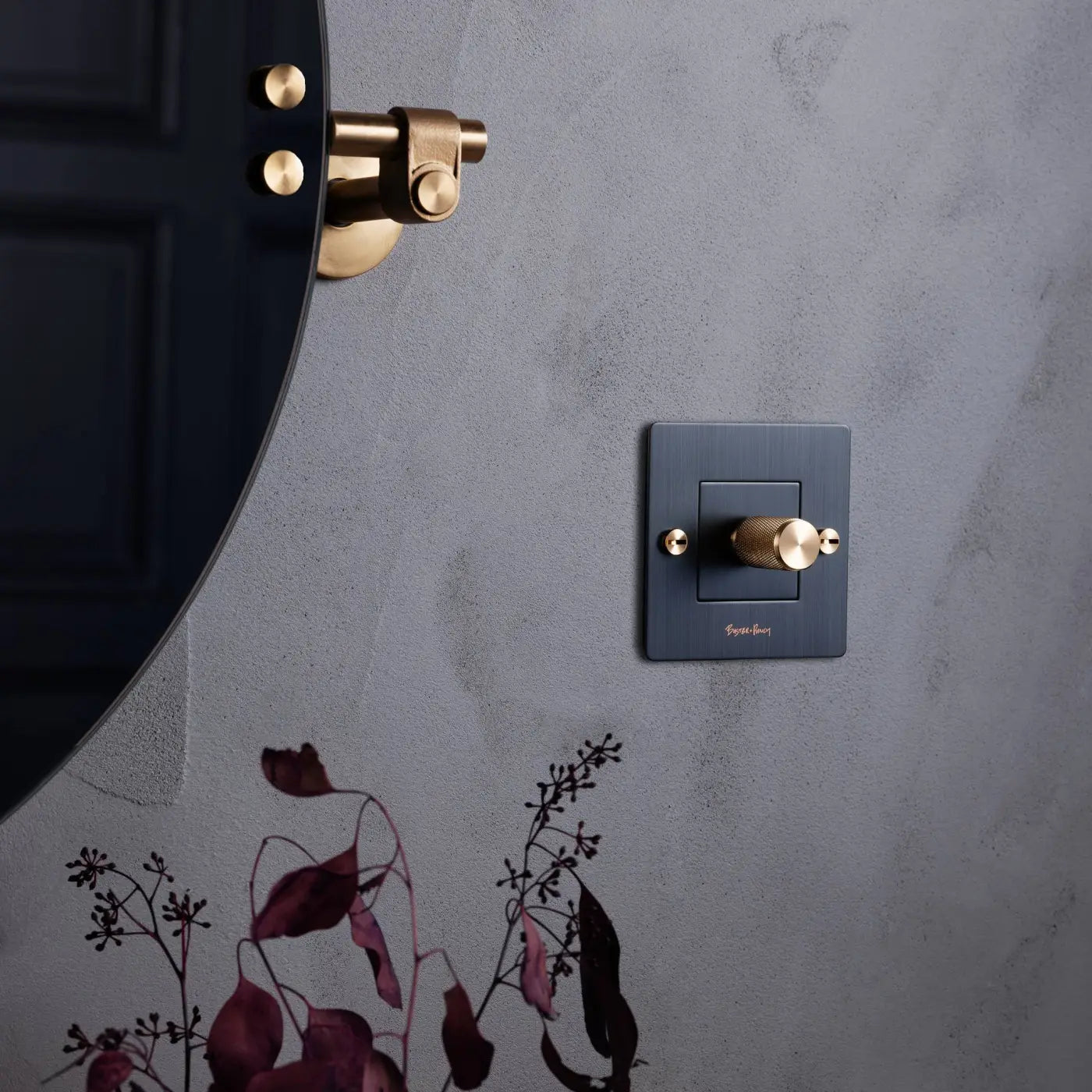

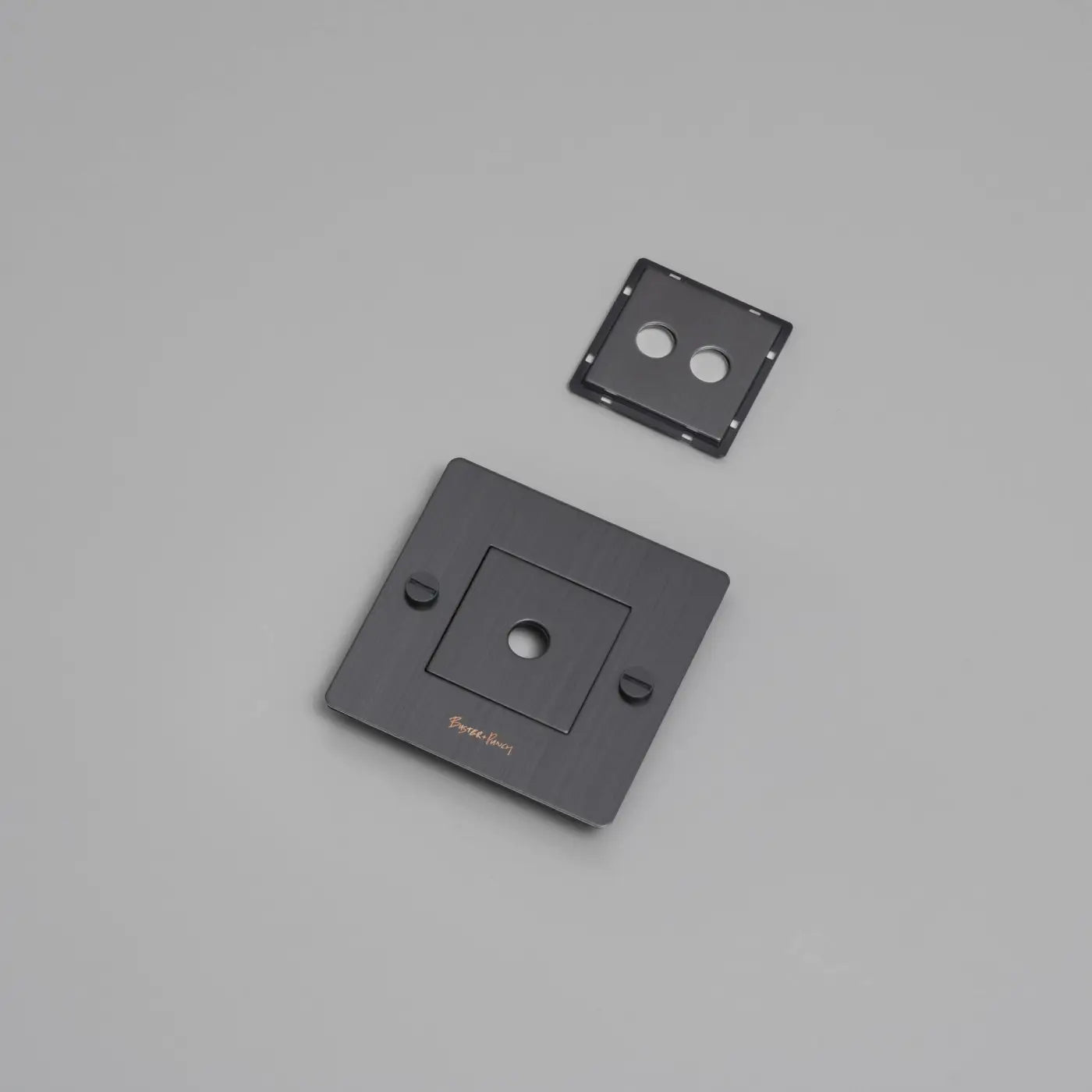

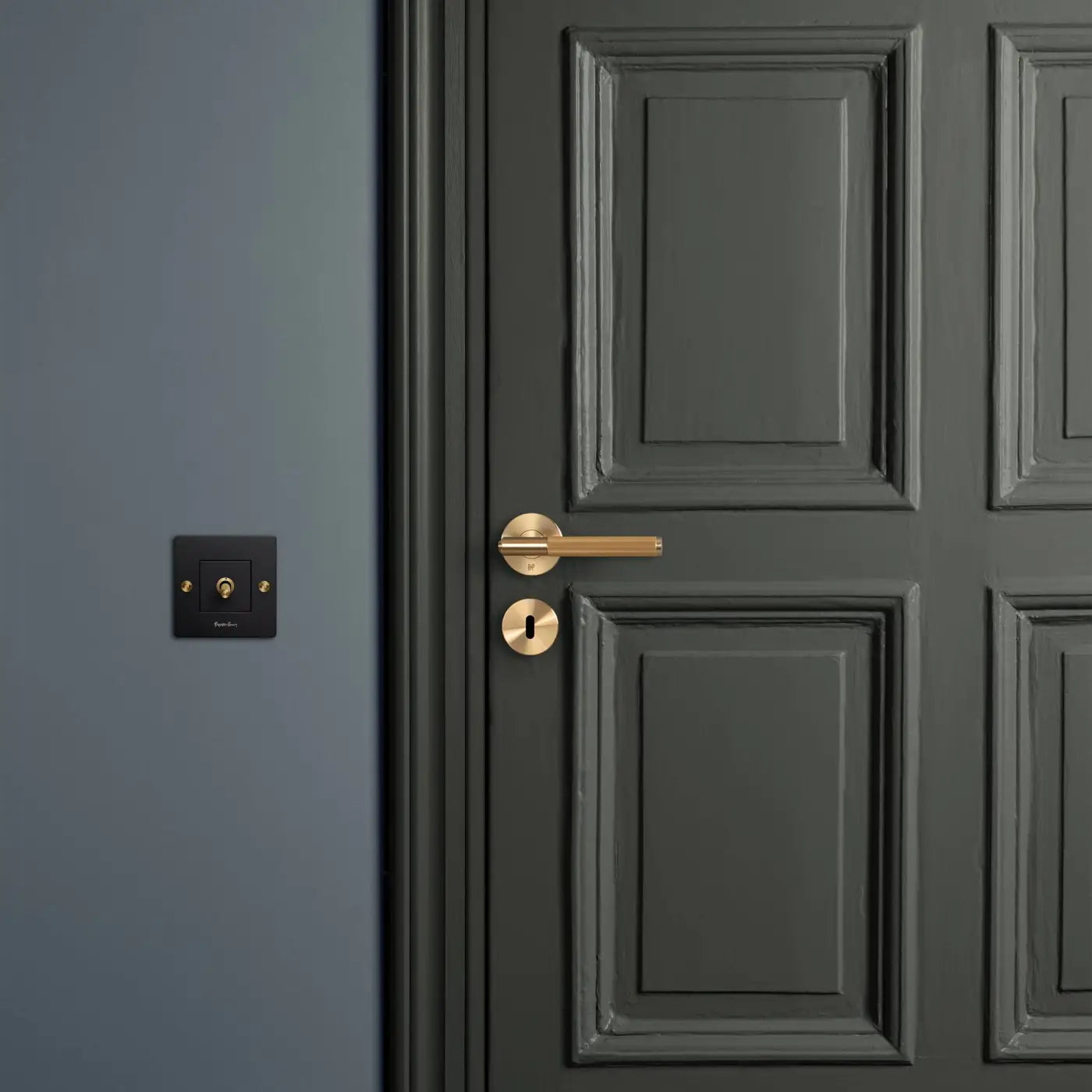

The 1 gang plate measures 9 cm by 9 cm and can be chosen with the brand's logo or with no marking at all. The 2, 3 and 4 gang plates carry no logo. They are 16.1 cm, 23.2 cm and 30.3 cm long and 9 cm wide.

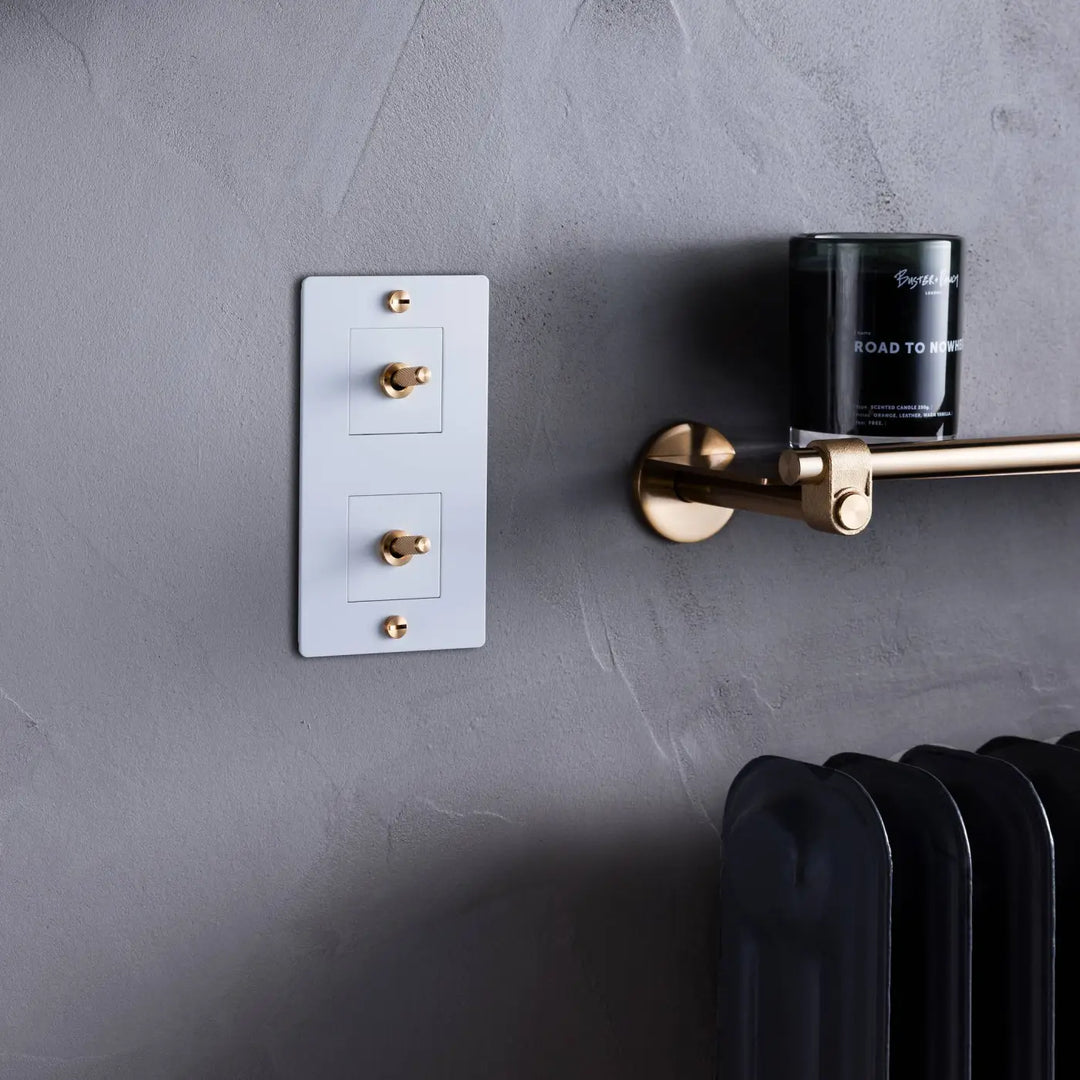

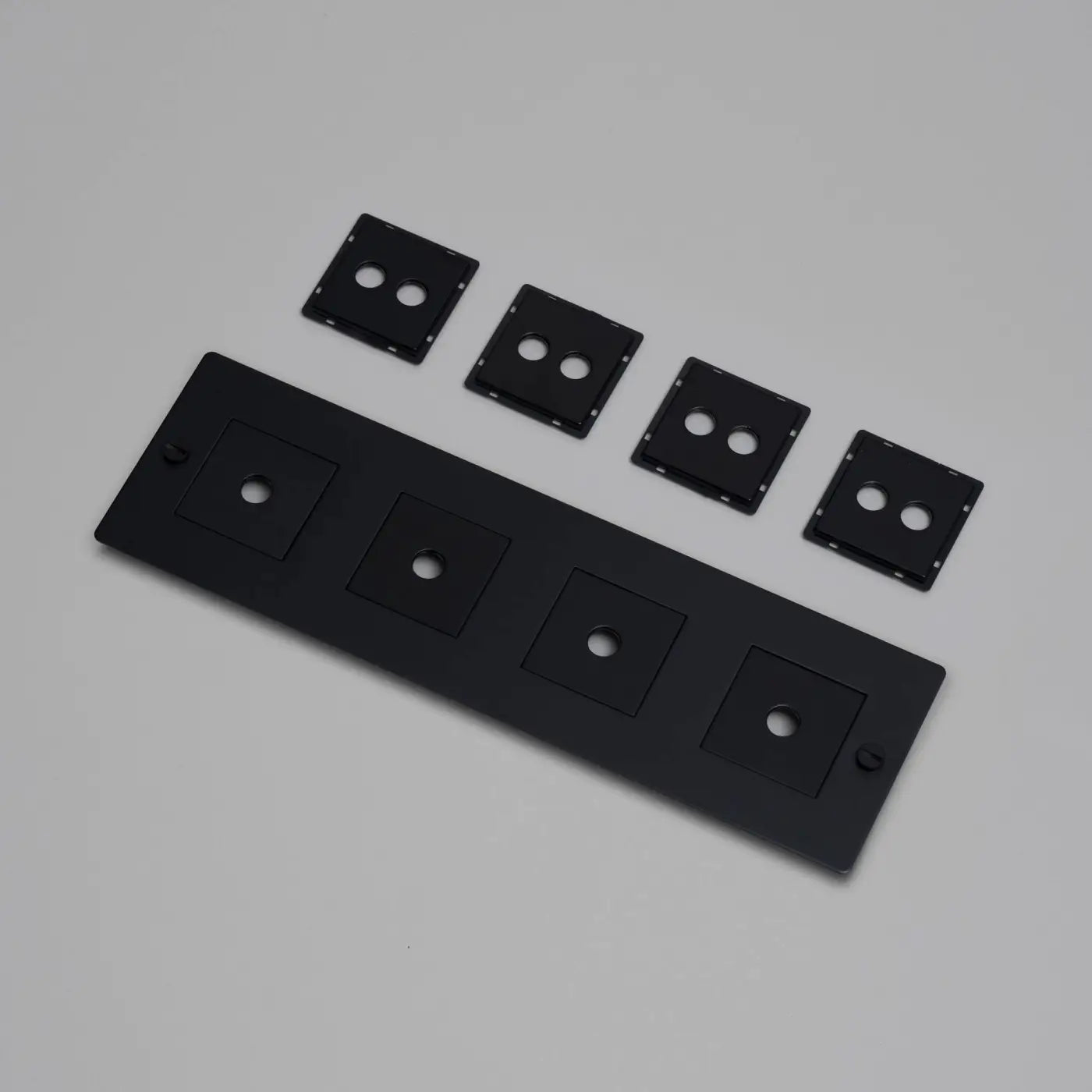

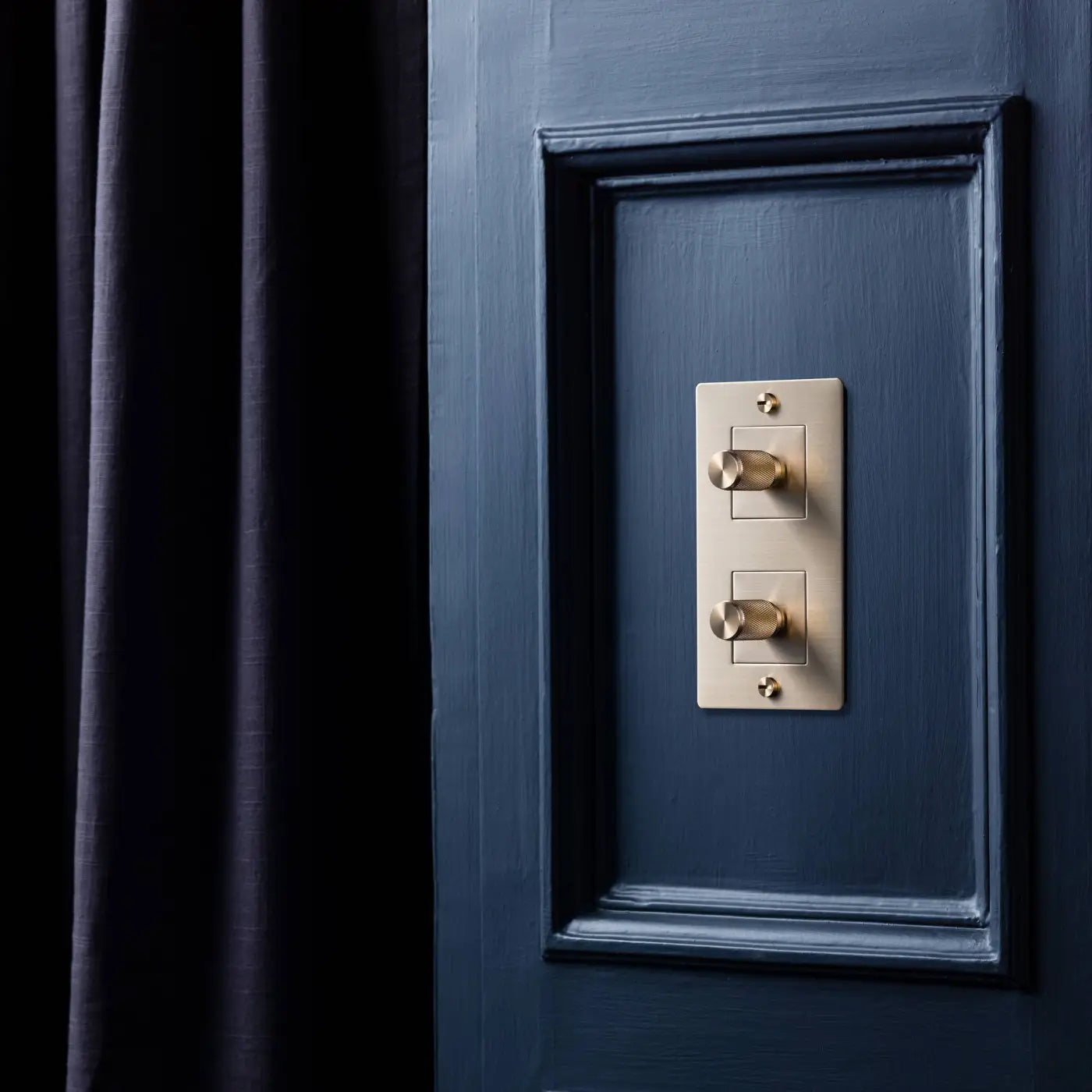

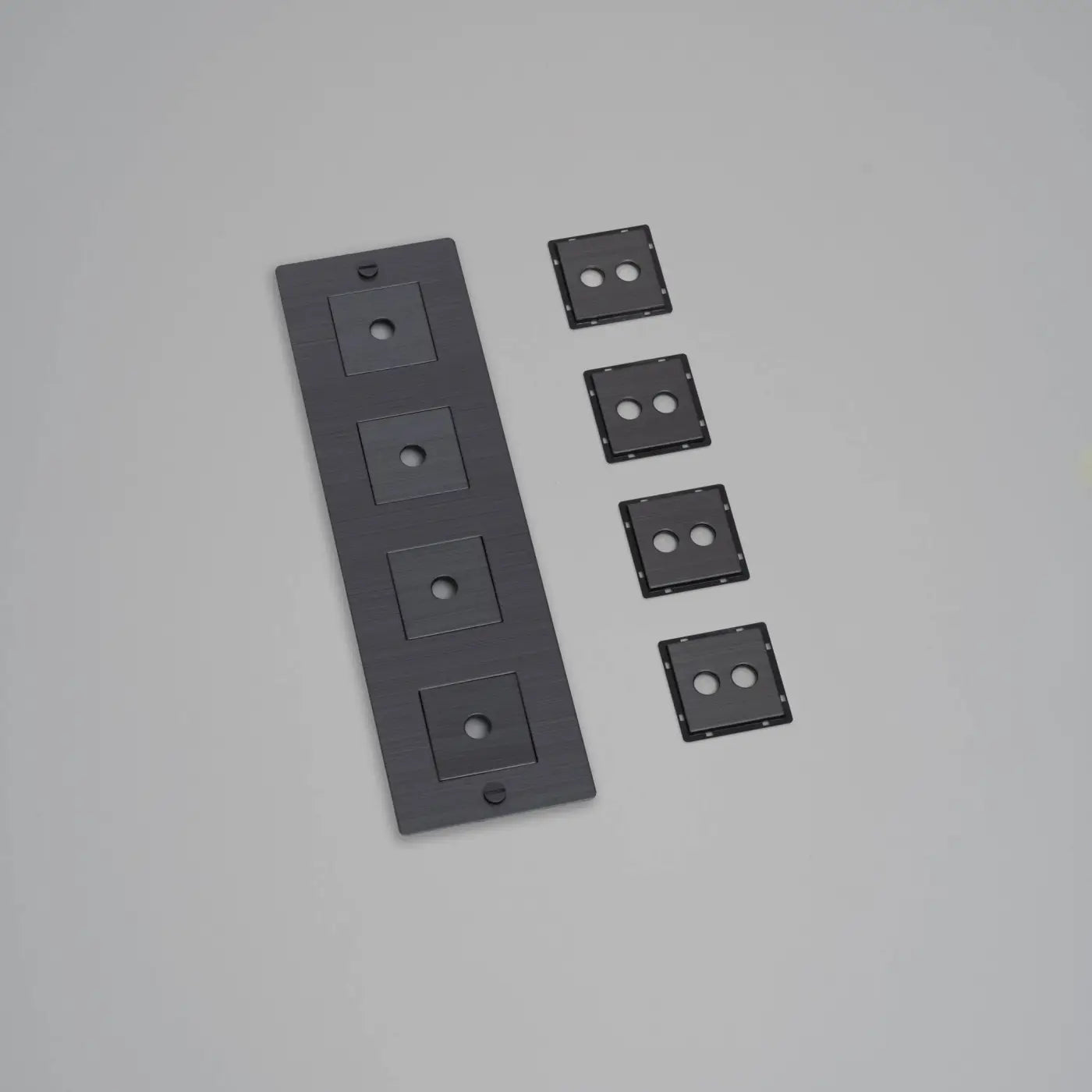

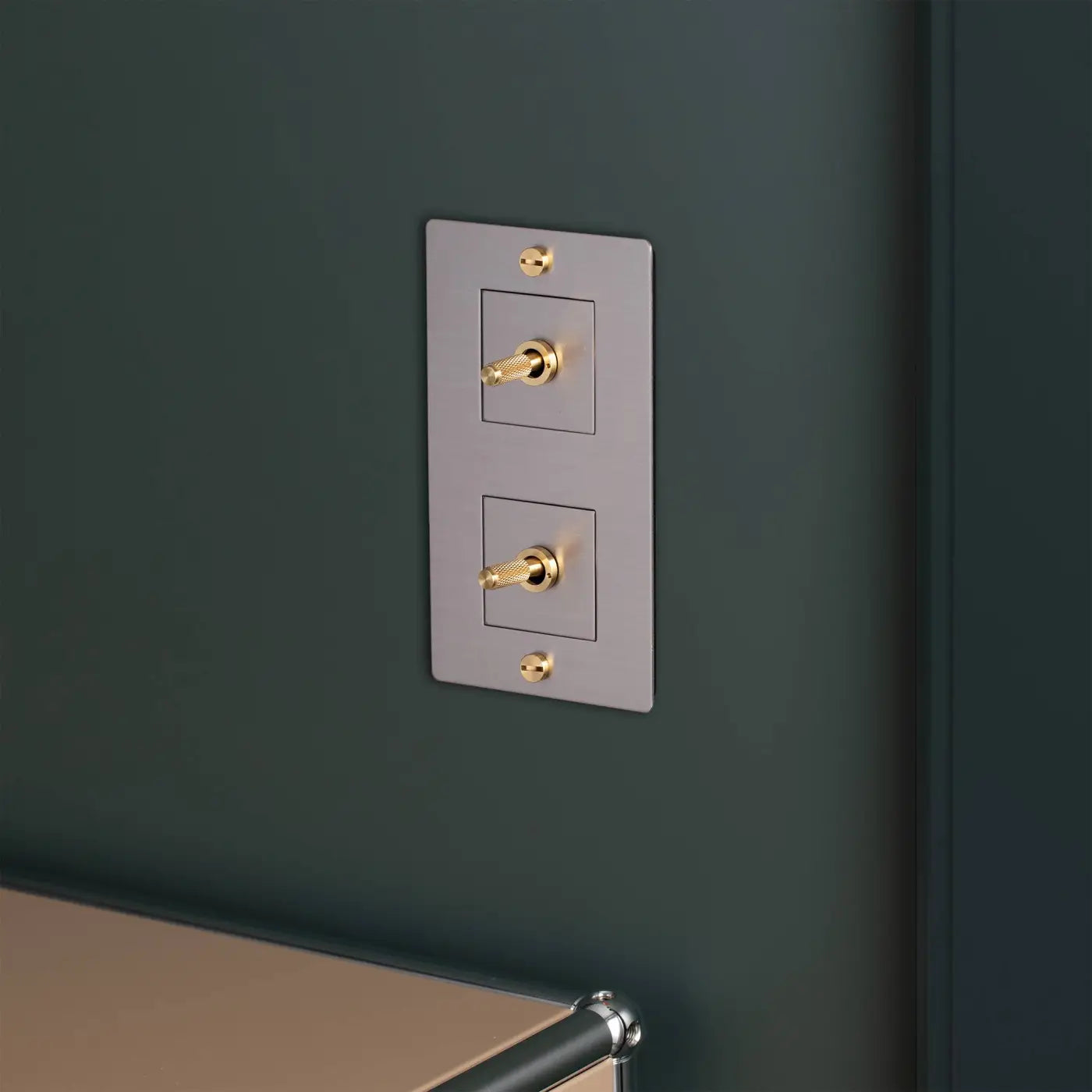

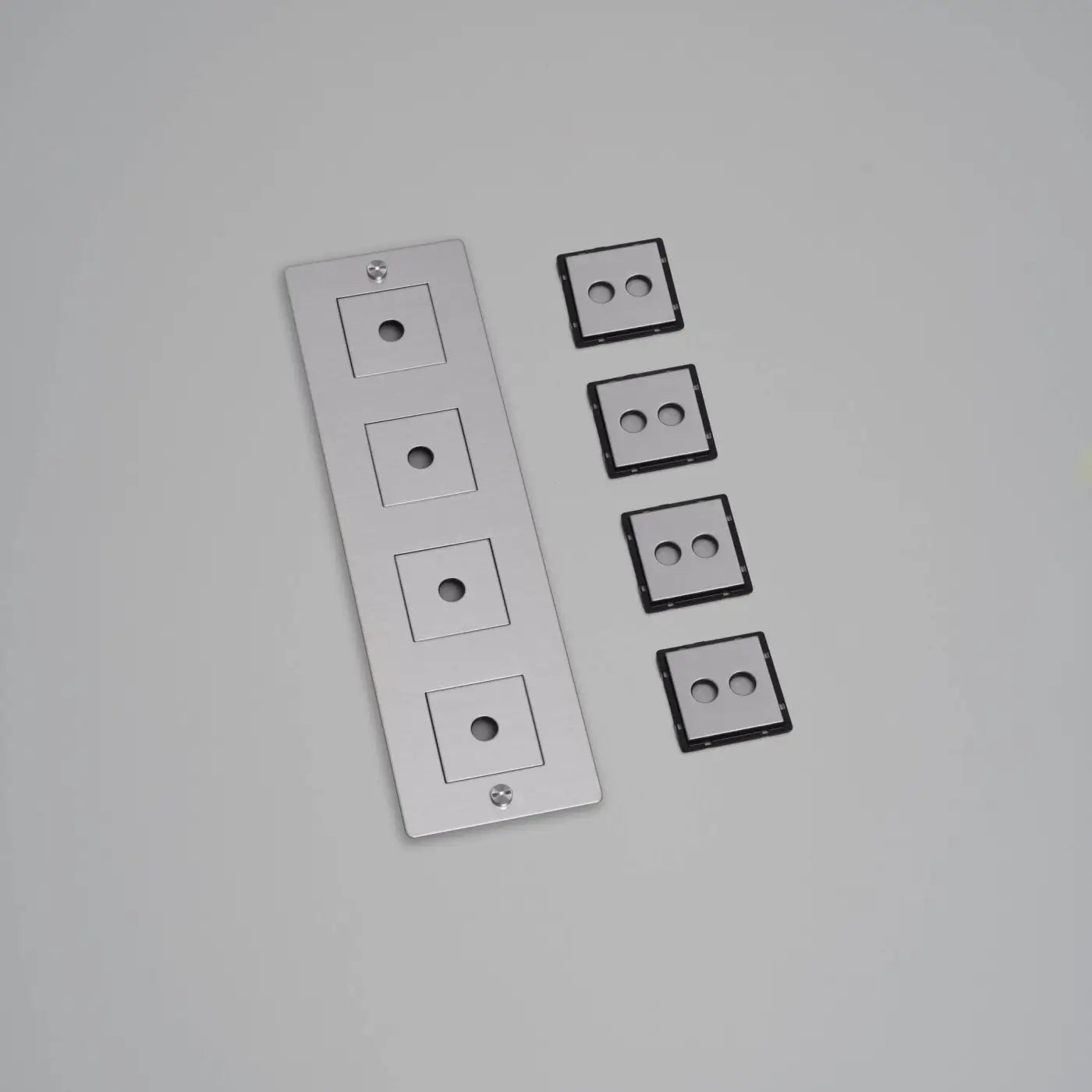

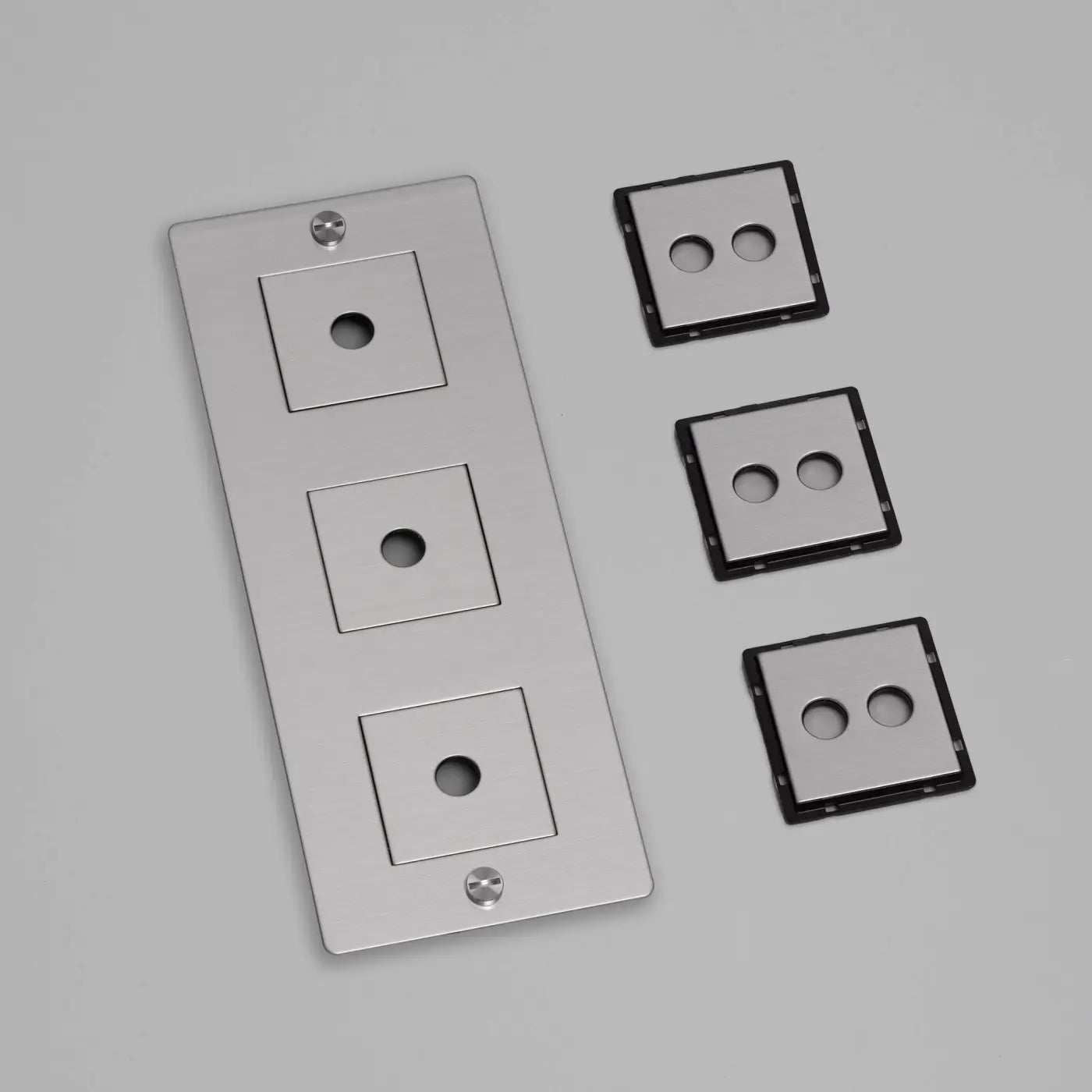

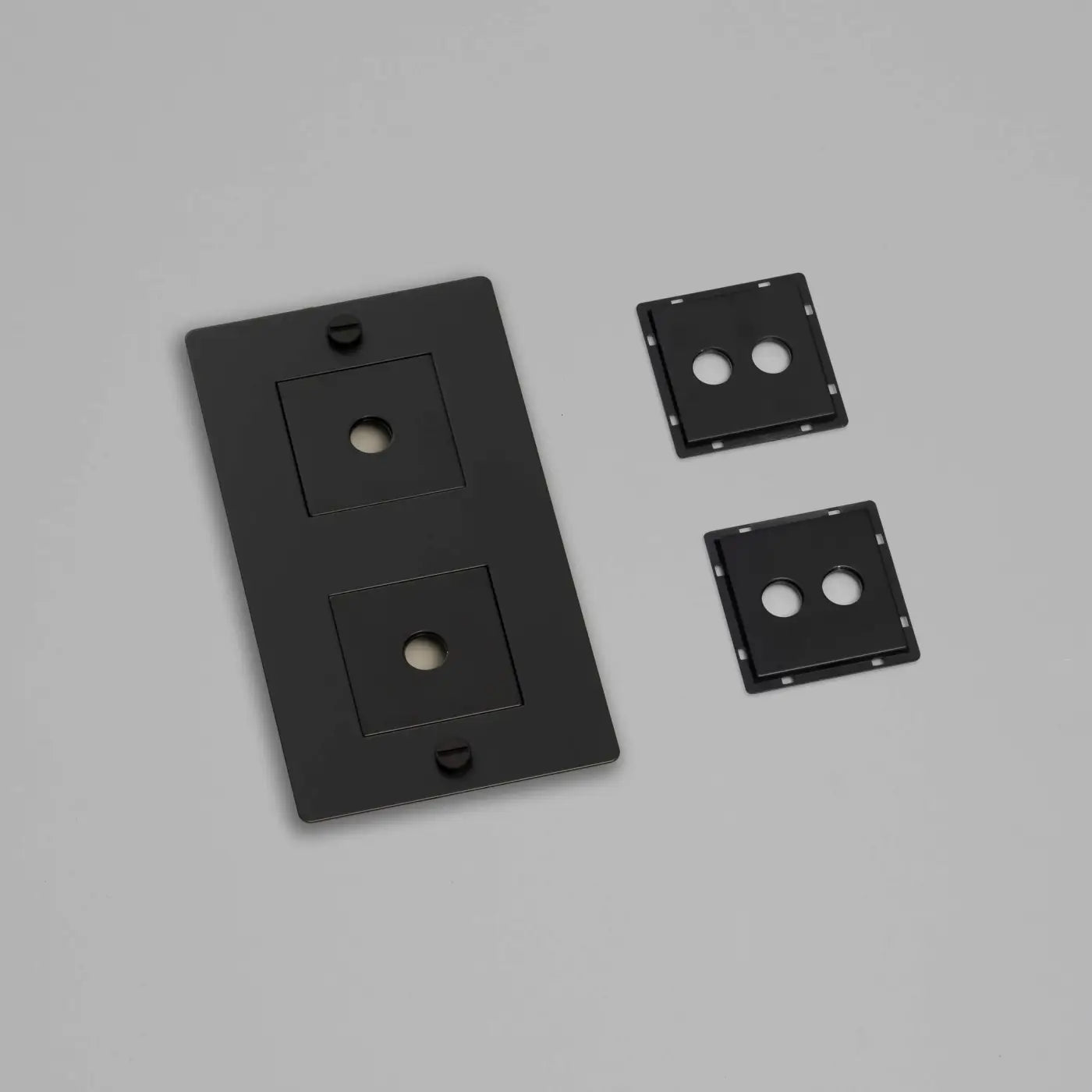

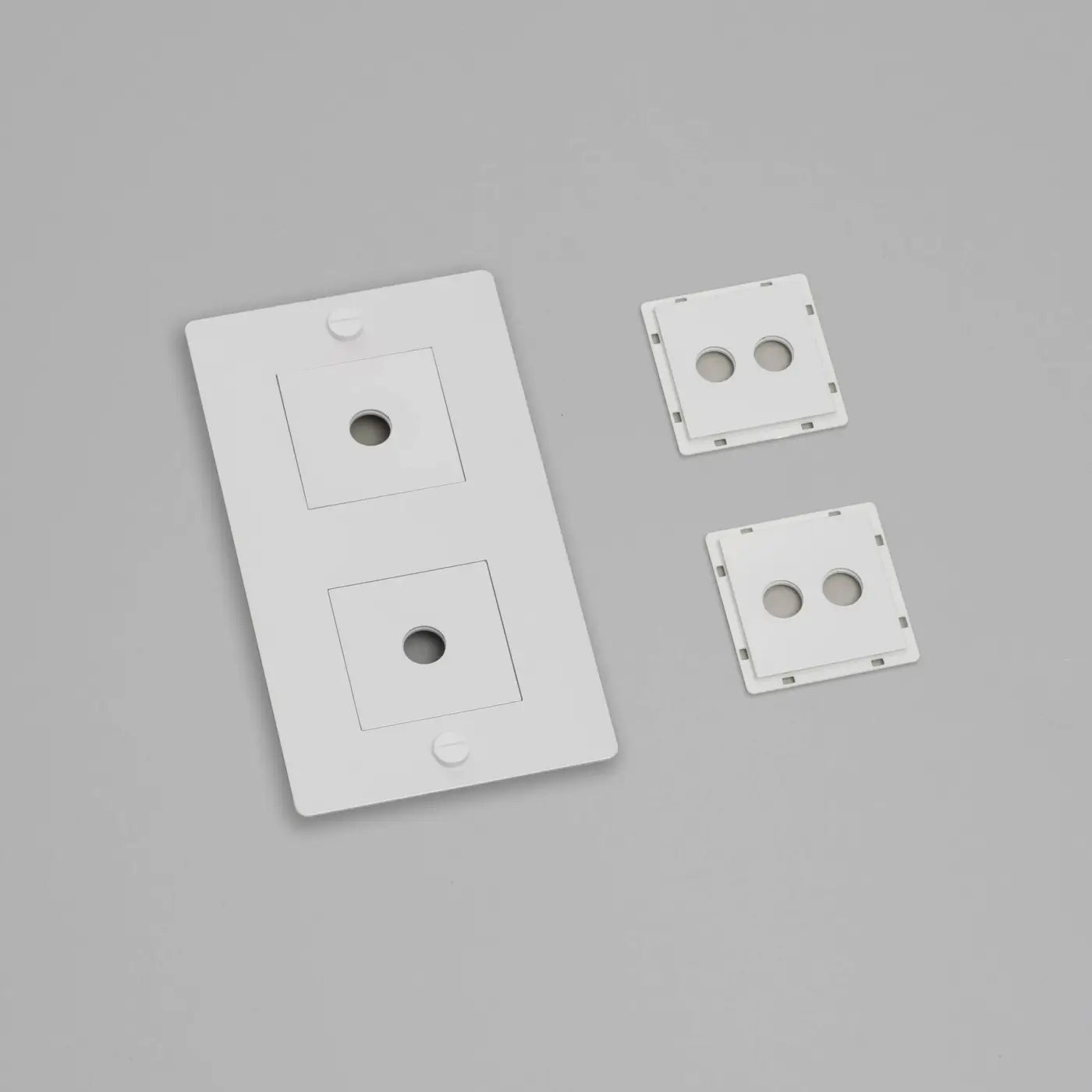

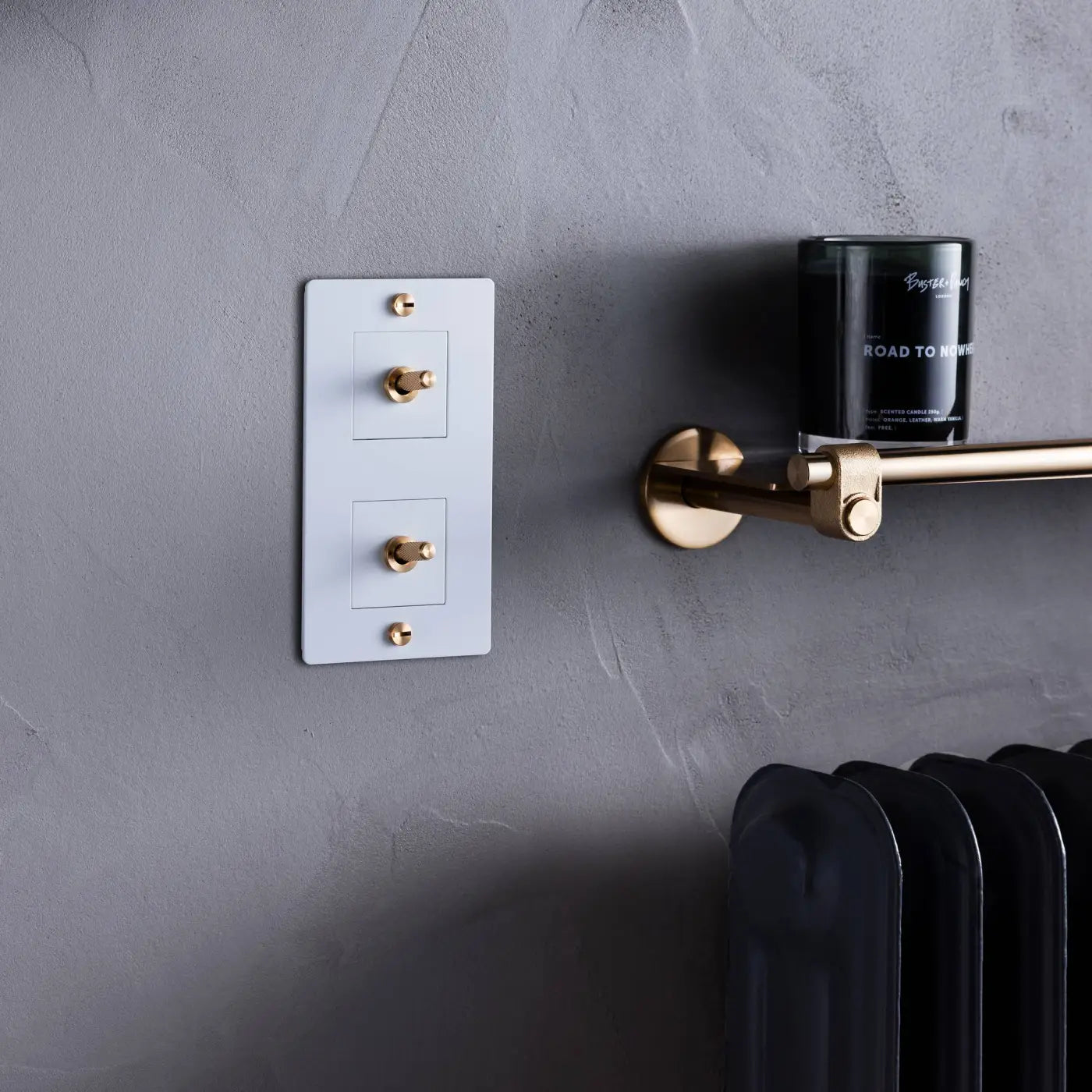

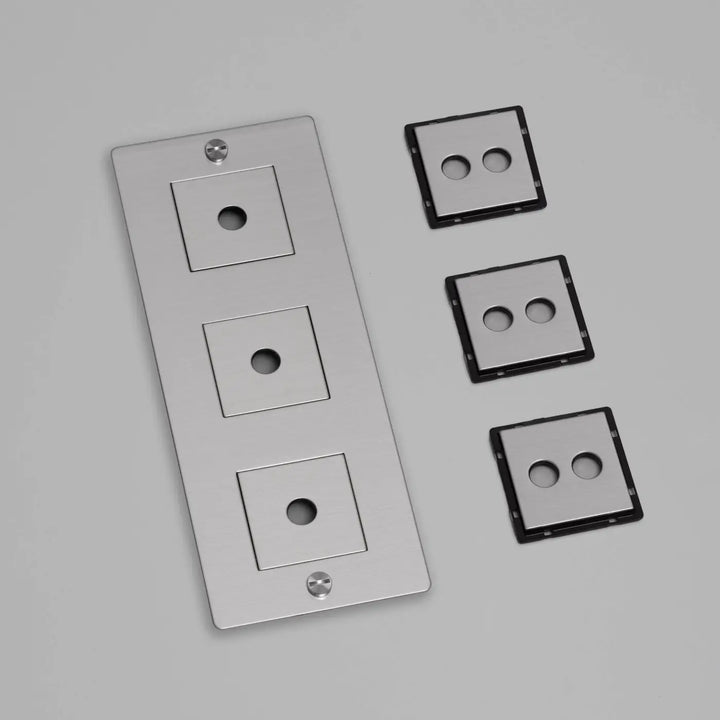

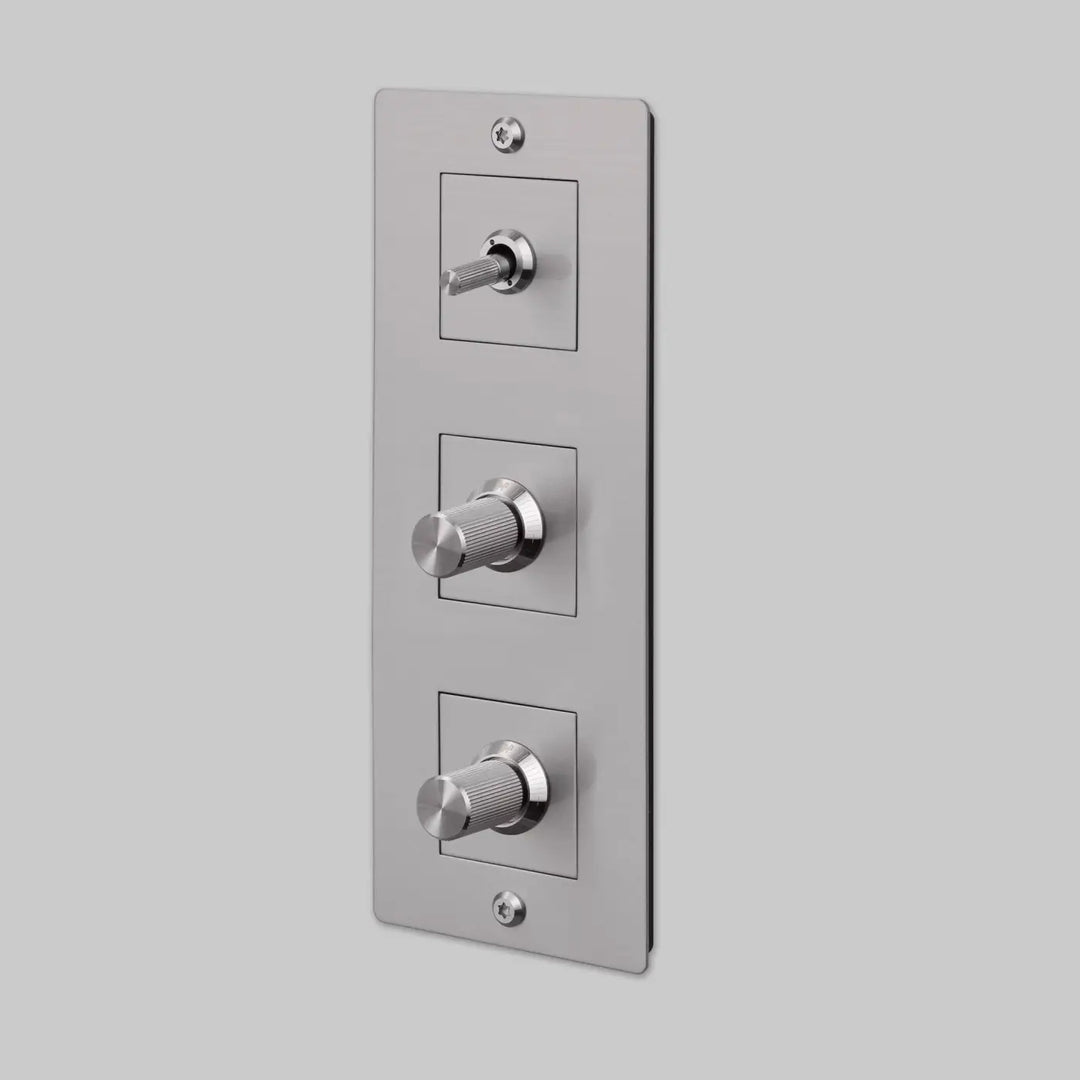

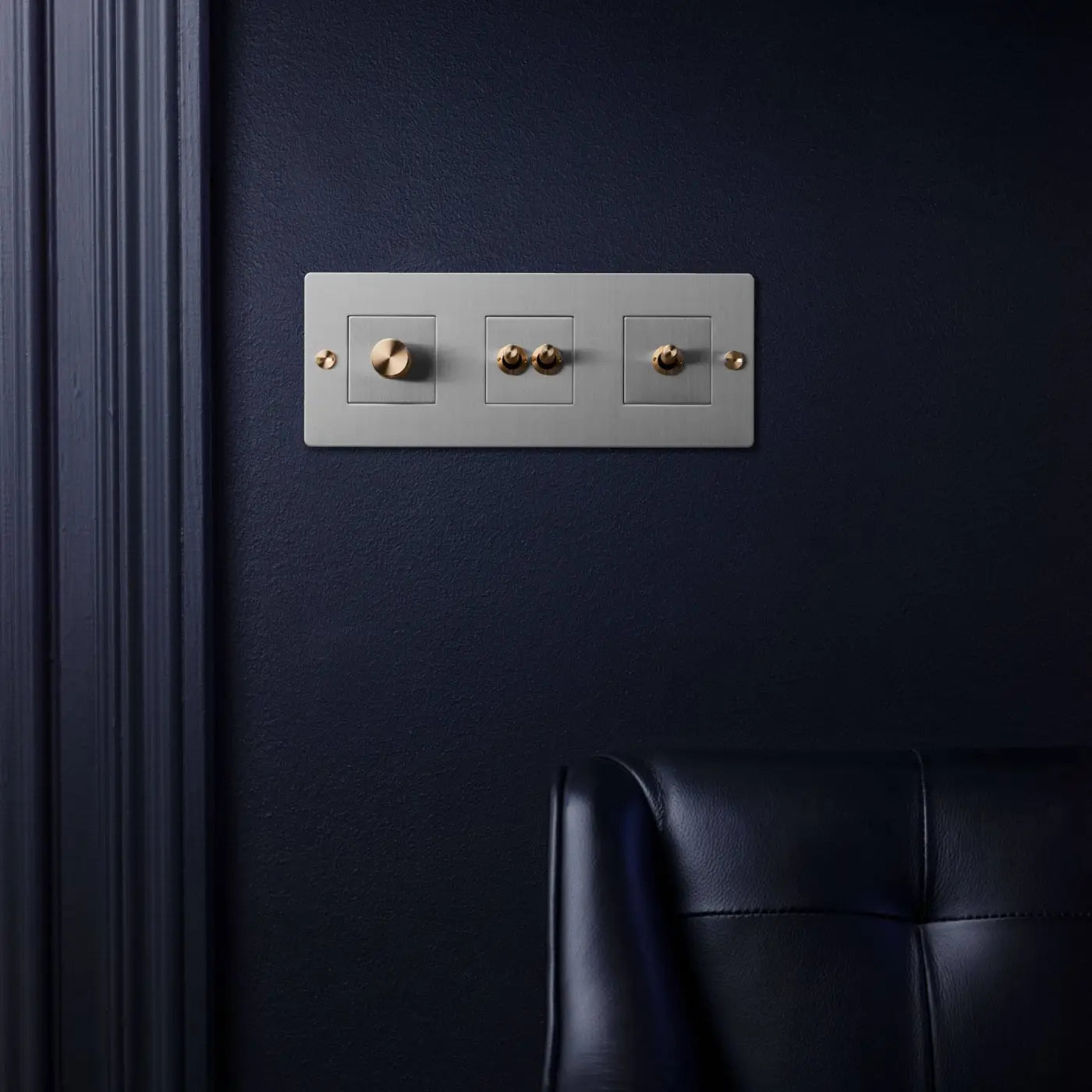

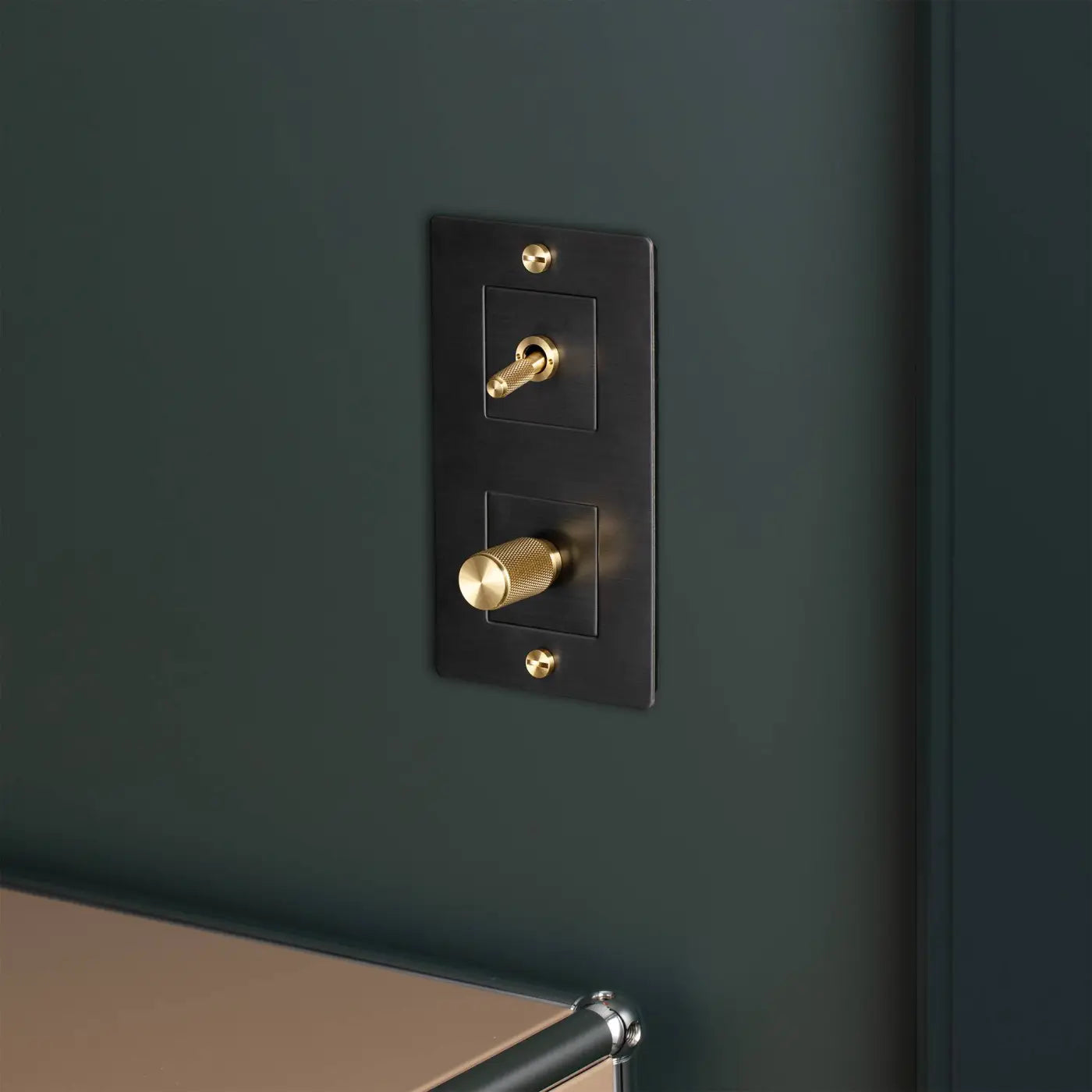

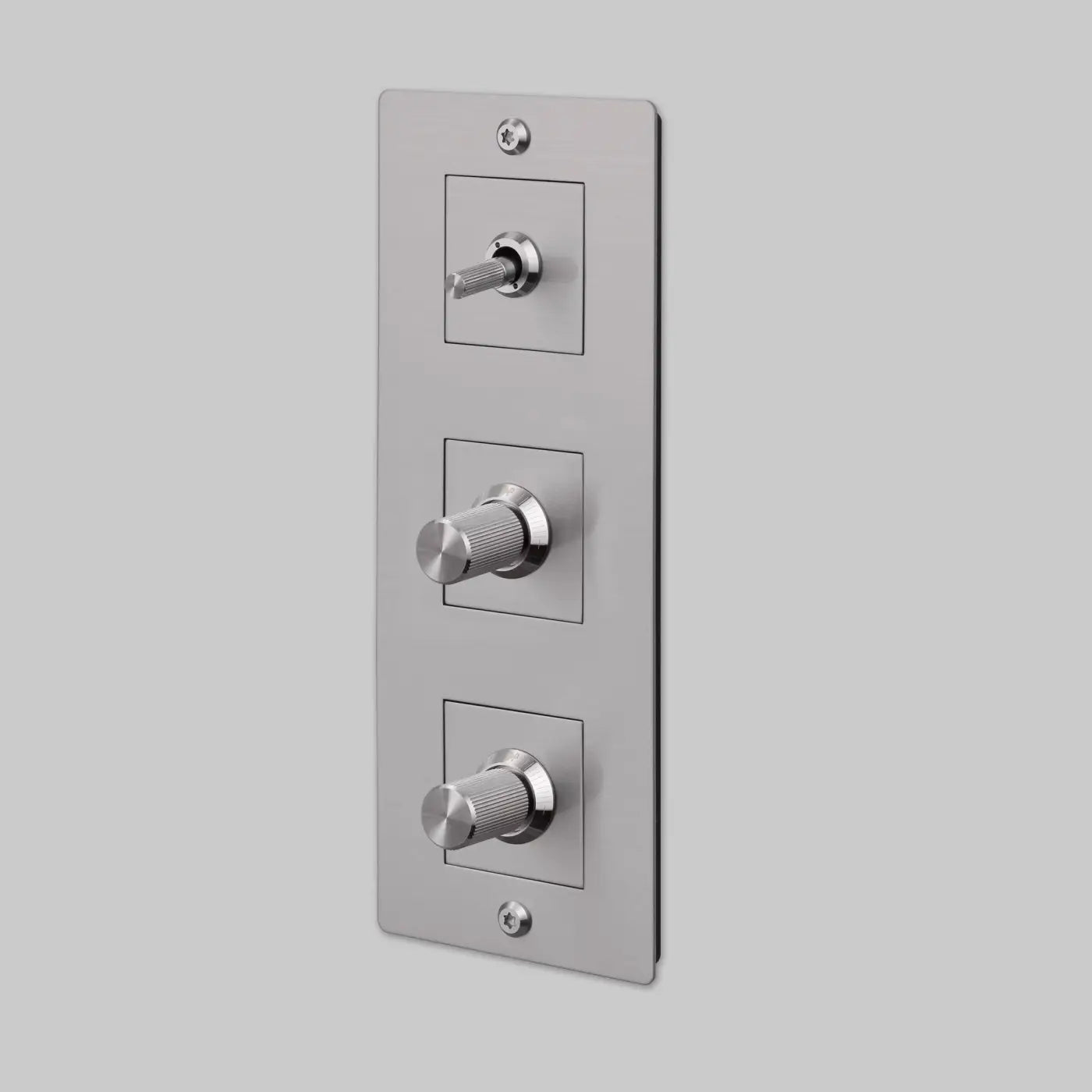

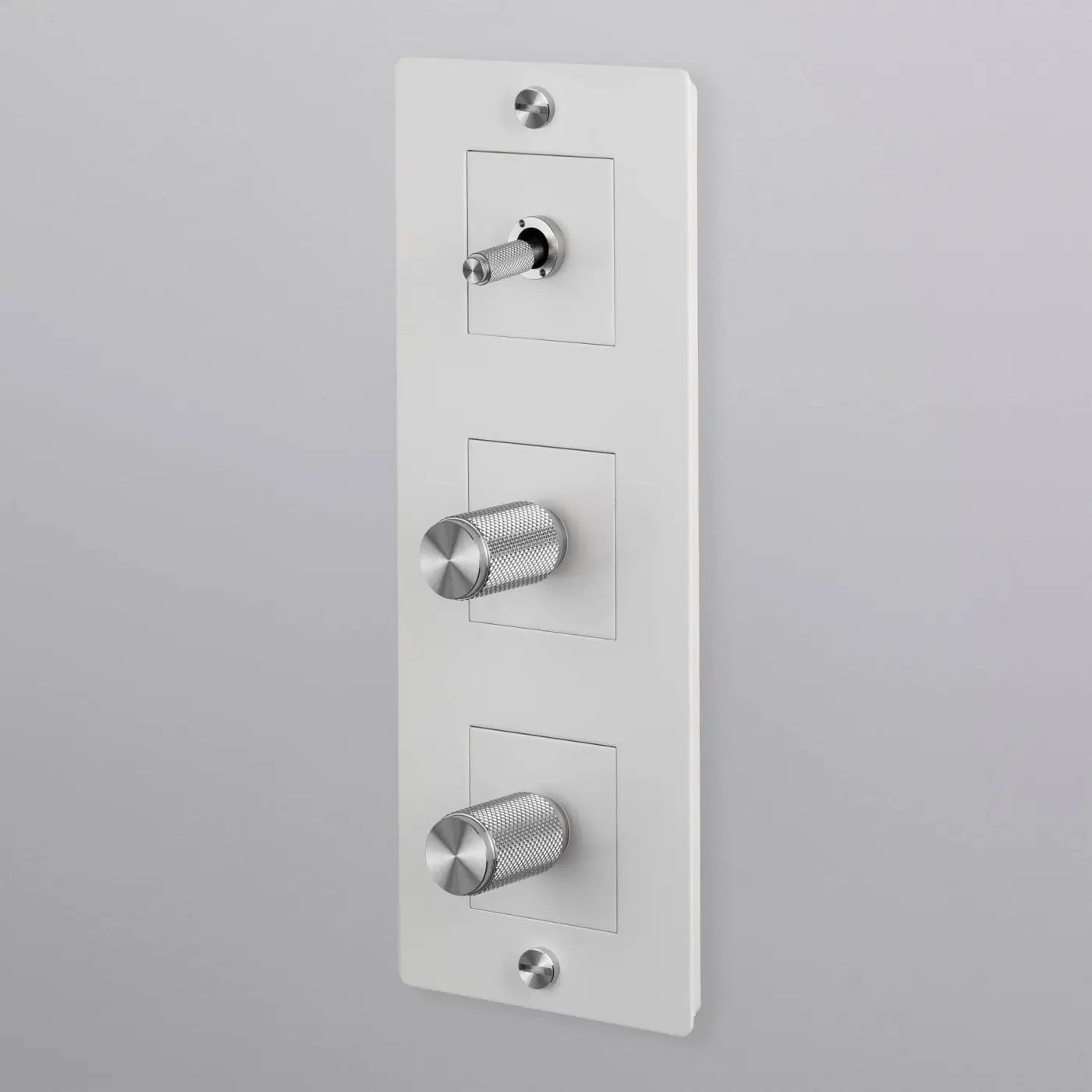

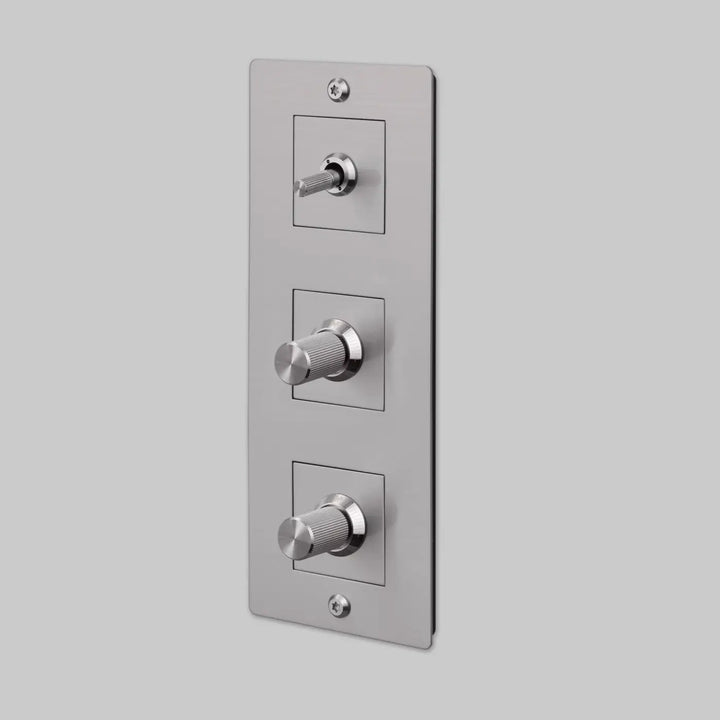

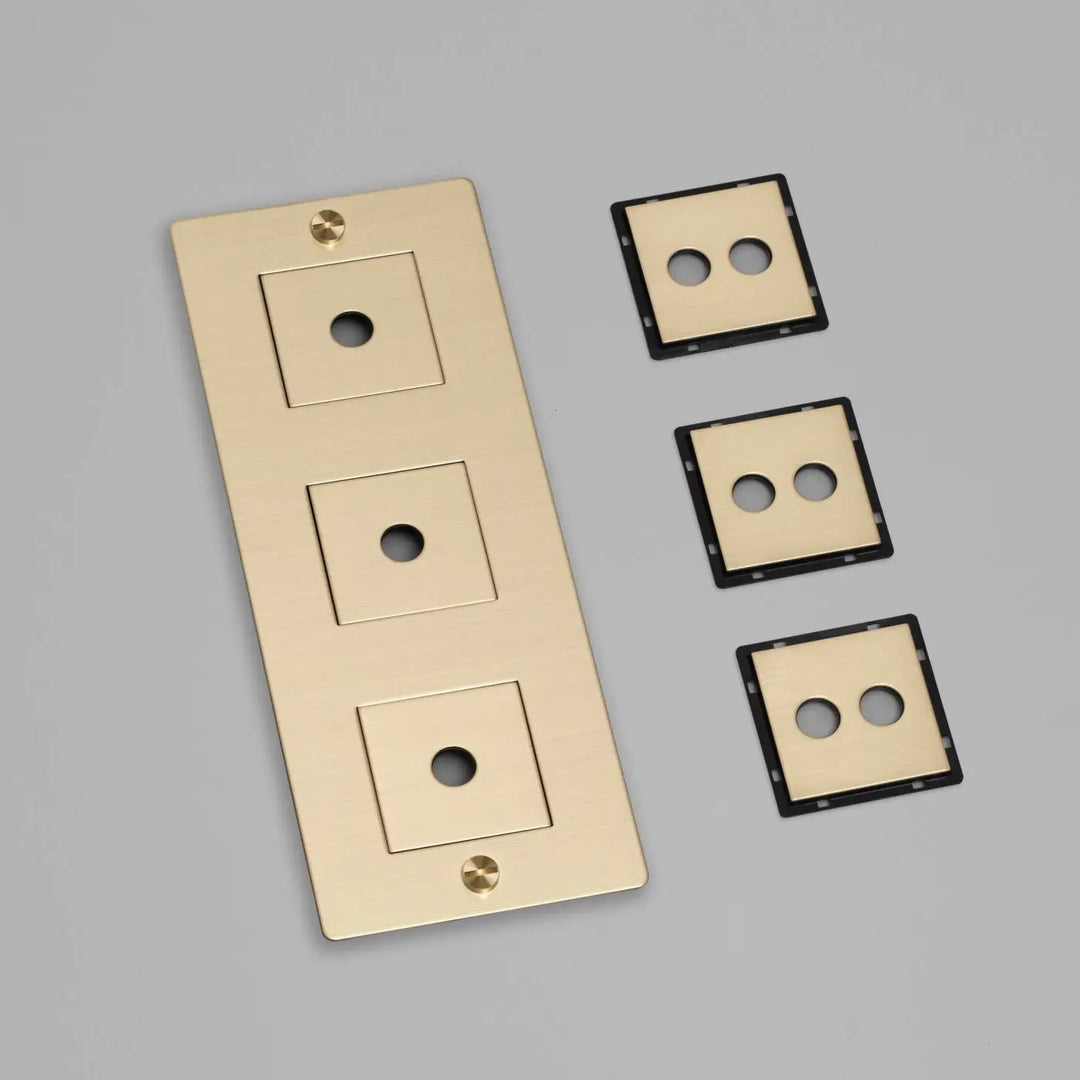

Each 2 to 4 gang plate comes in 2 orientations. The horizontal wall plate lines up its gangs side by side. The vertical version stacks them and takes up only 9 cm in width.

Plate with inserts: switches, dimmers and sockets

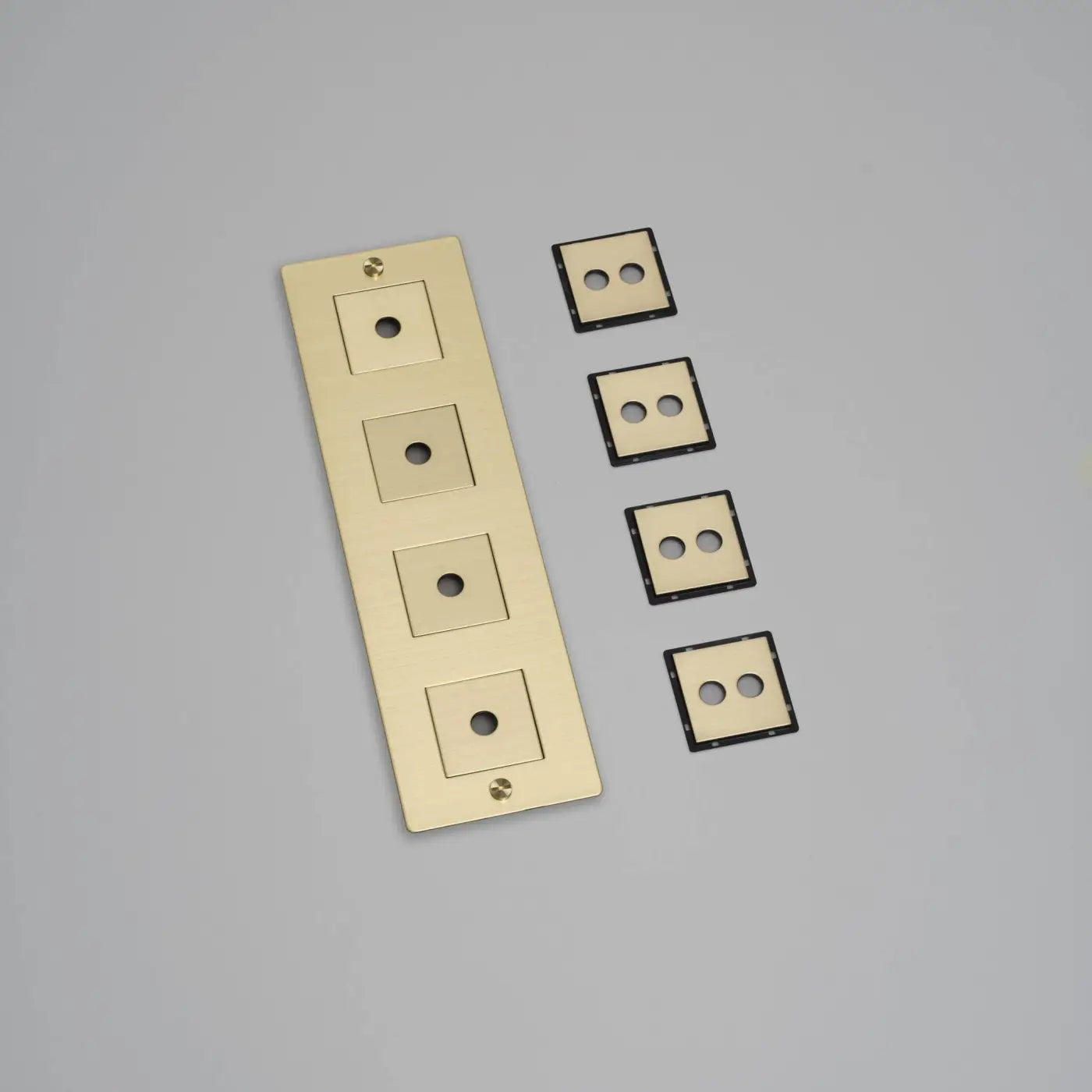

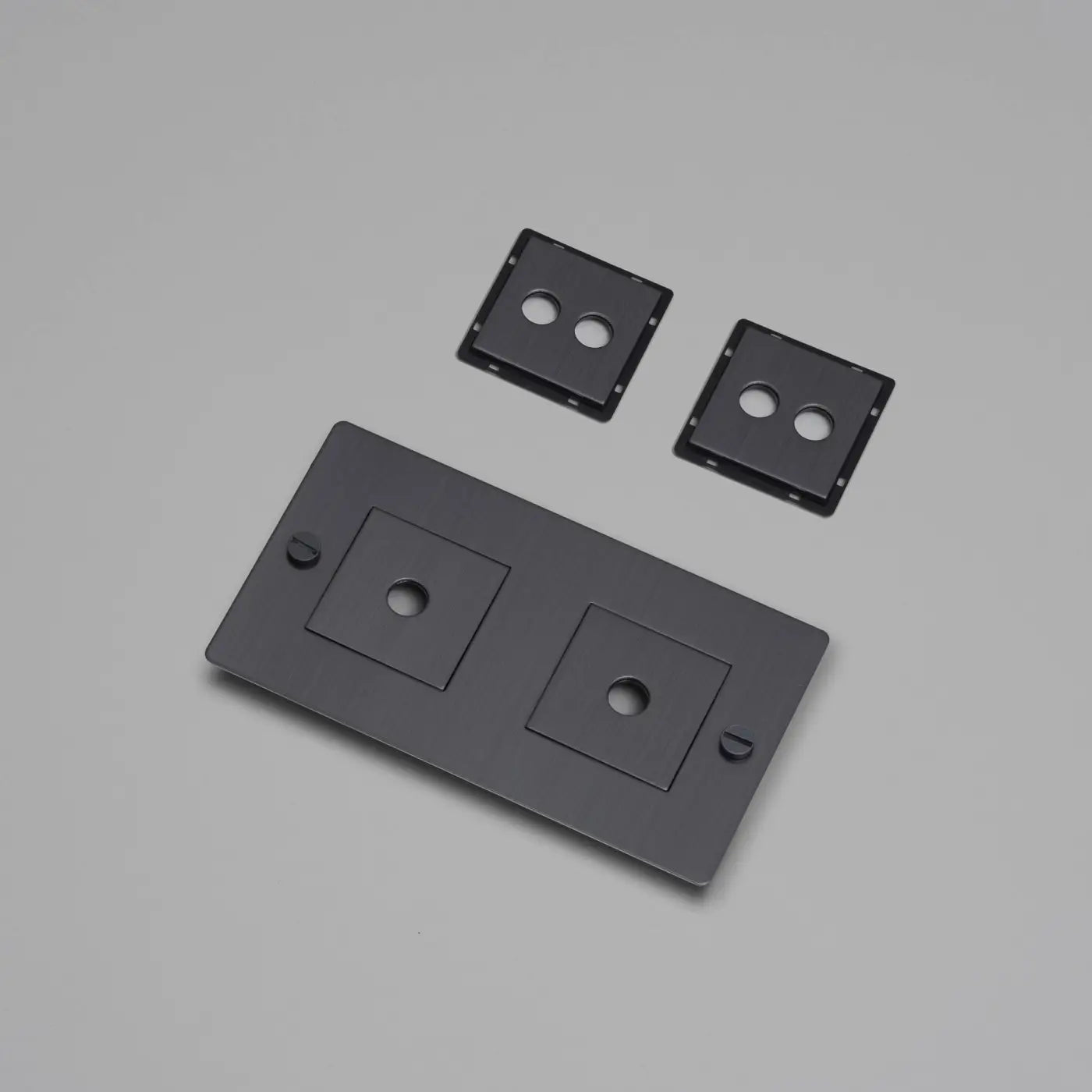

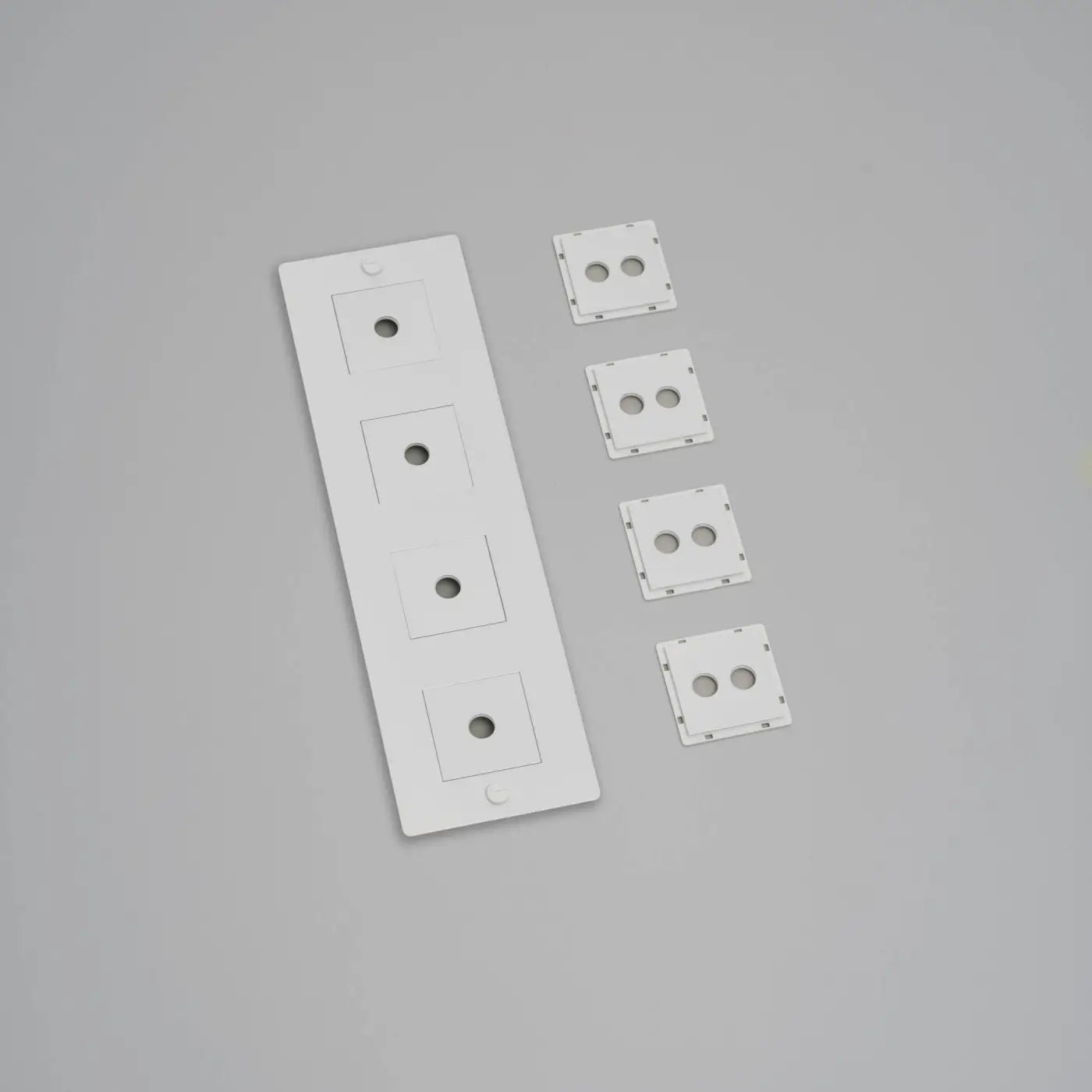

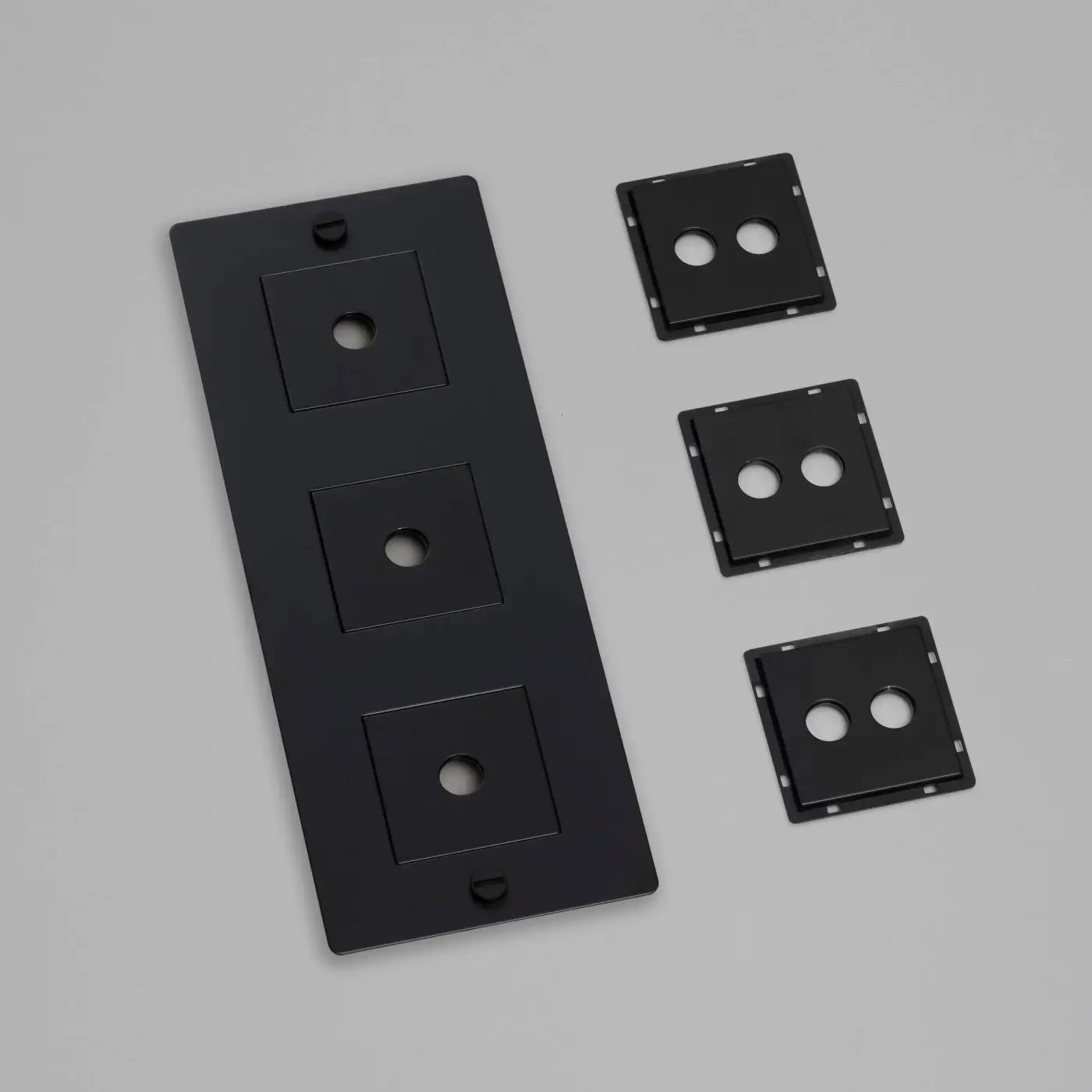

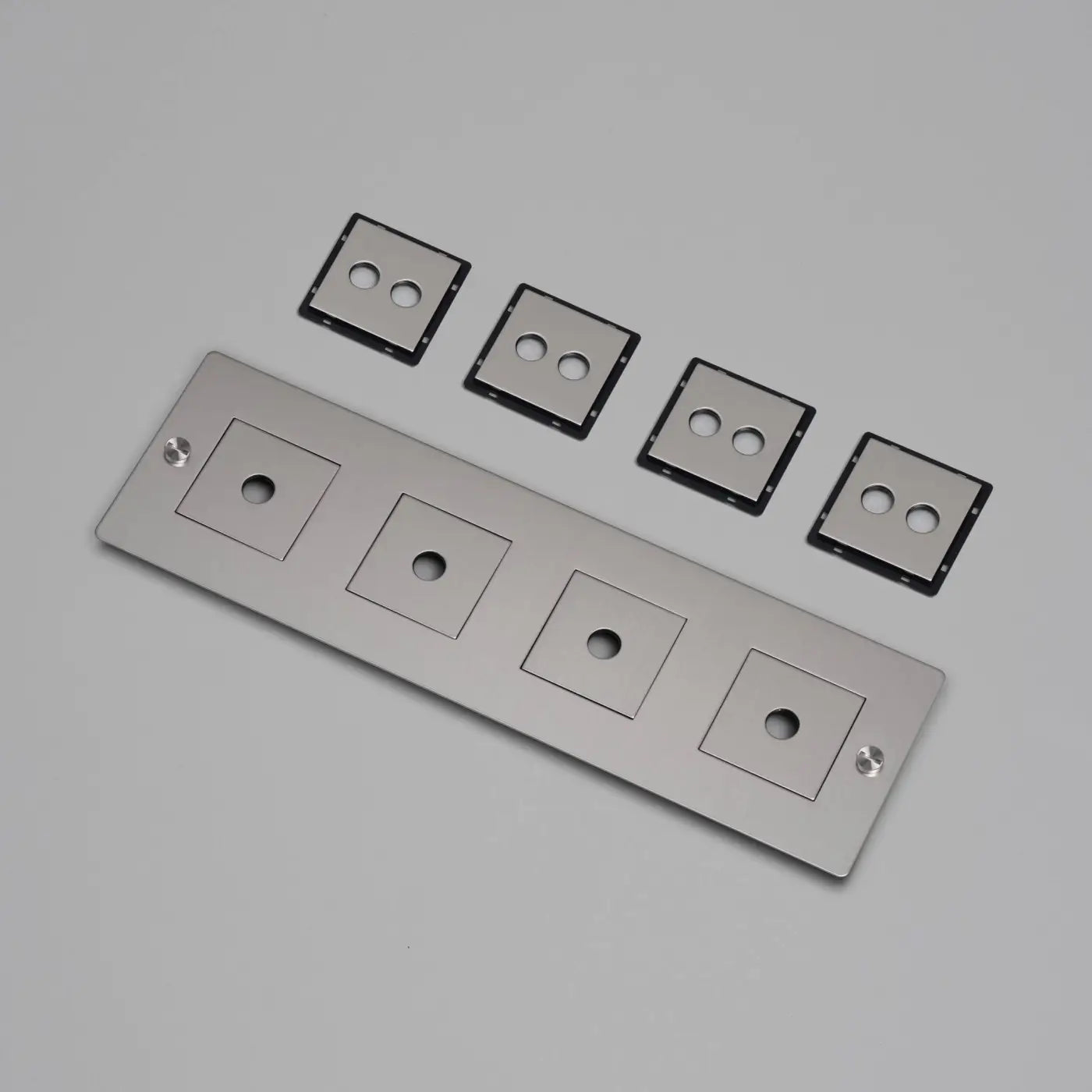

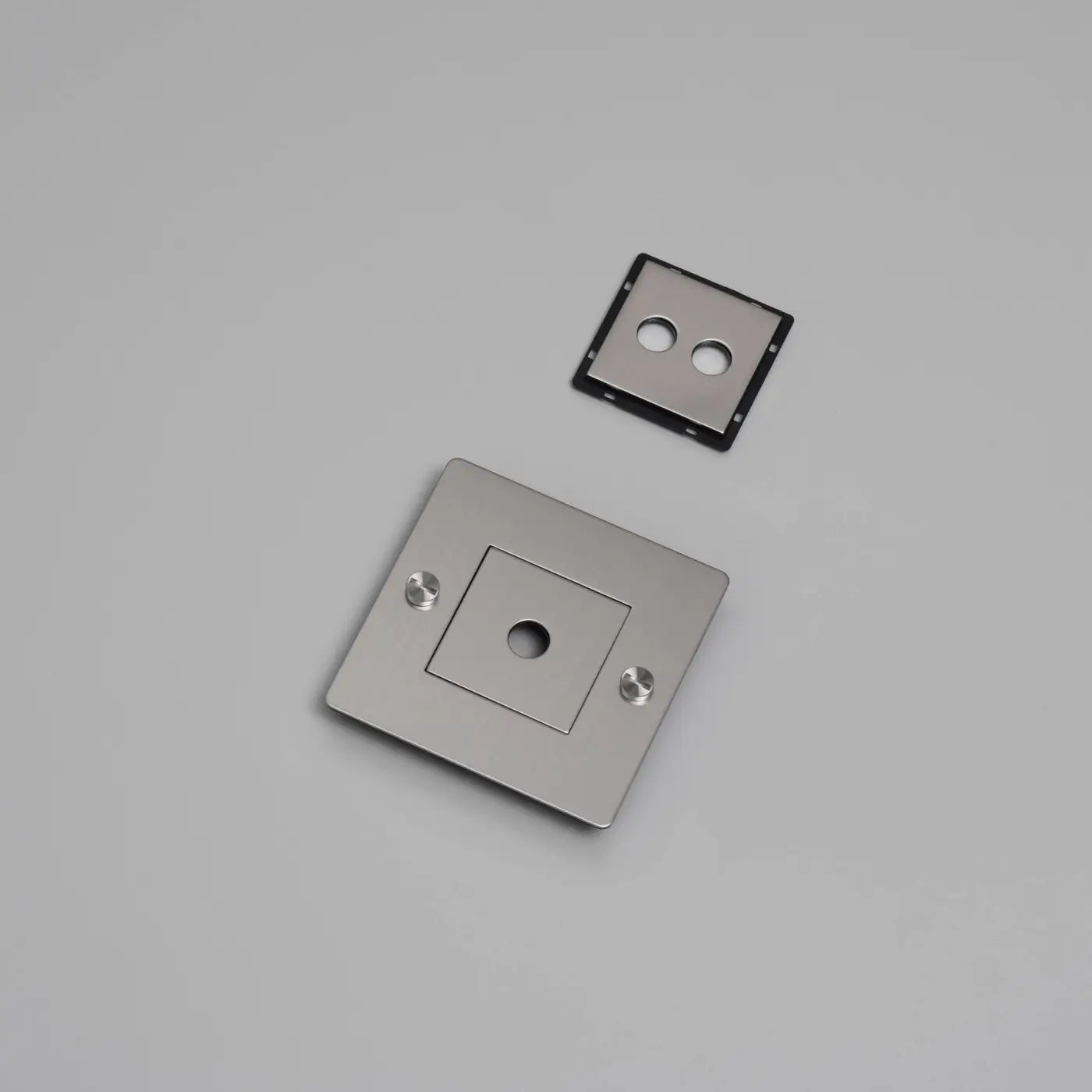

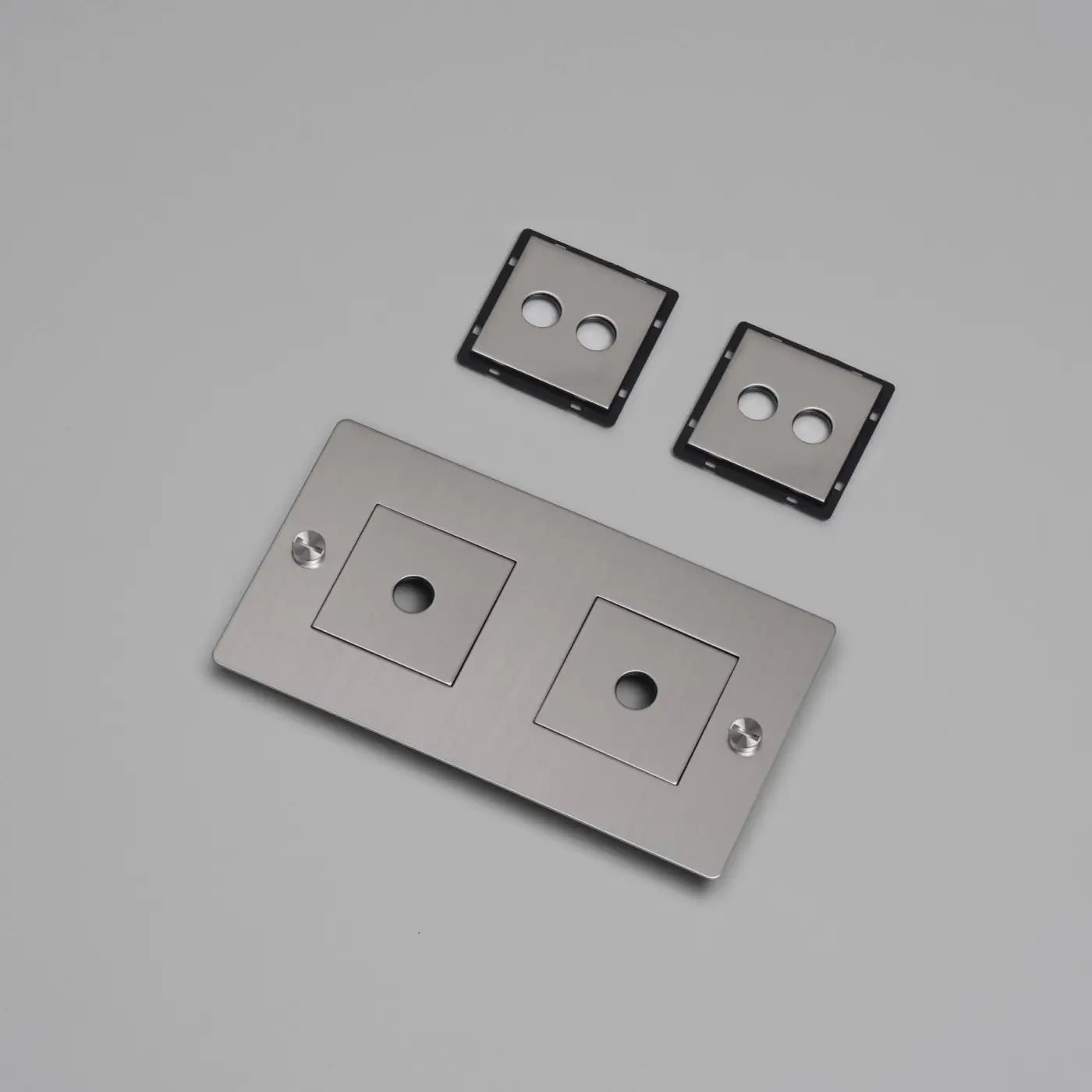

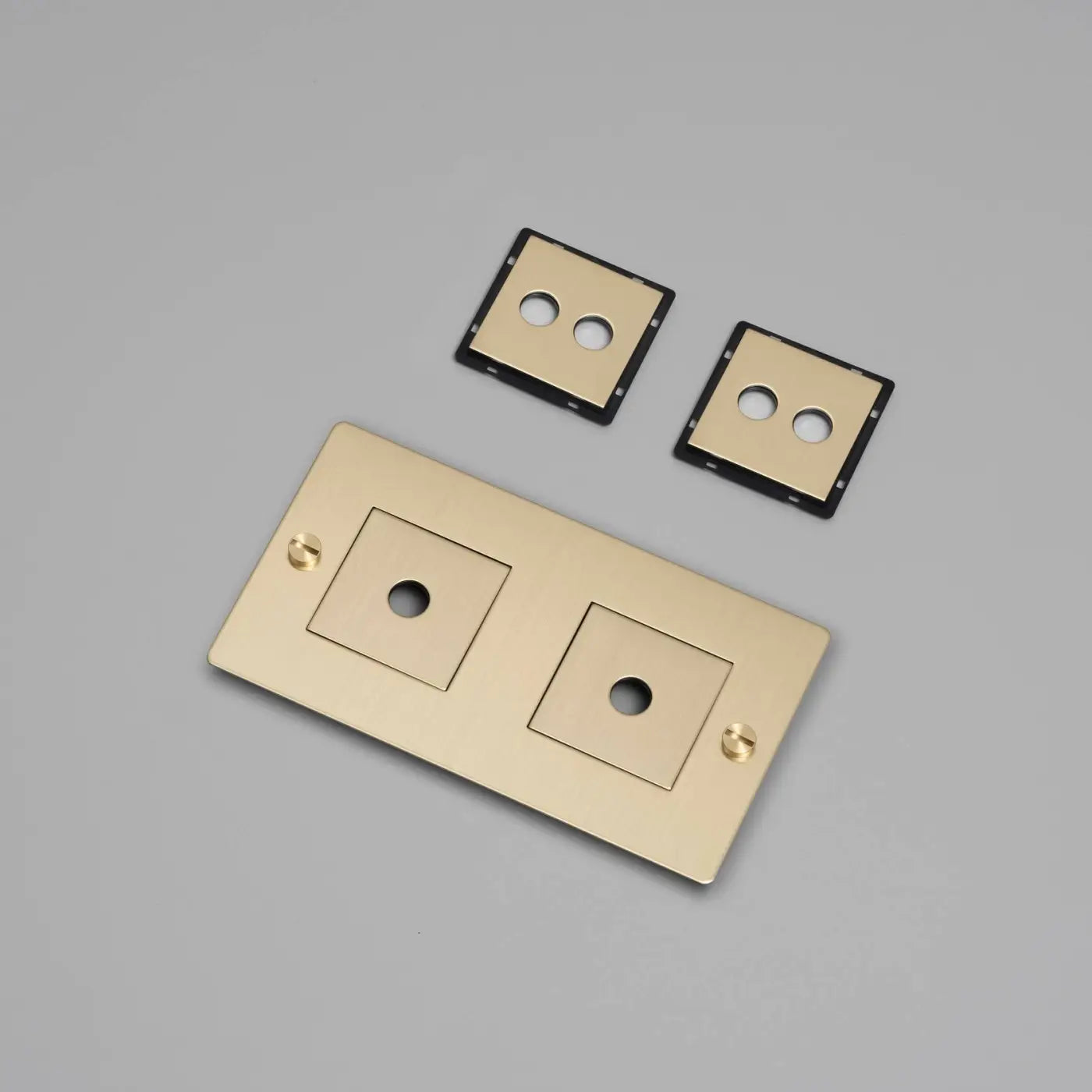

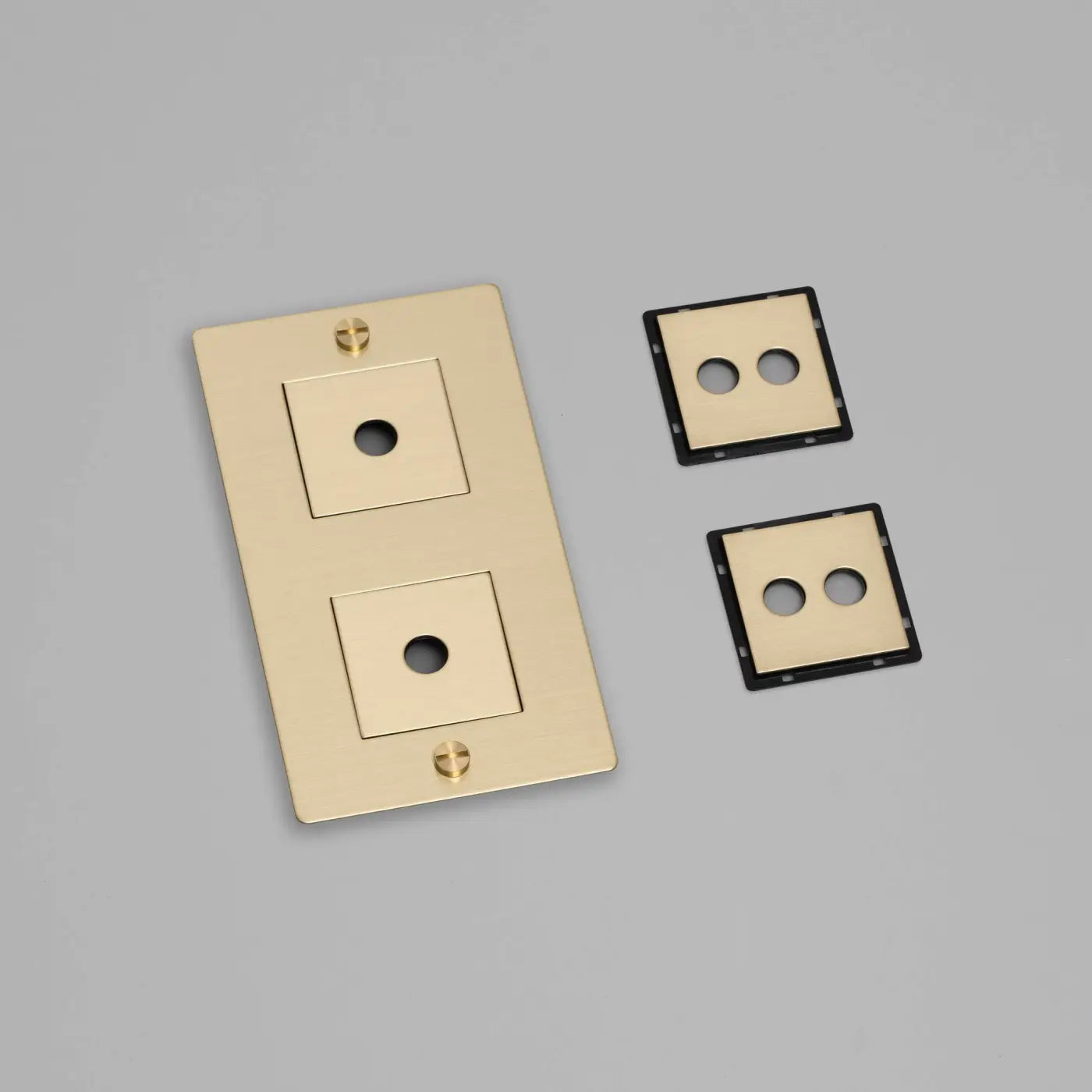

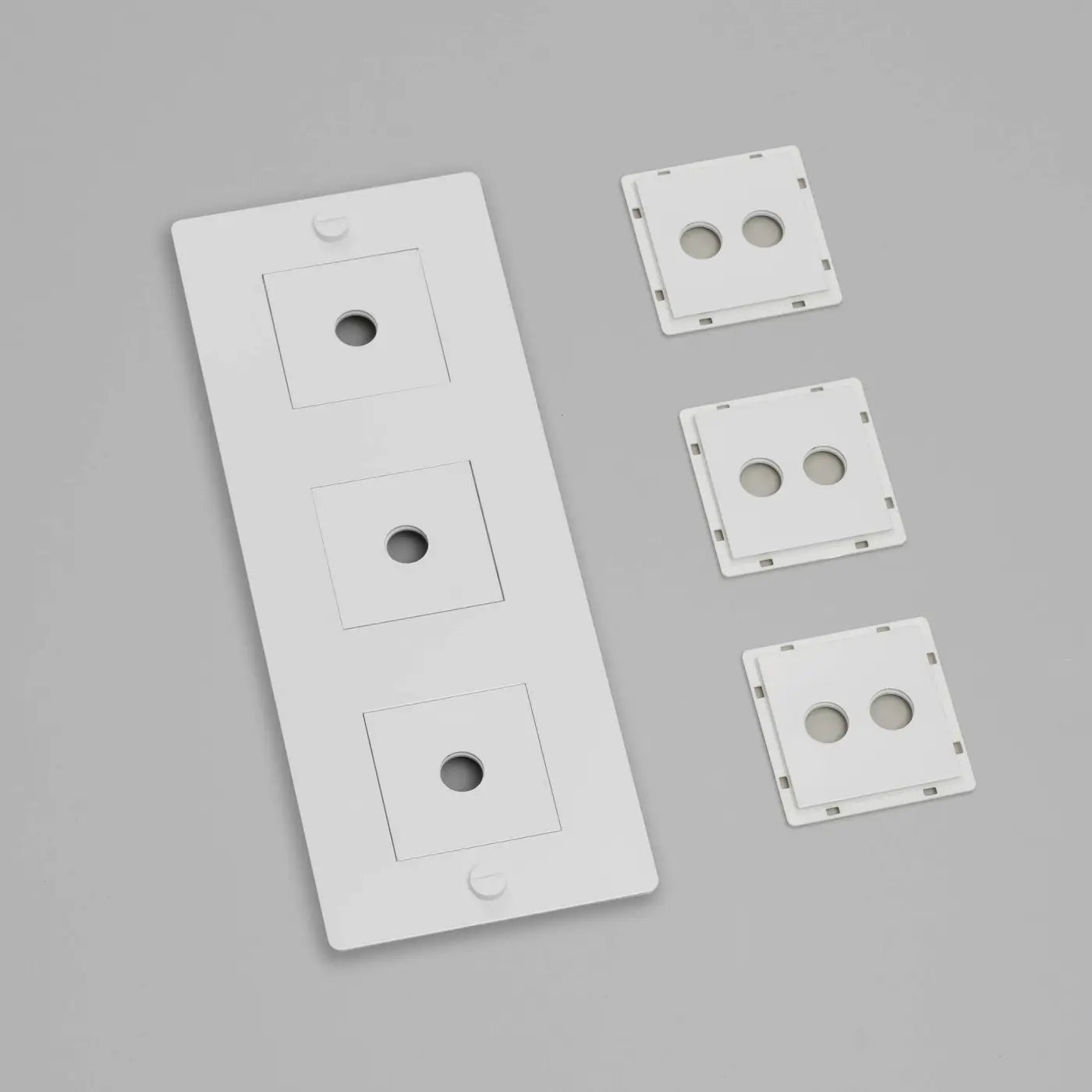

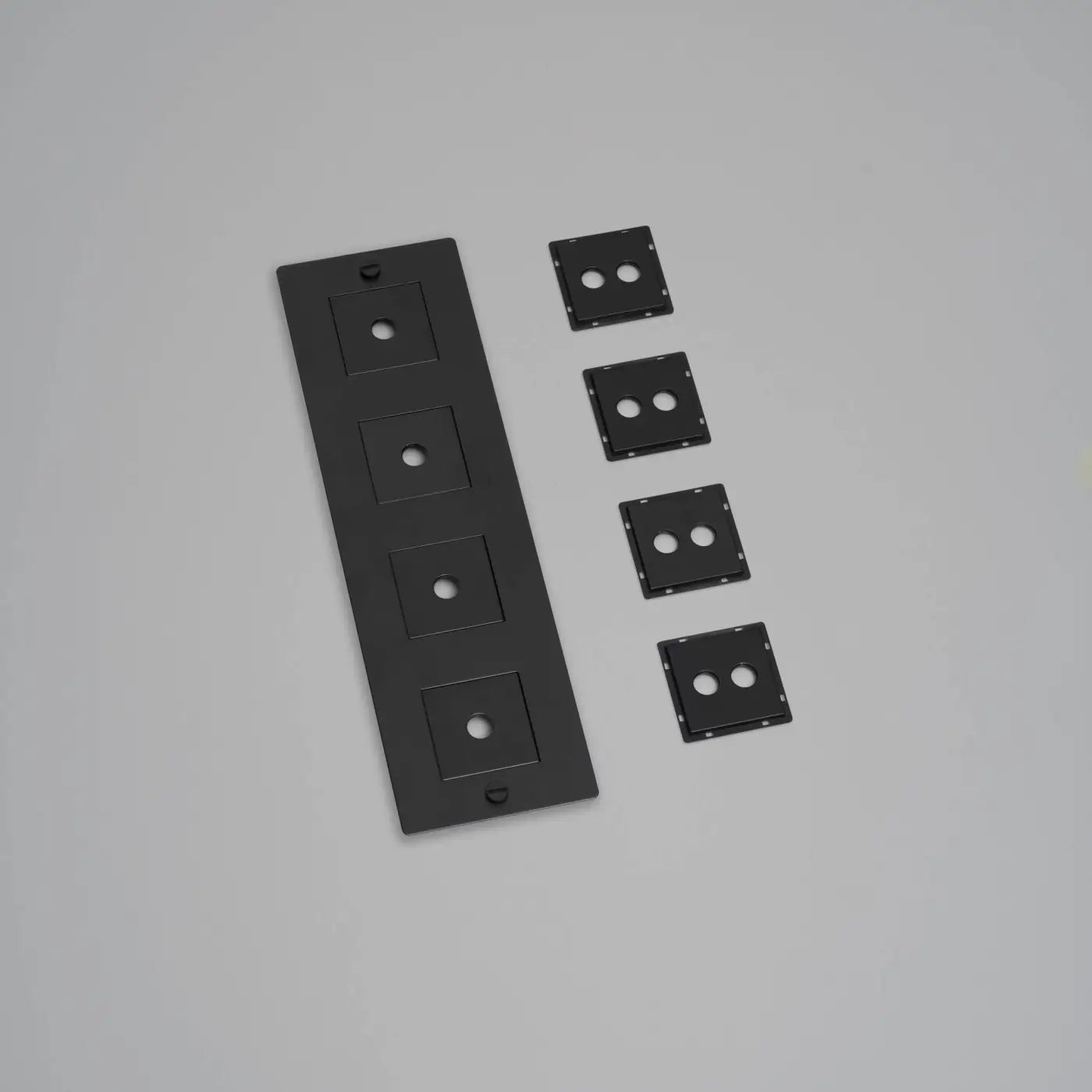

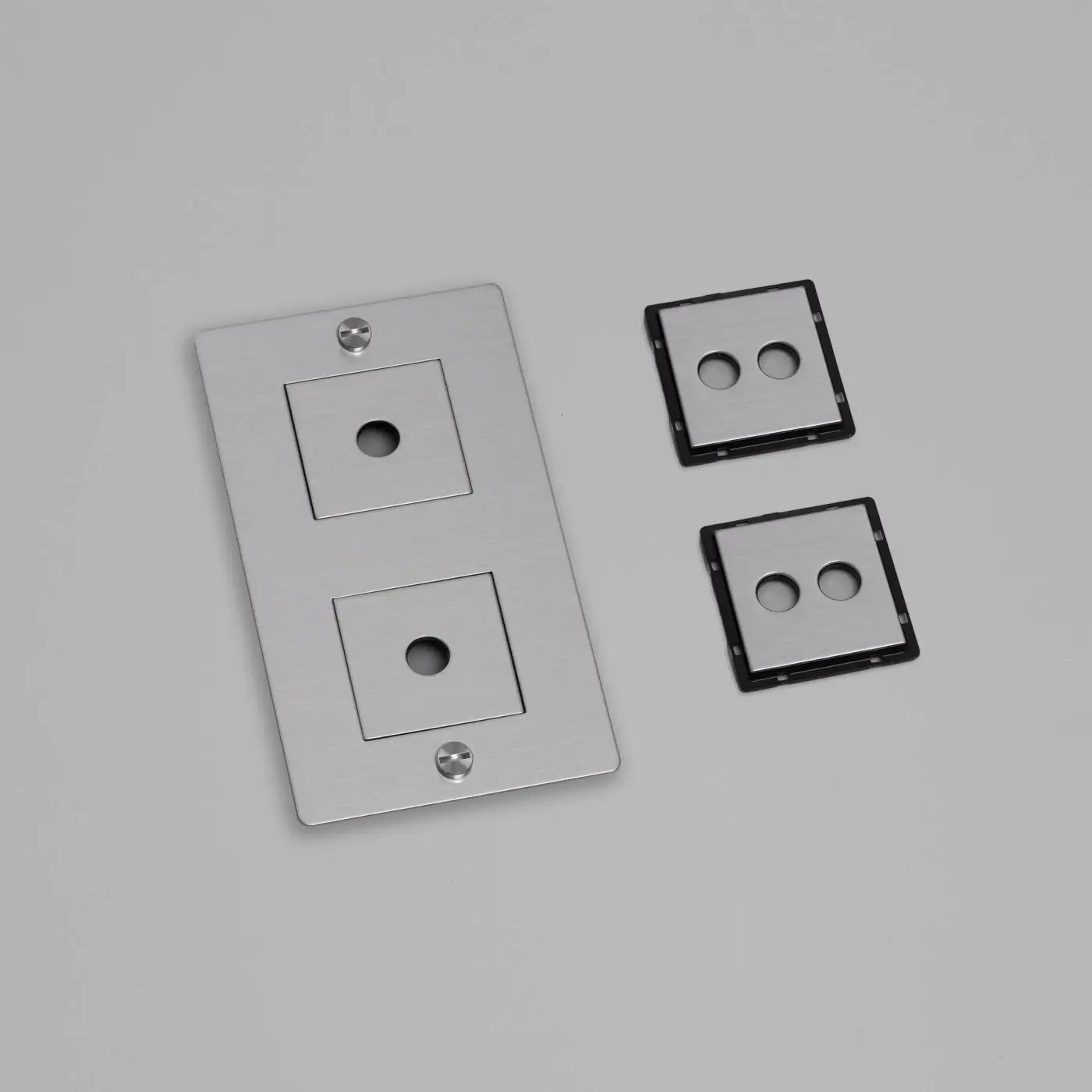

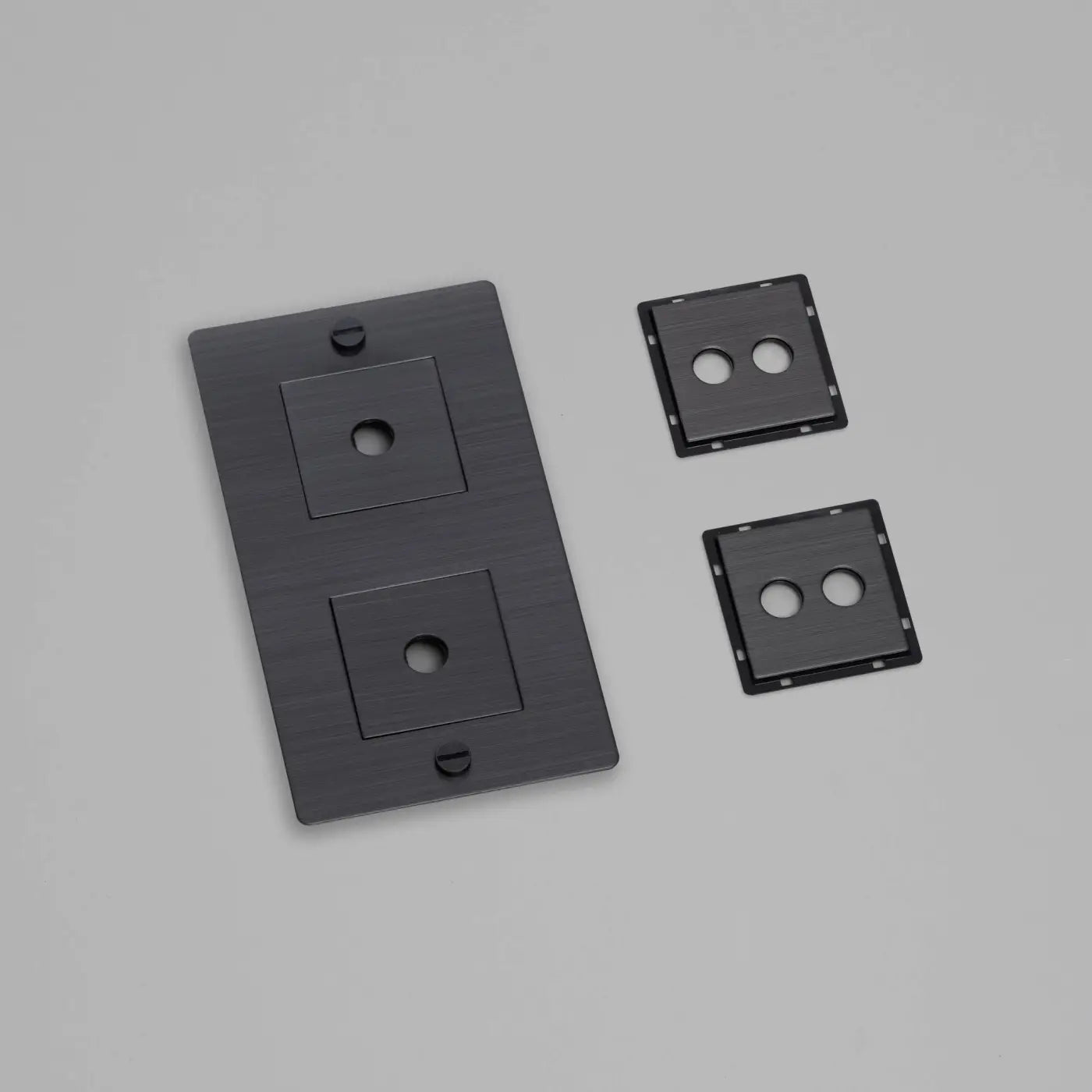

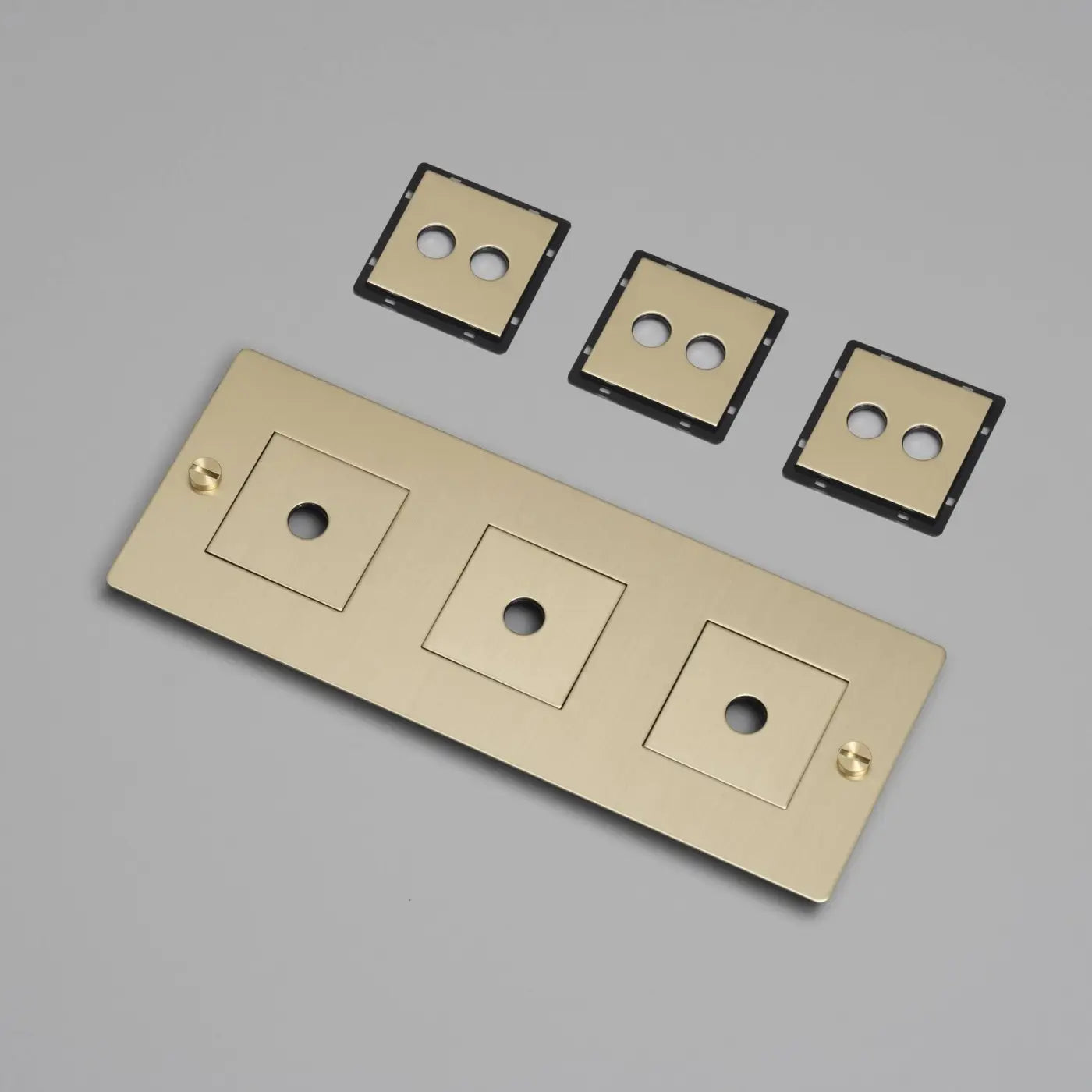

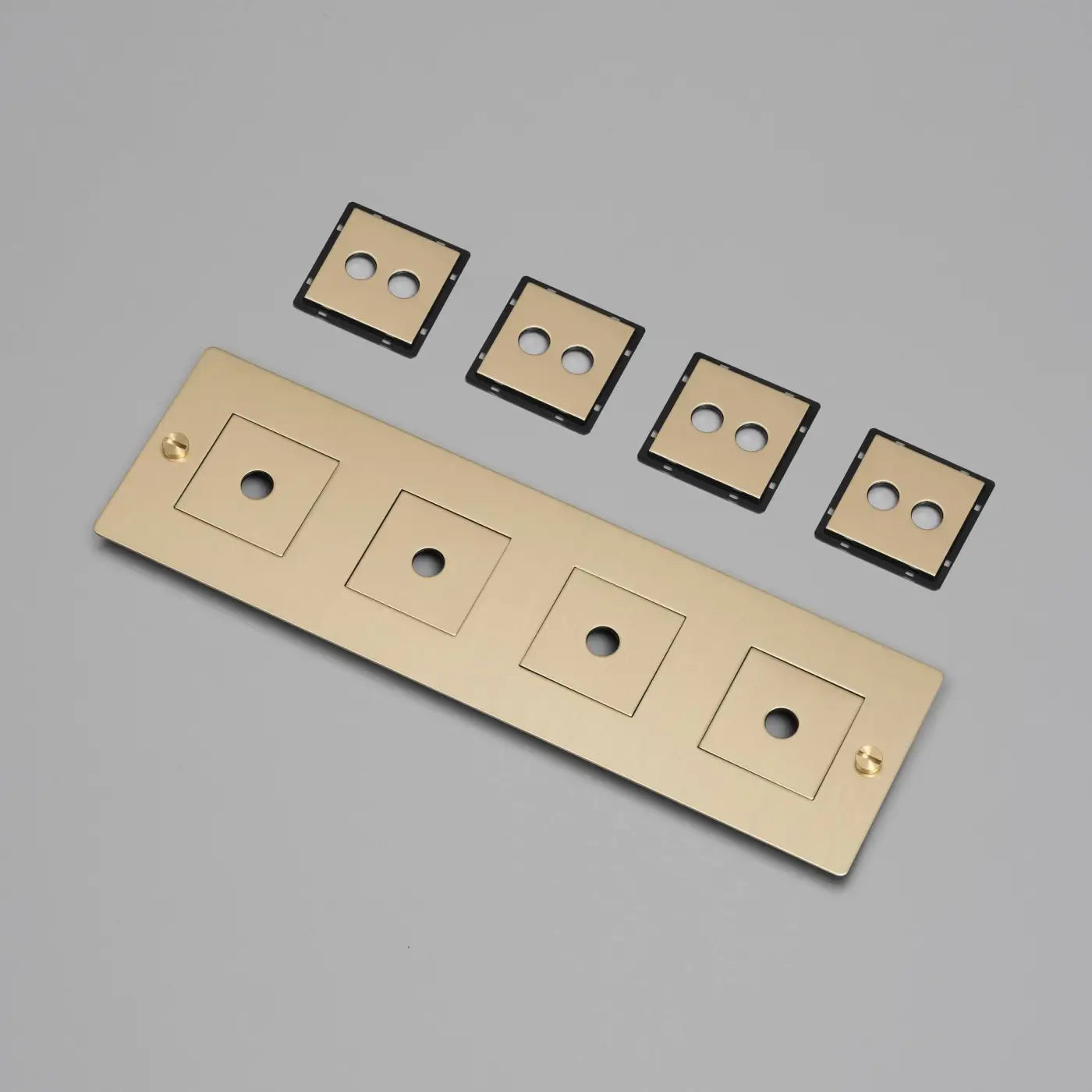

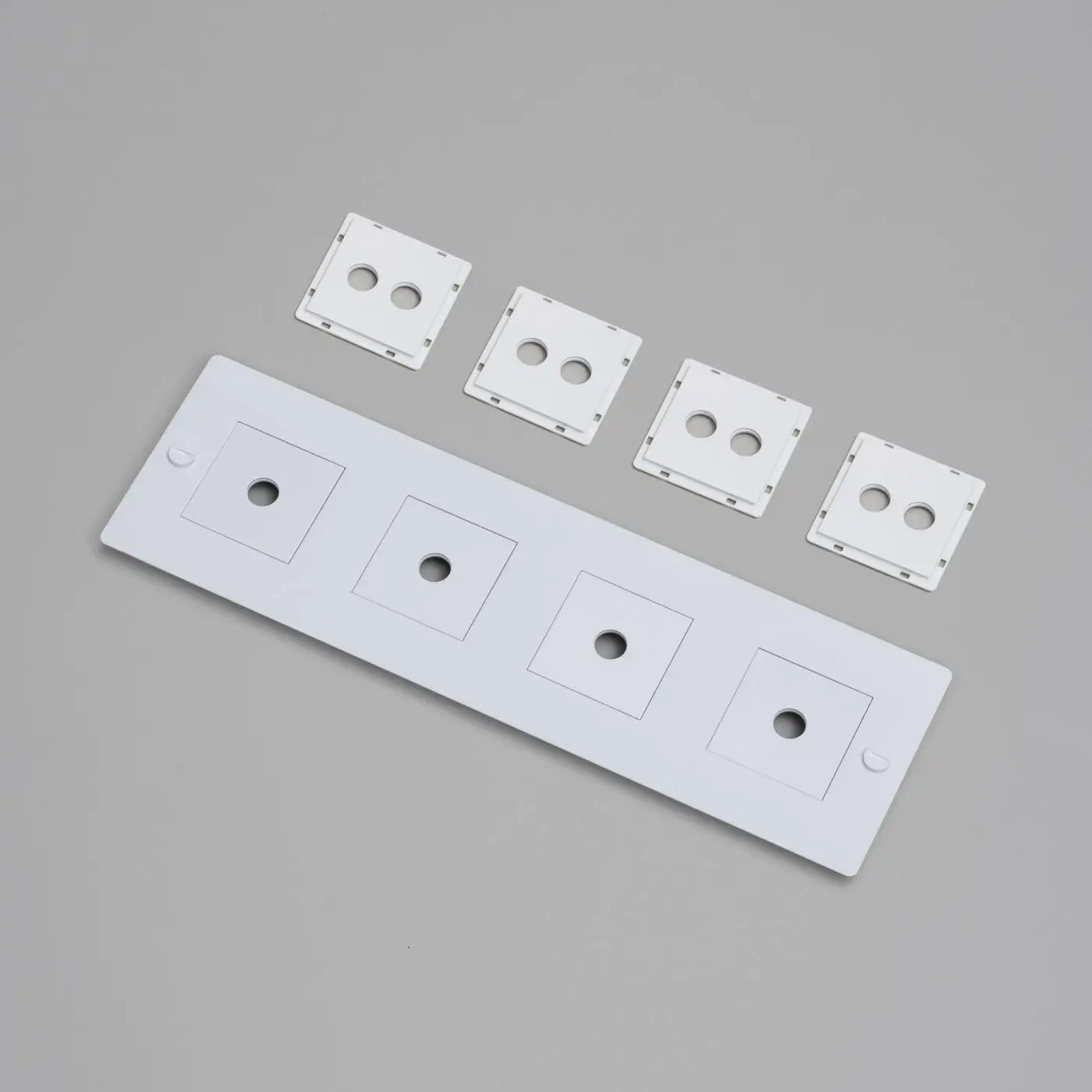

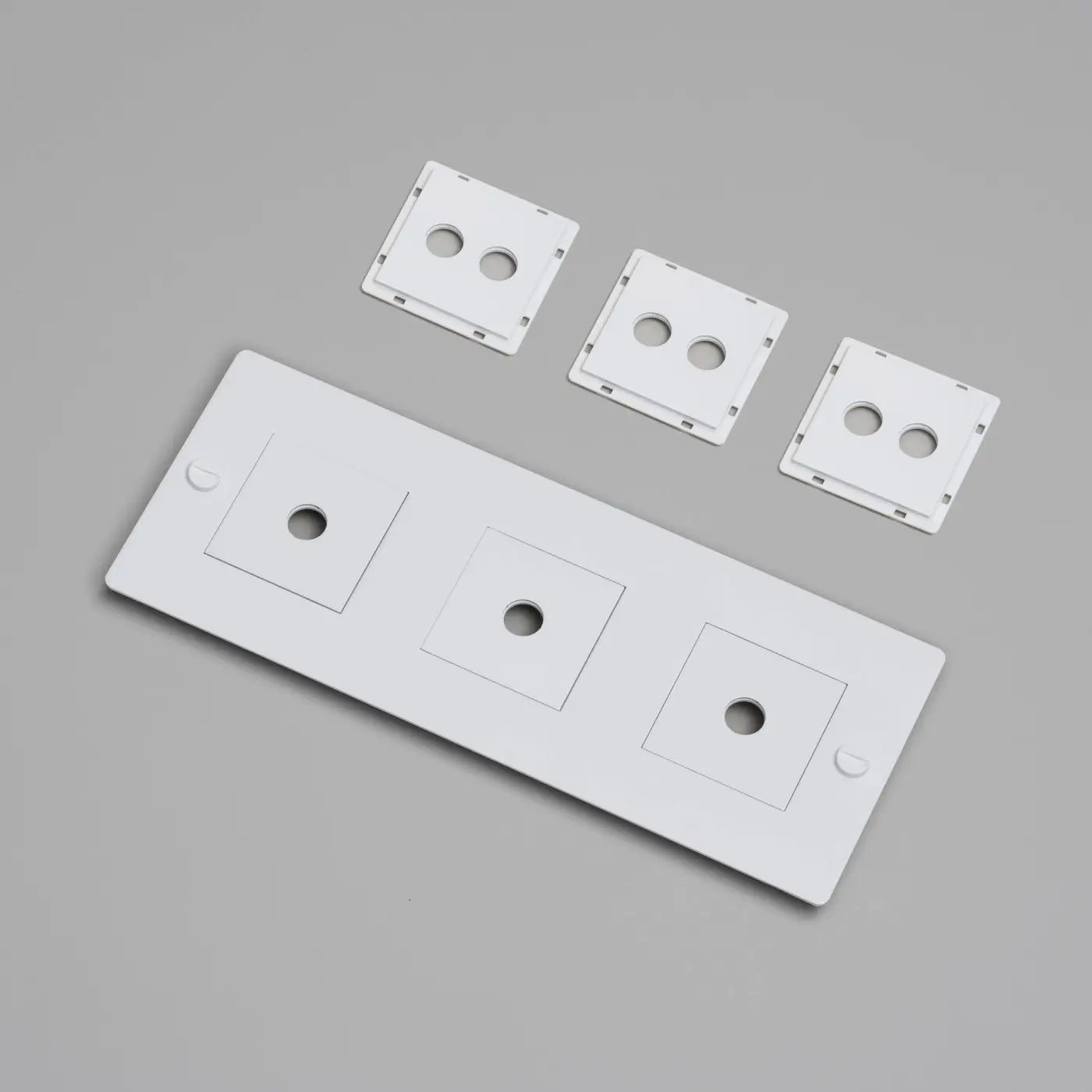

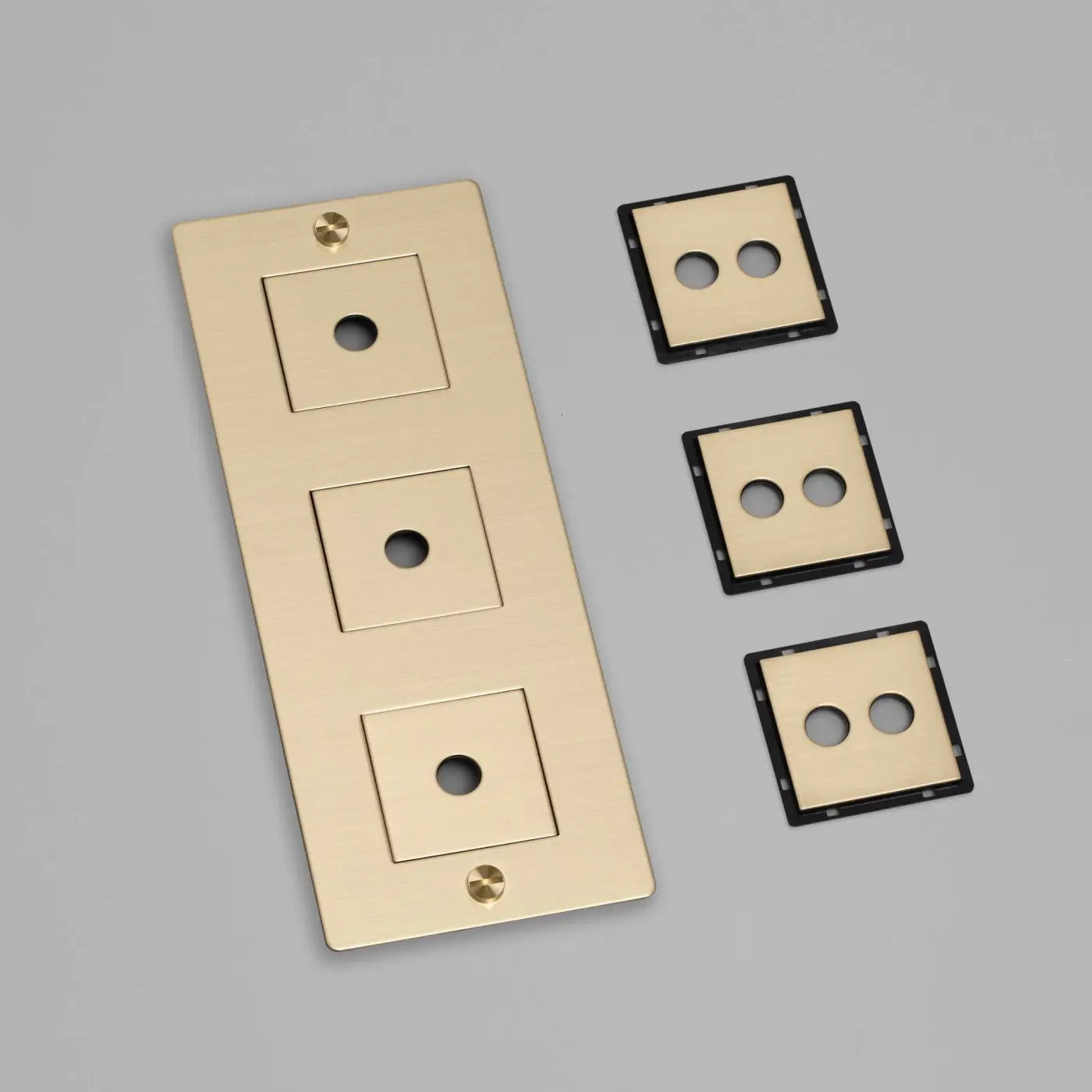

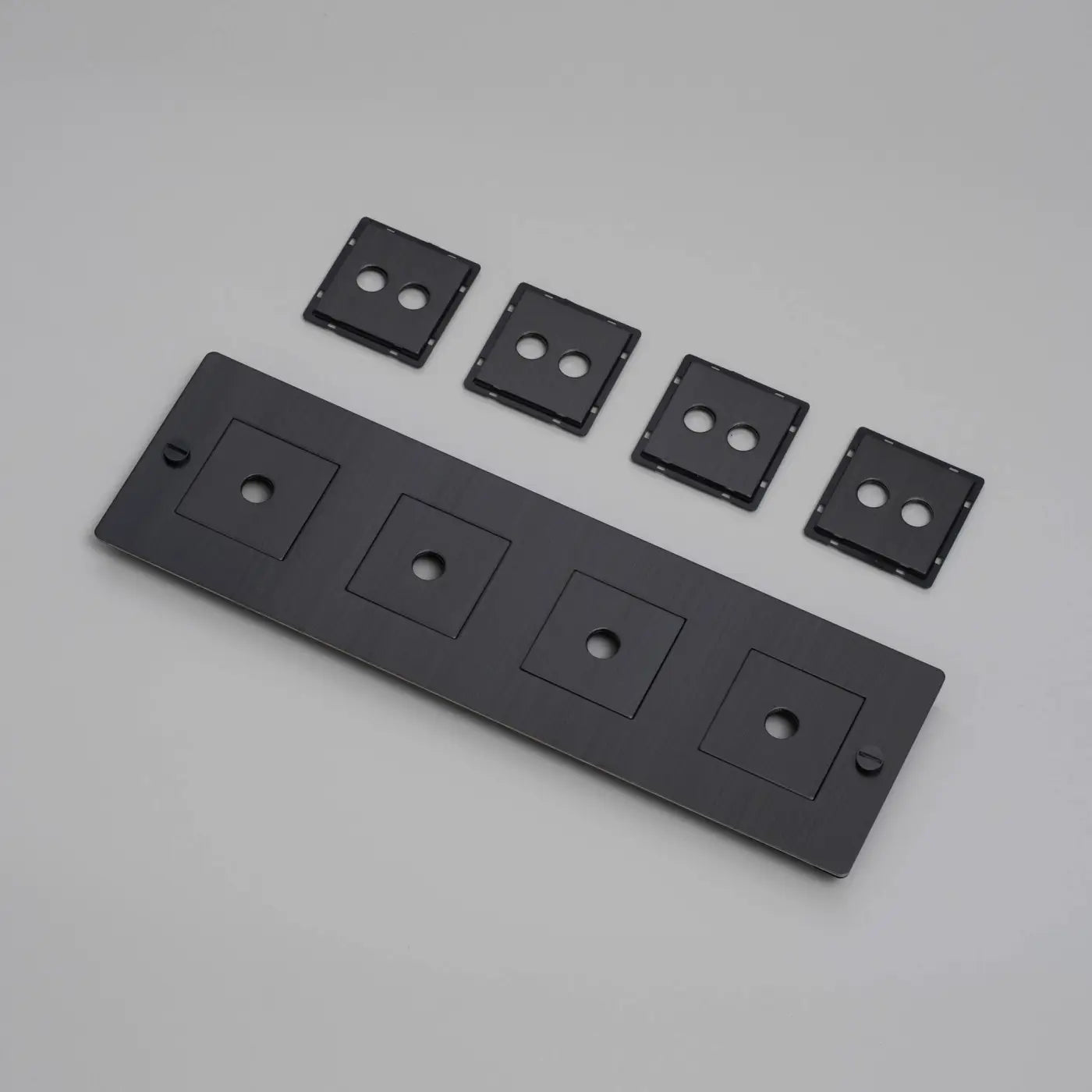

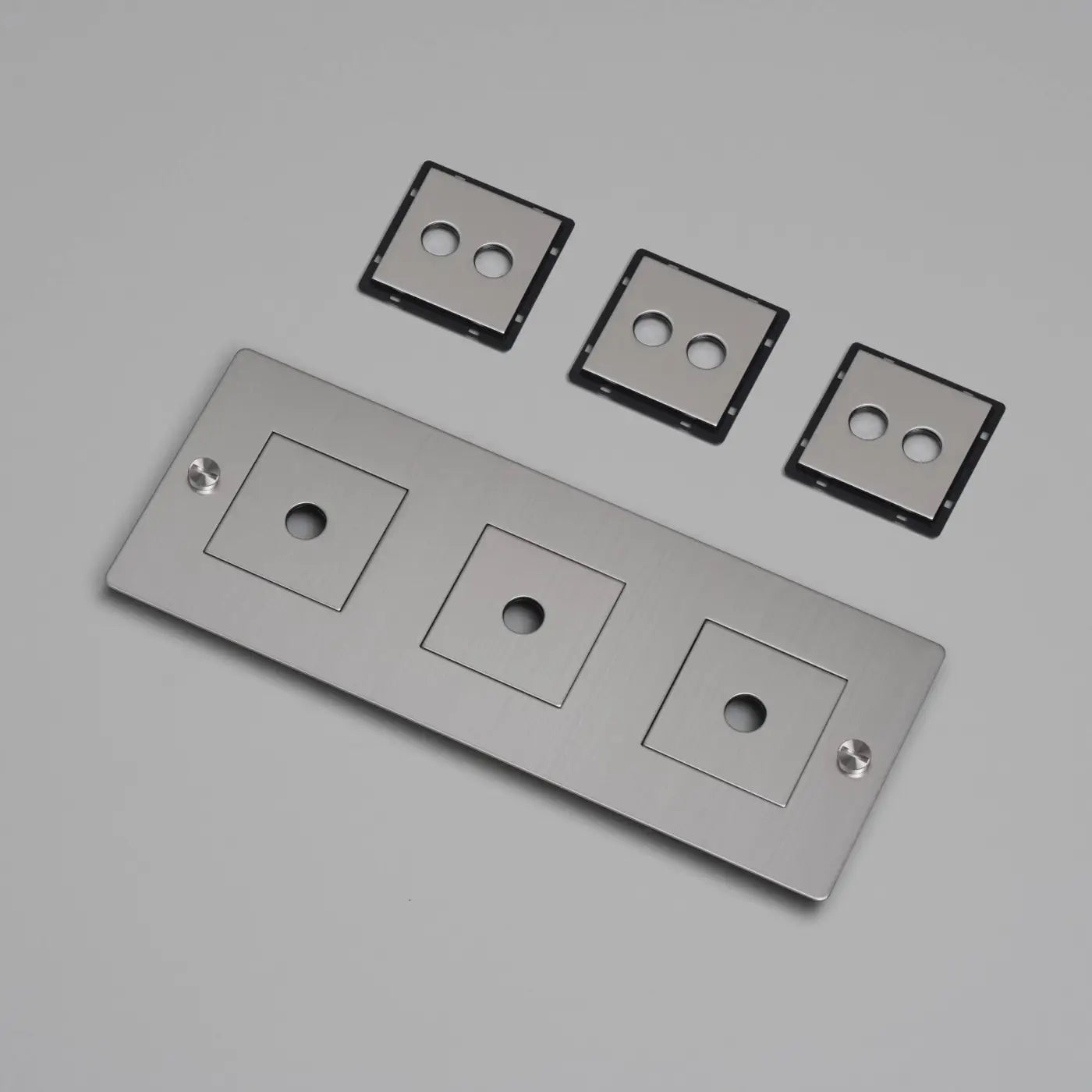

This switch plate comes with 1 single insert and 1 double insert per gang. They are what allow you to fit the brand's toggles and dimmers, in addition to sockets and data modules. Each gang therefore takes up to 2 toggle switches, or 1 dimmer, or 1 module in 45 mm format.

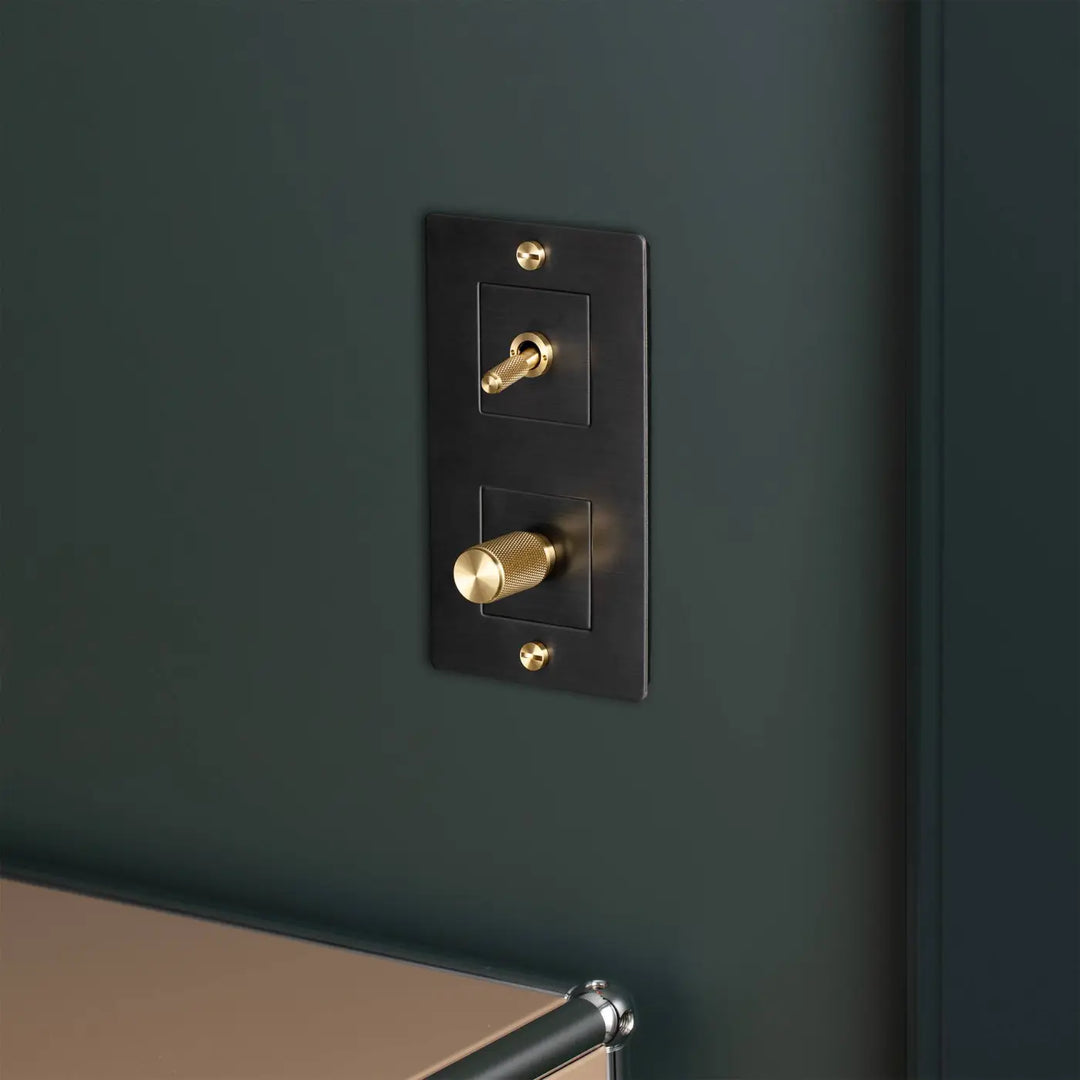

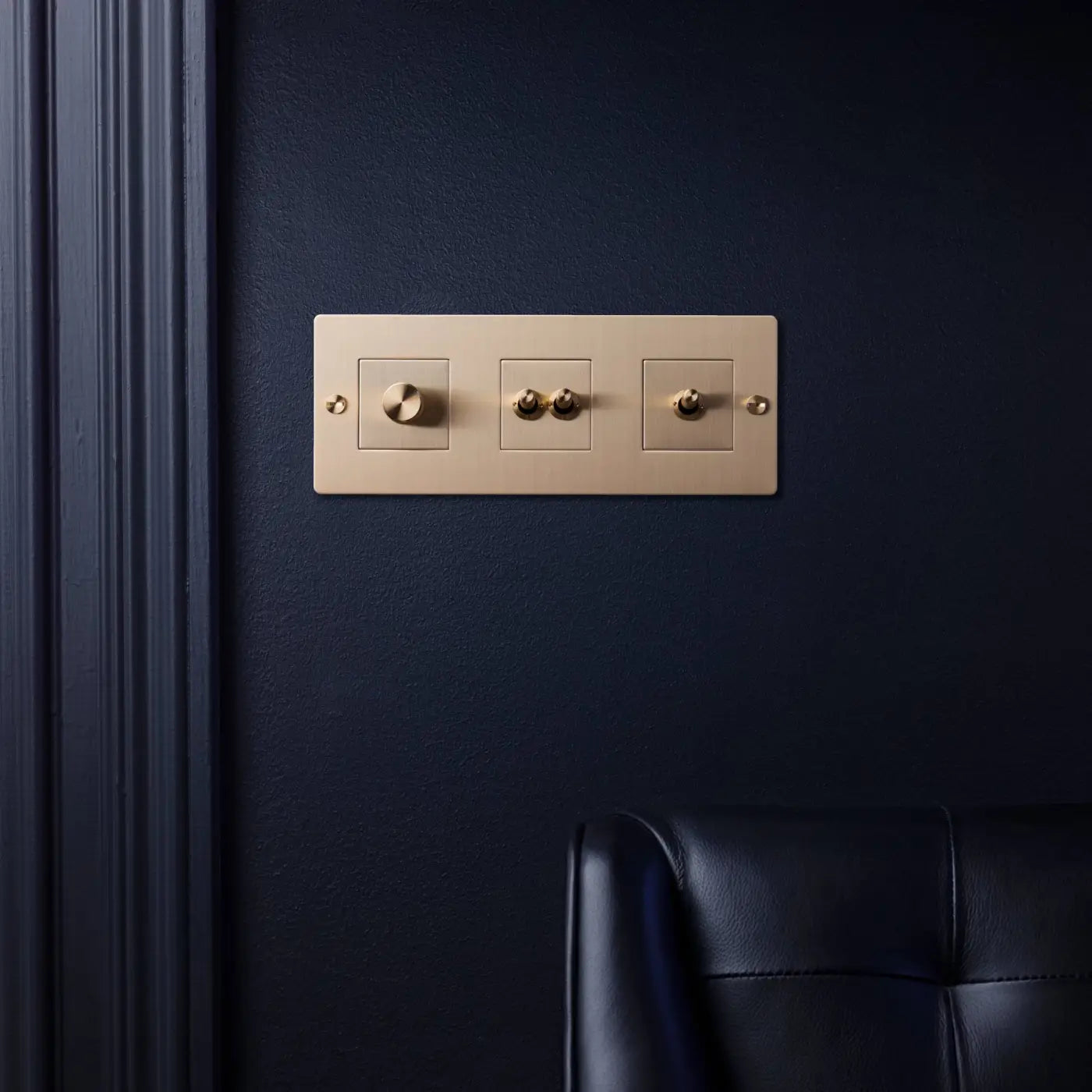

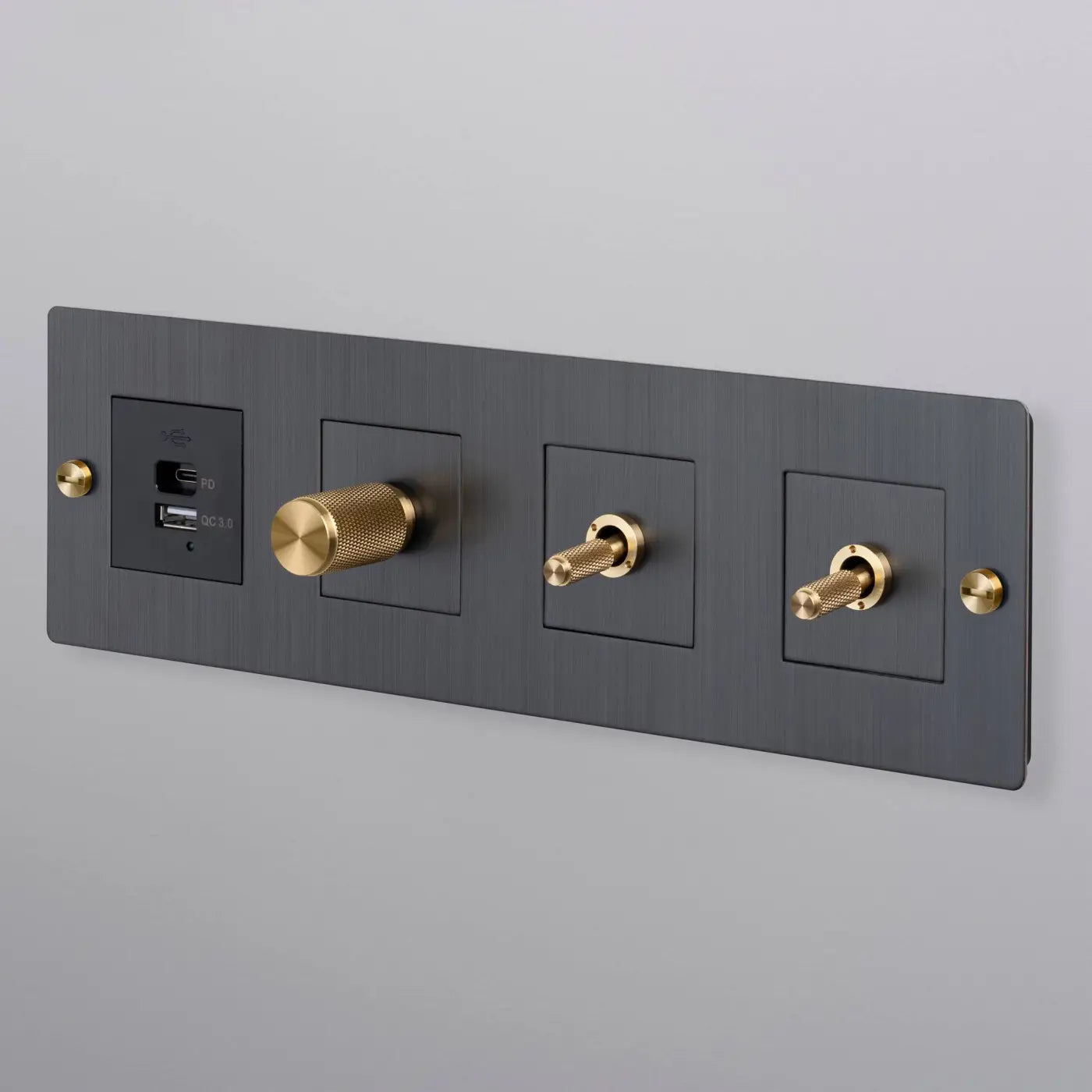

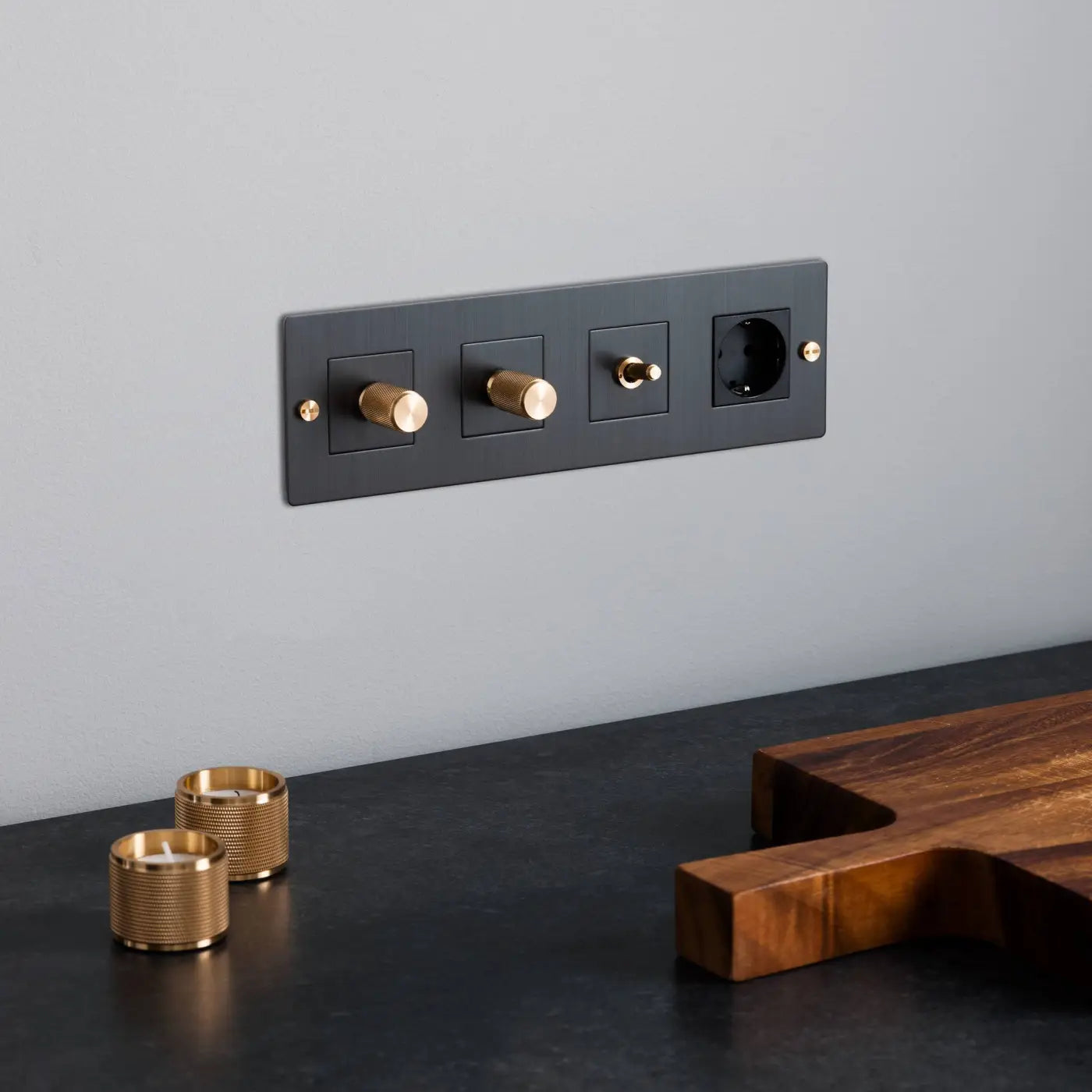

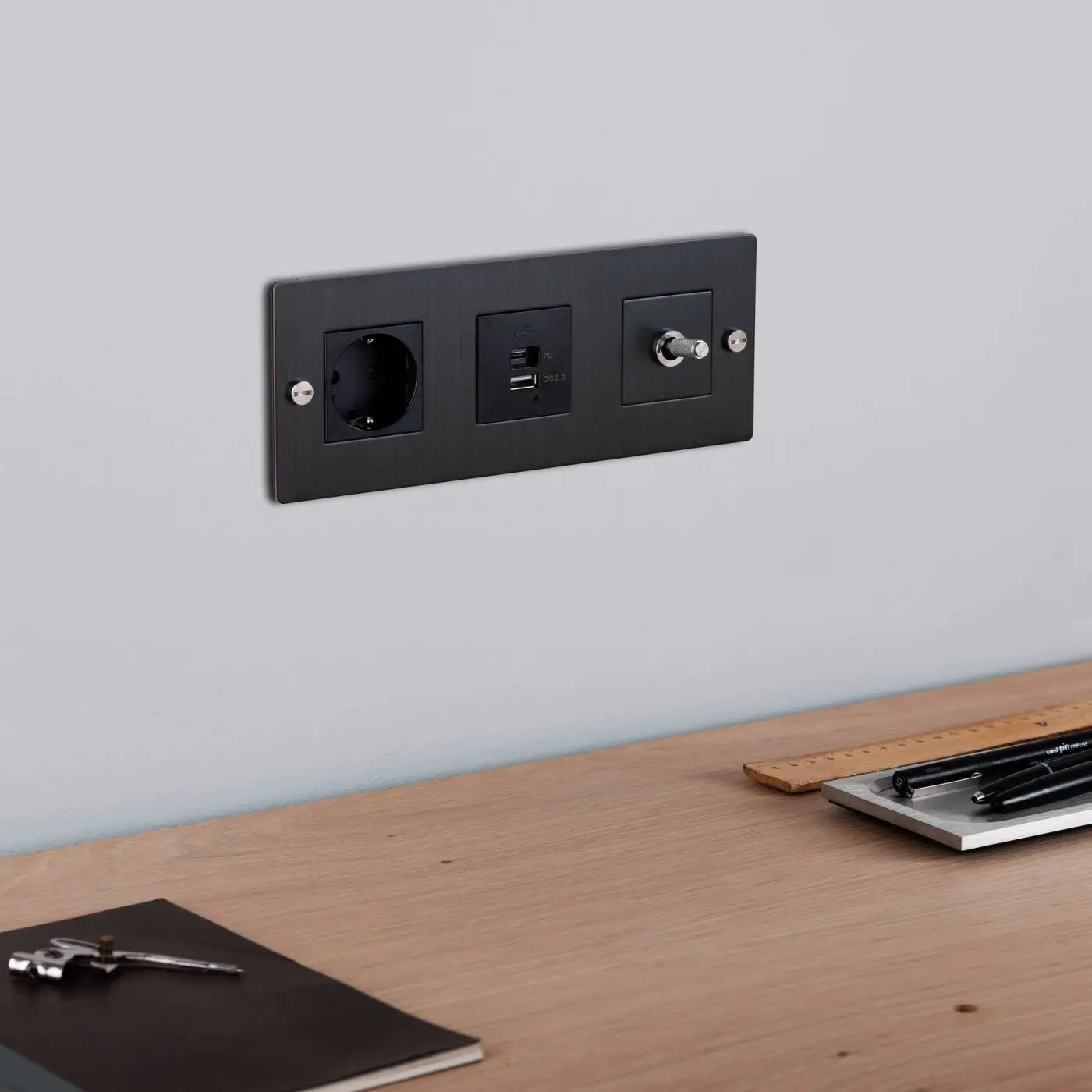

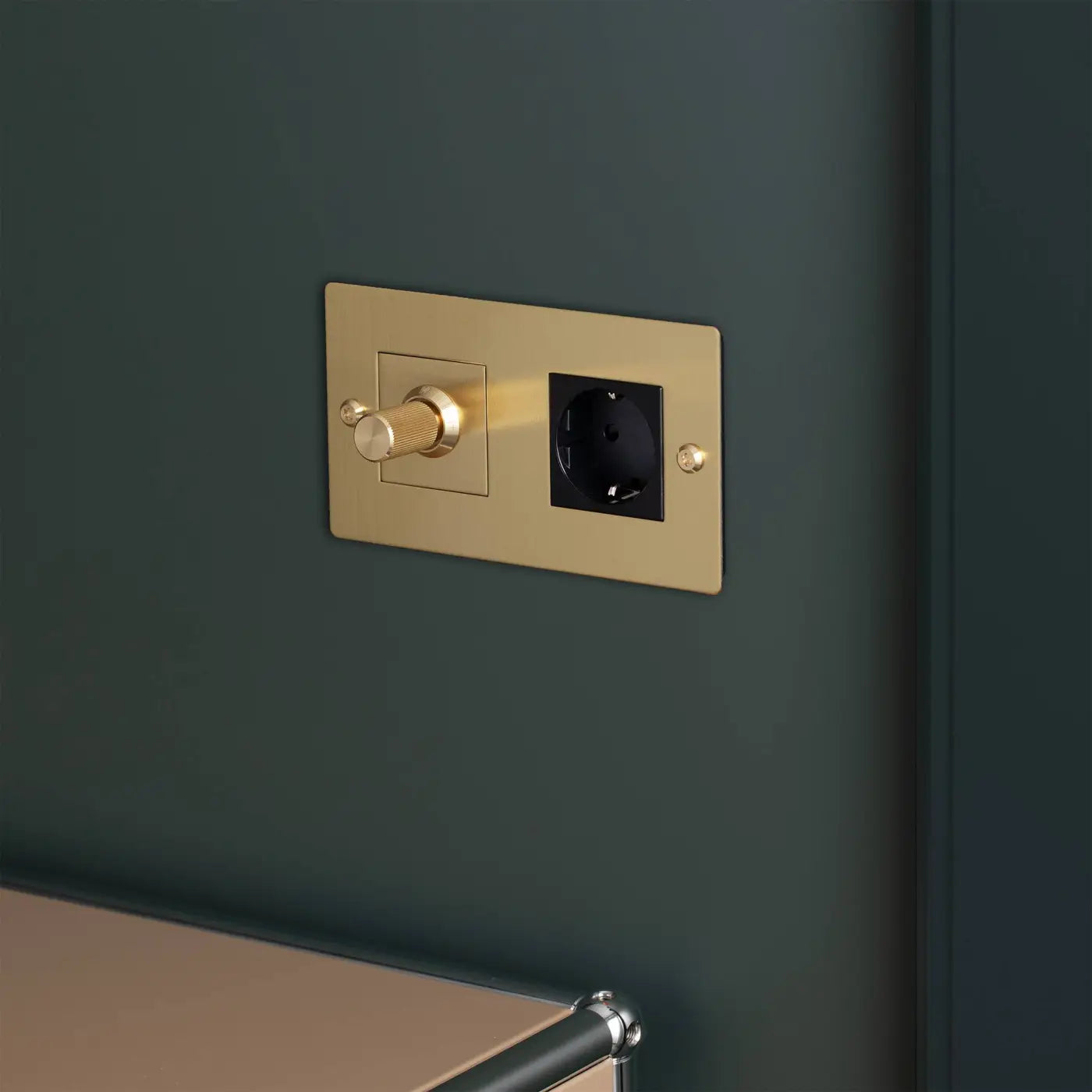

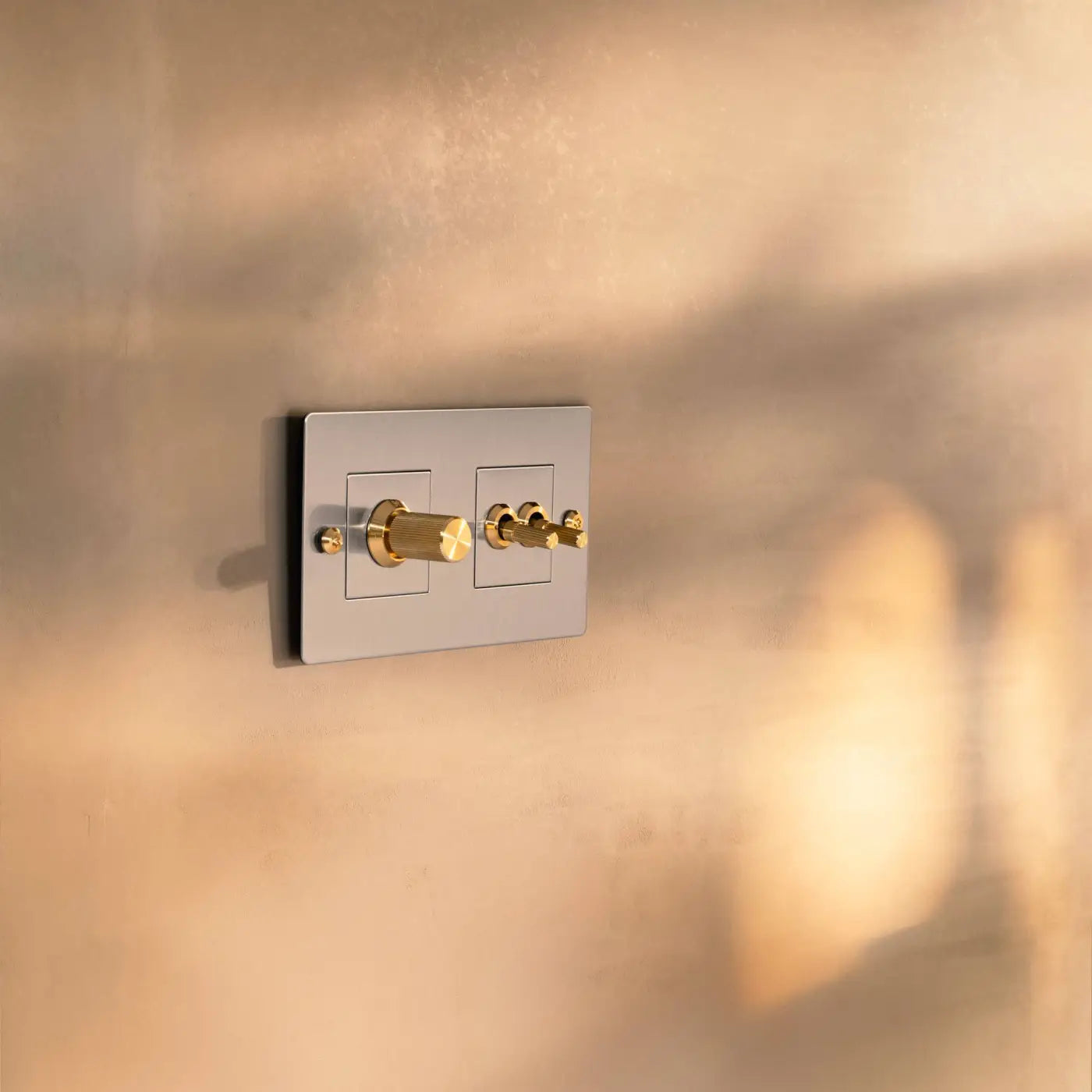

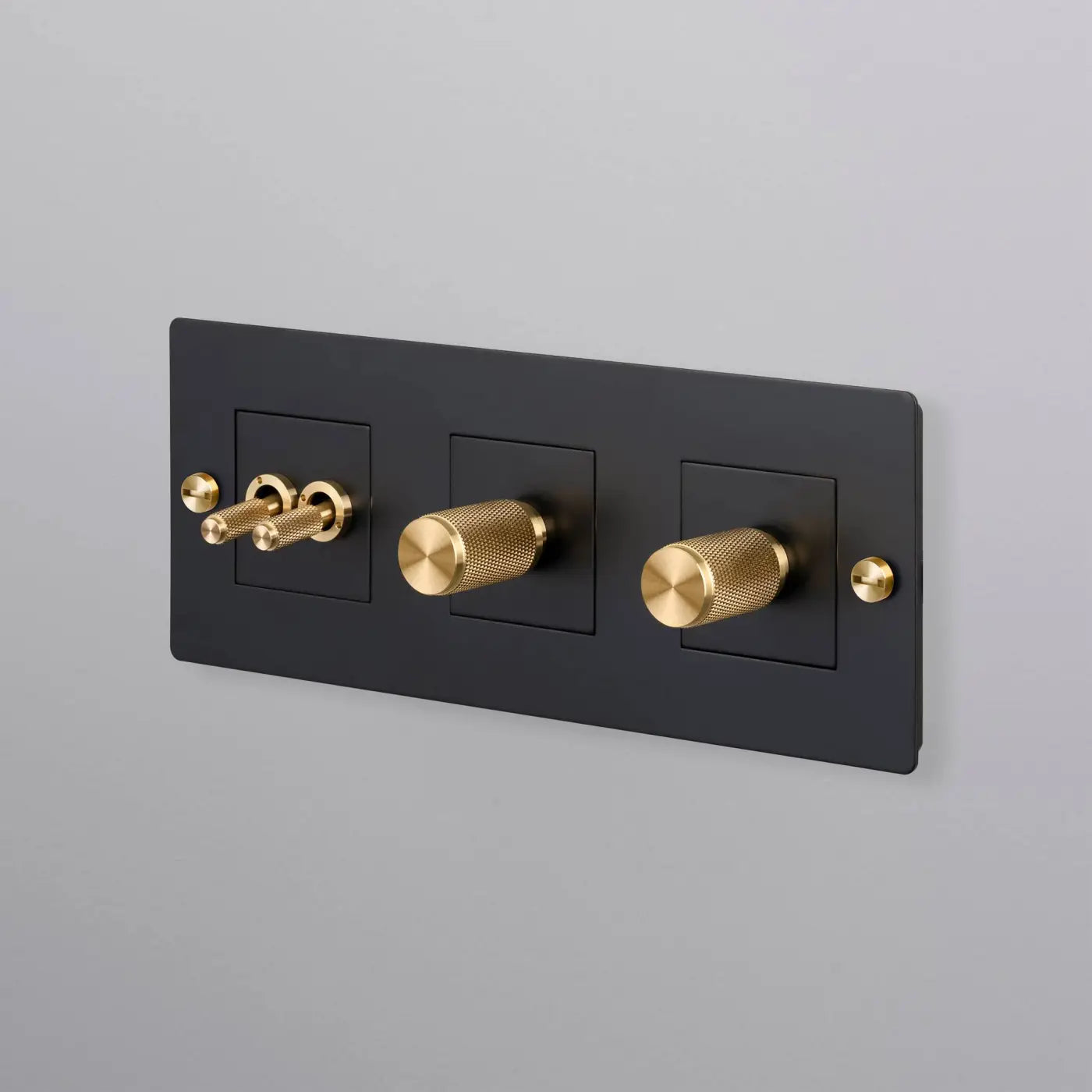

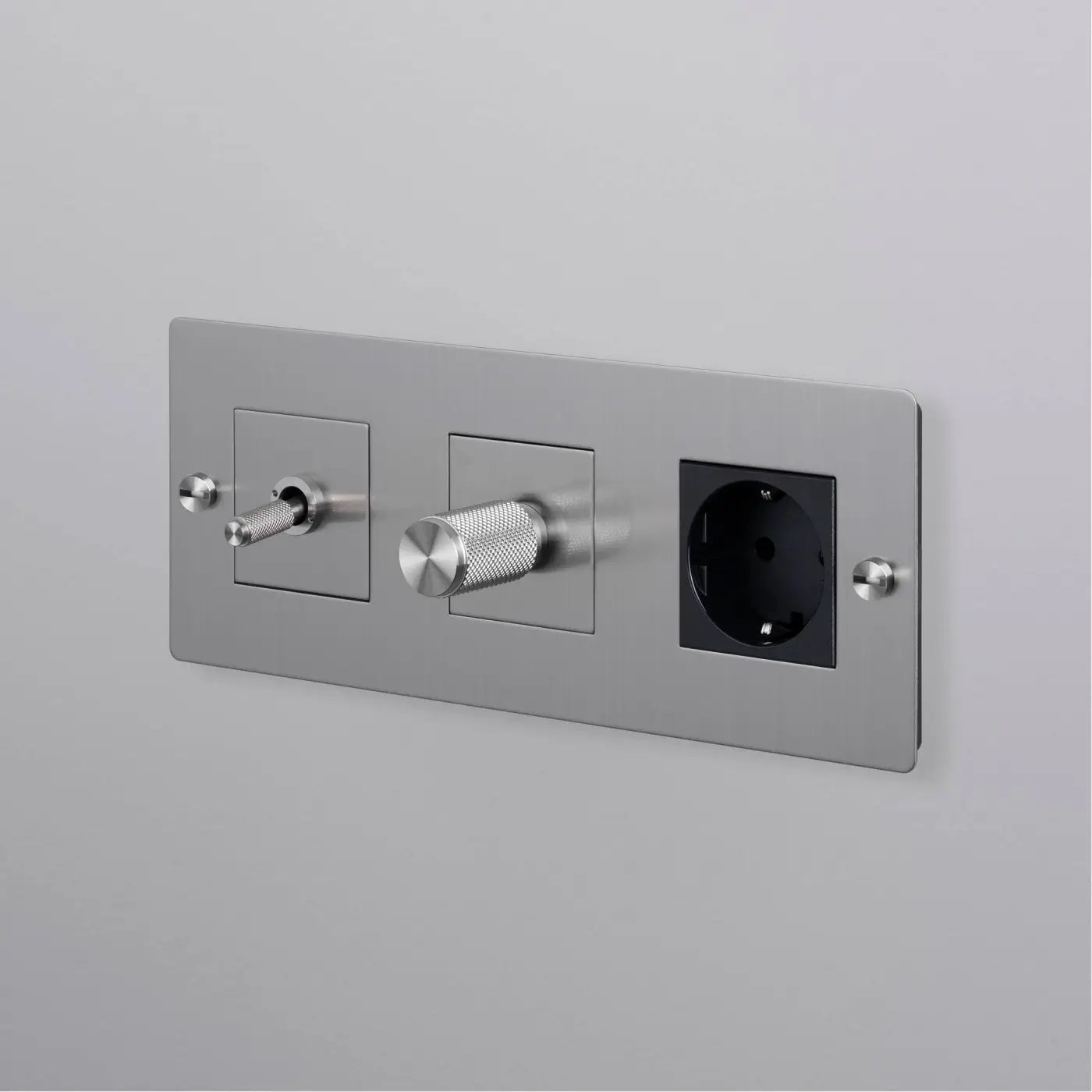

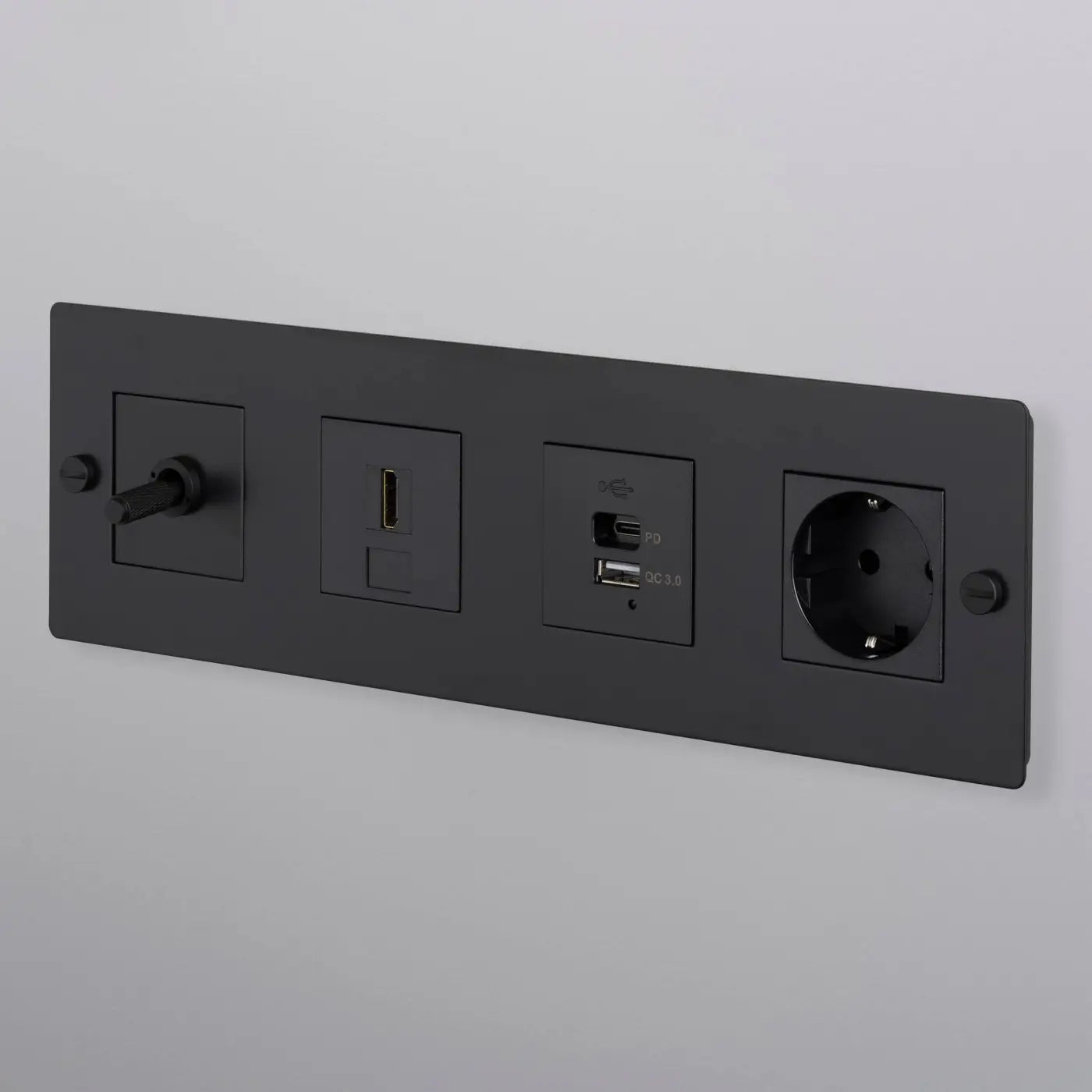

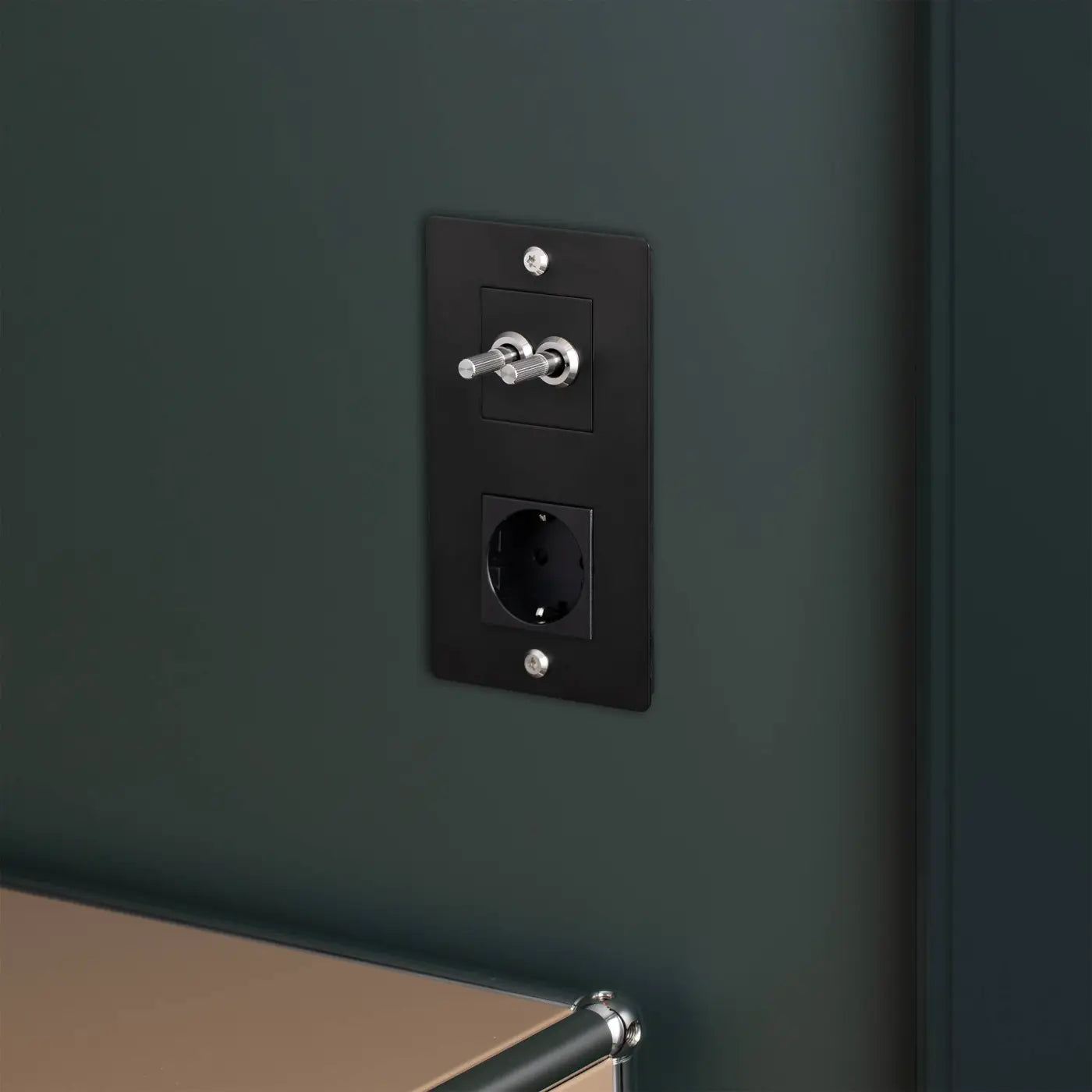

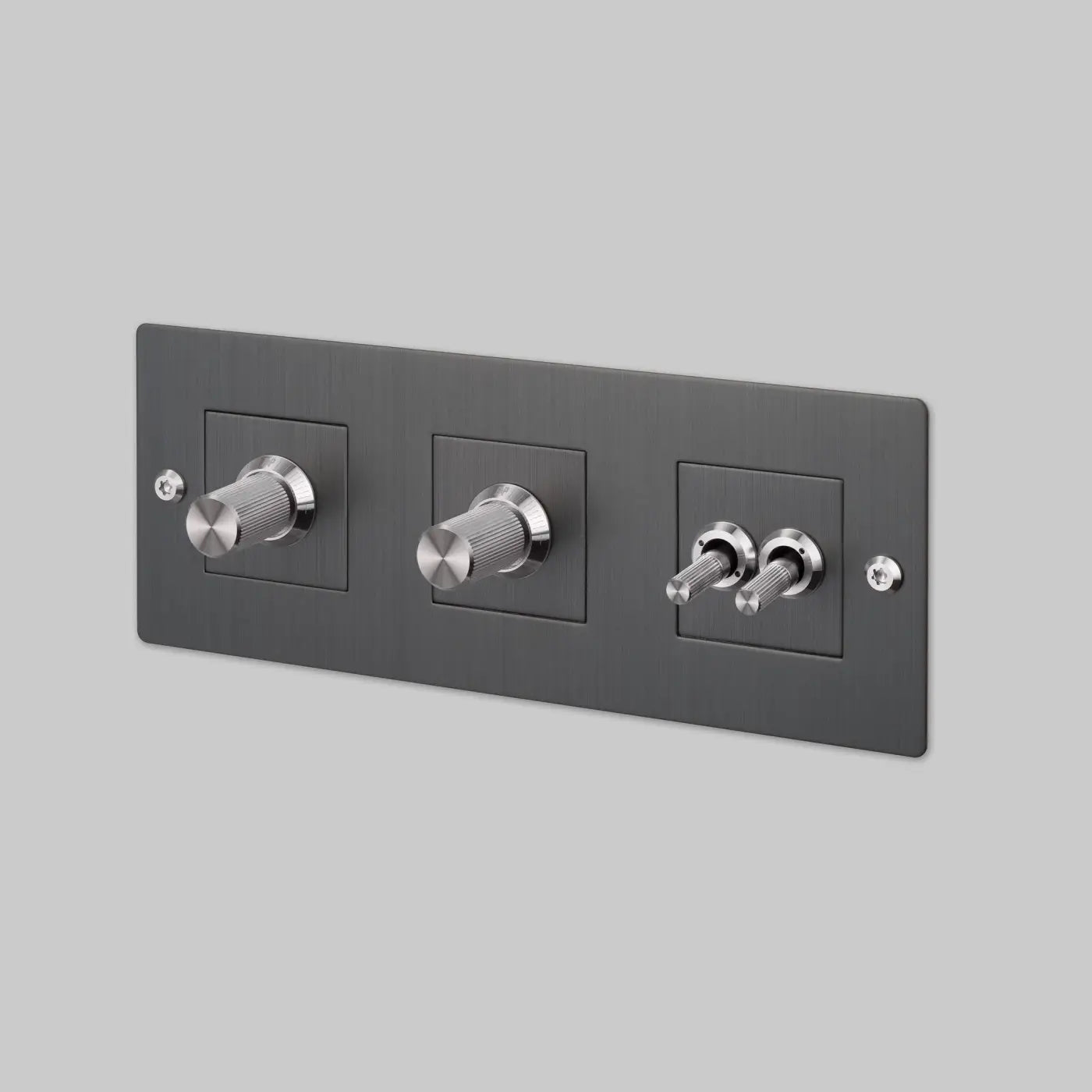

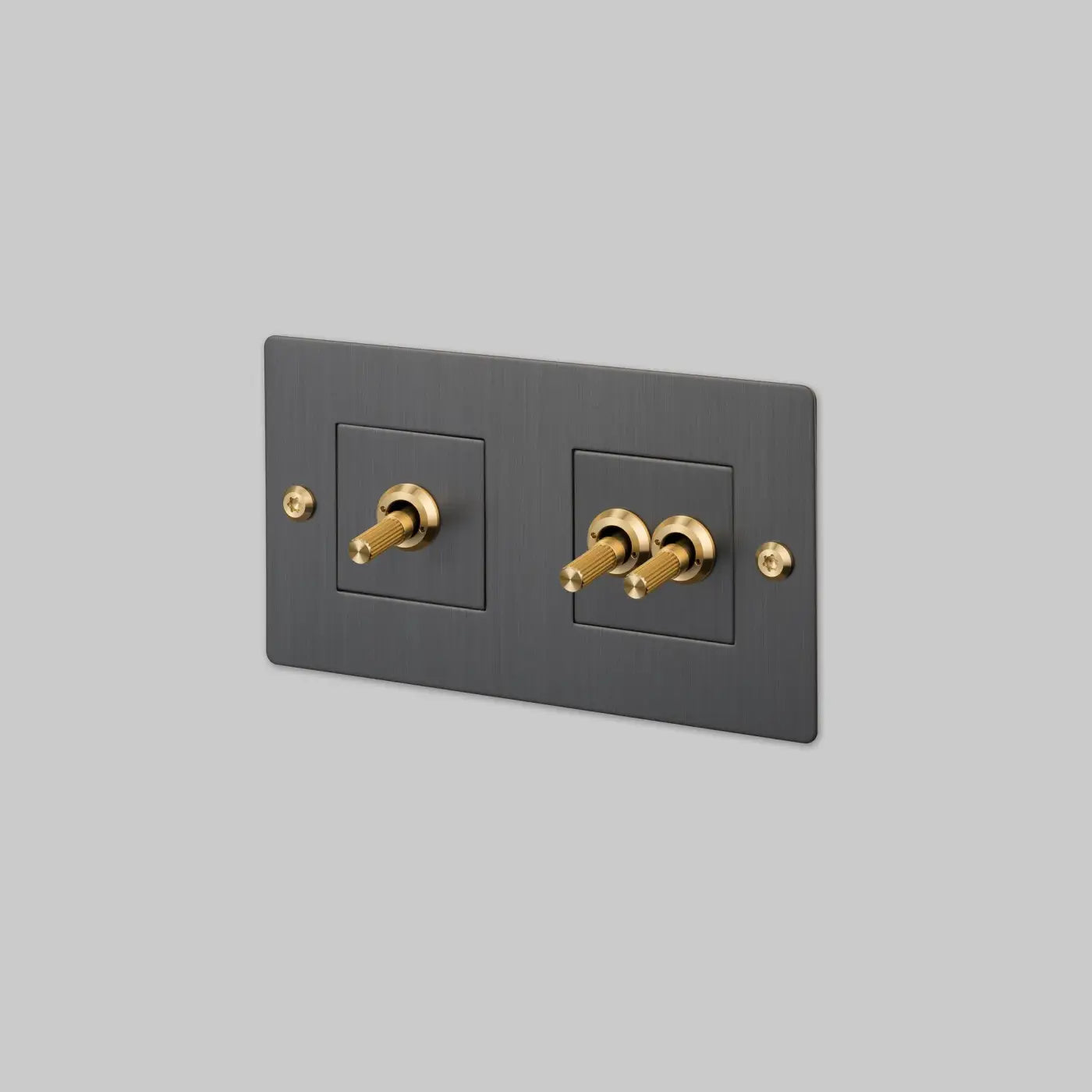

This 45 mm module can be the French type E socket or a data module, for example USB, RJ45, TV, HDMI or telephone. You can therefore put each gang together as you wish. A dimmer can sit next to 2 toggles, or 2 toggles next to a socket.

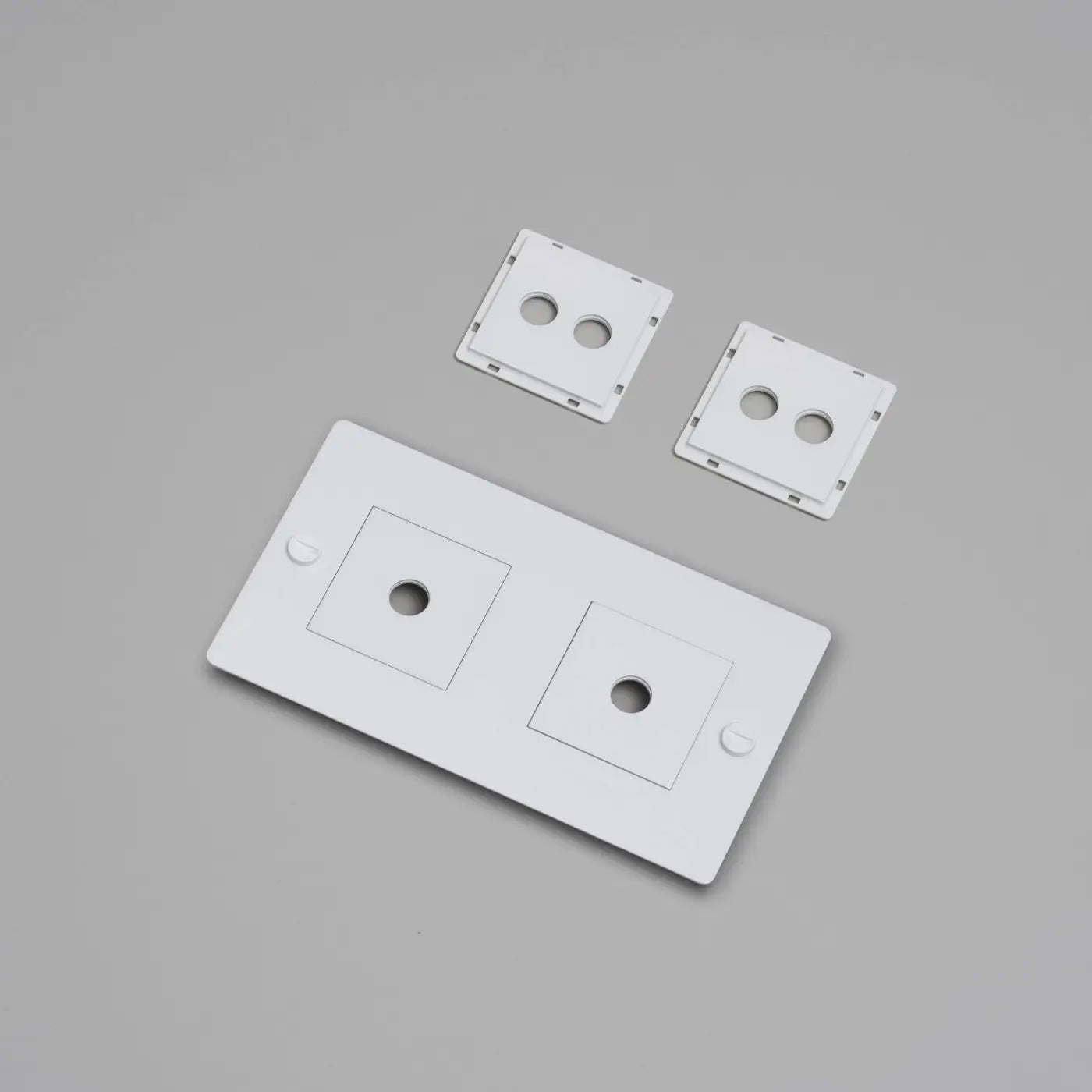

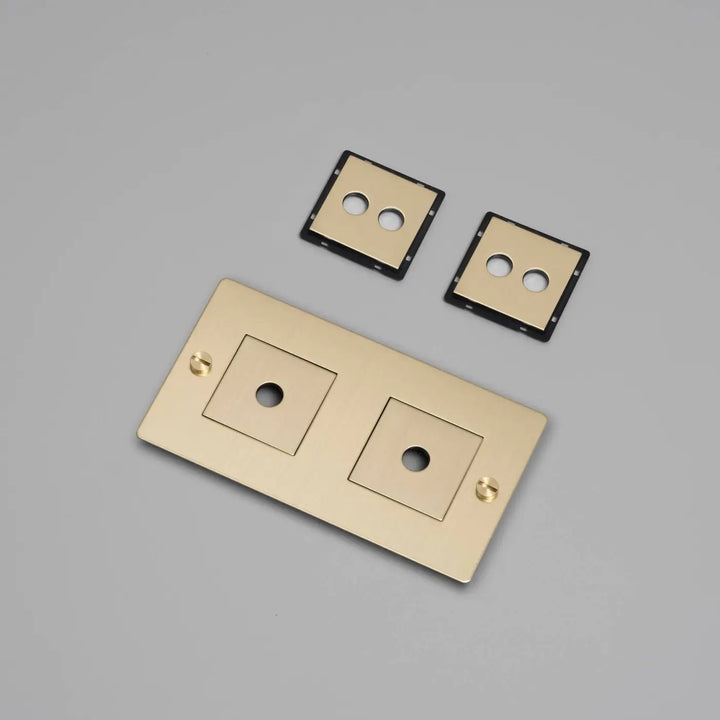

The box contains 1 wall plate, 2 slotted screw covers and the inserts. Vertical plates add 1 rotation adapter per gang for the modules. The modules and their finishing kits are not included: they are ordered separately.

Wall box, rooms and finishes for the plate

The plate is fixed to a European standard wall box, set flush with the wall. The depth of the box depends on the modules chosen and should be checked before installation. The electrical connection must be carried out by a qualified electrician.

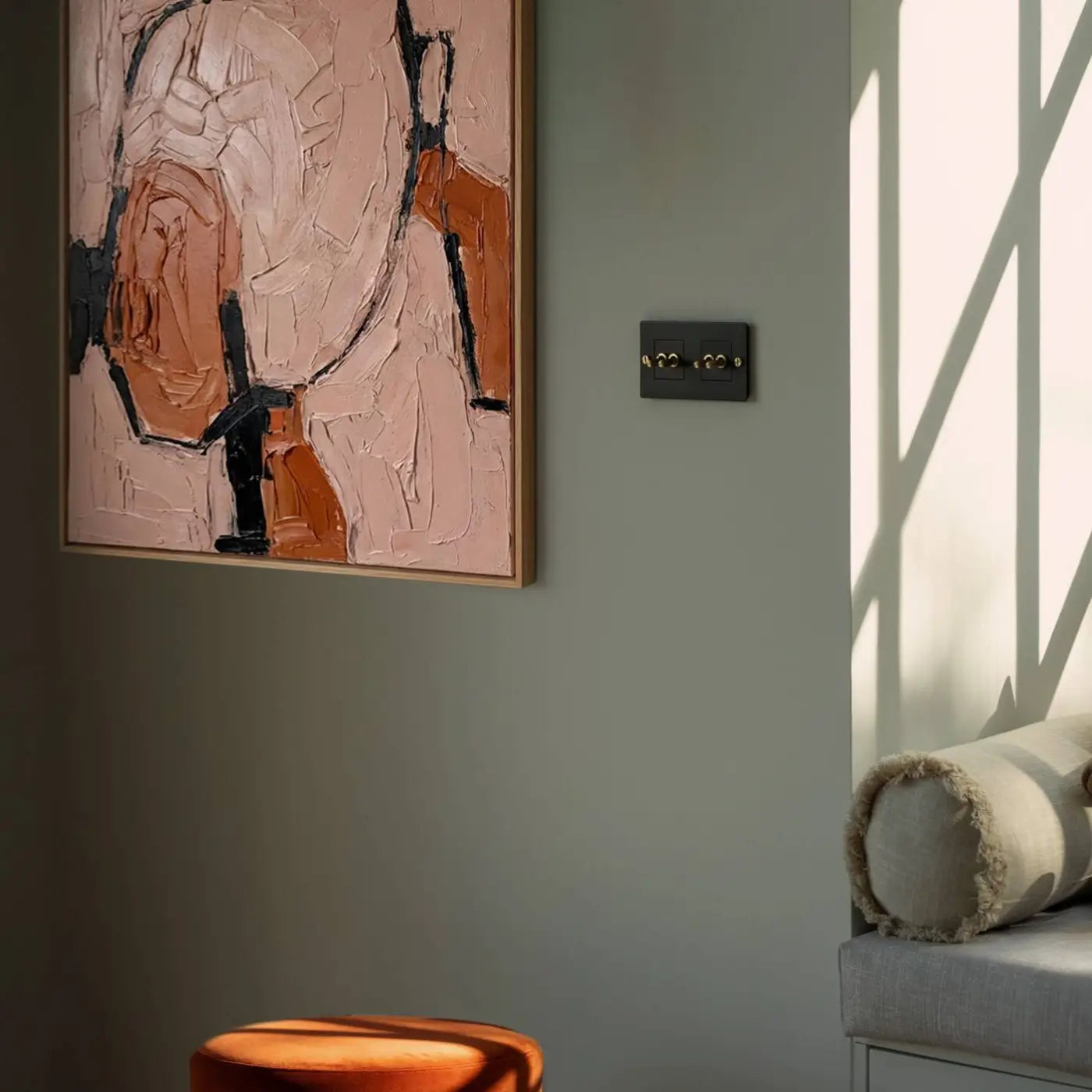

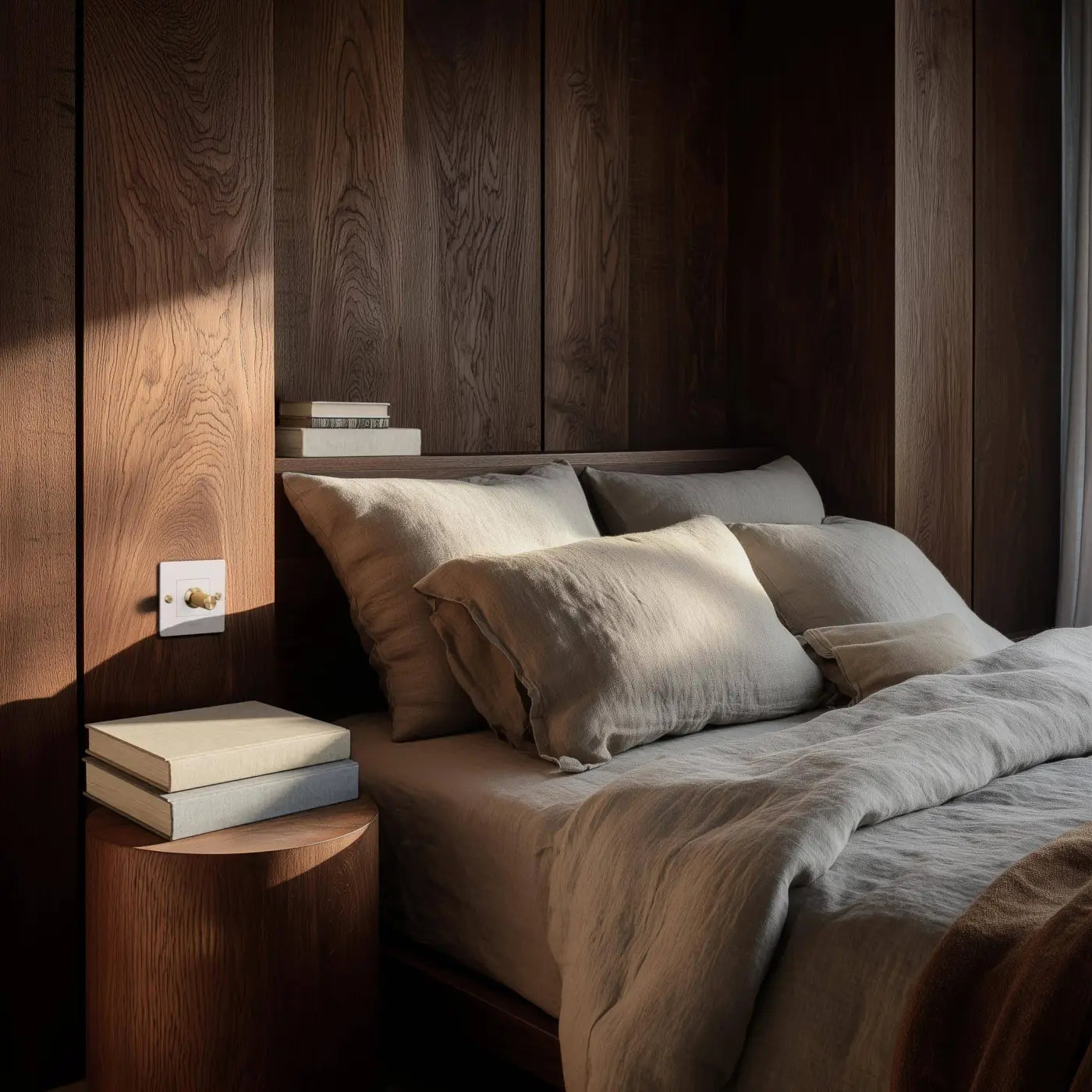

It is for indoor use only and is not suitable for damp environments. It can be fitted in a living room, a bedroom, a hallway, a staircase or an office. A dry, lint-free cloth is all it takes to clean it, with no chemical products.

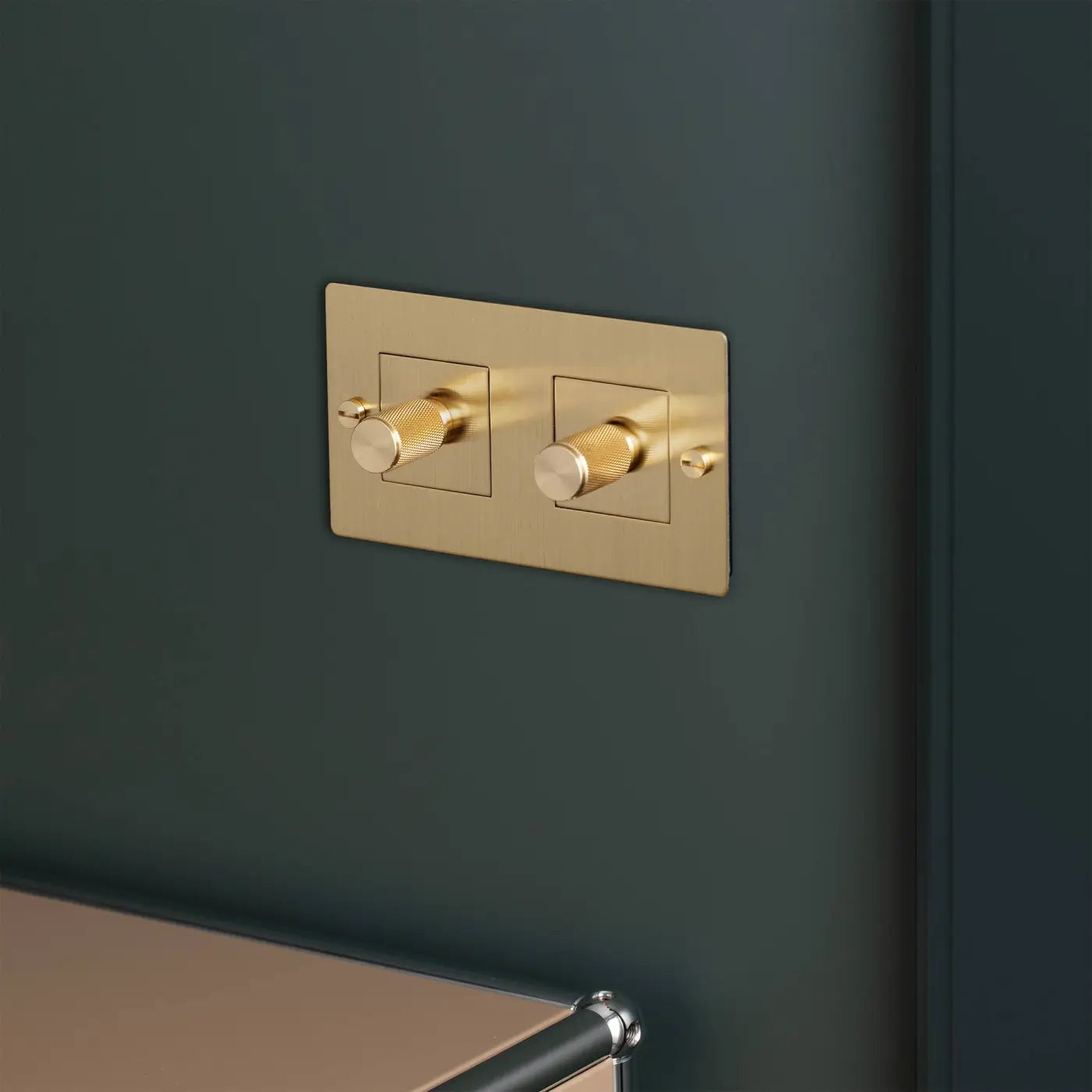

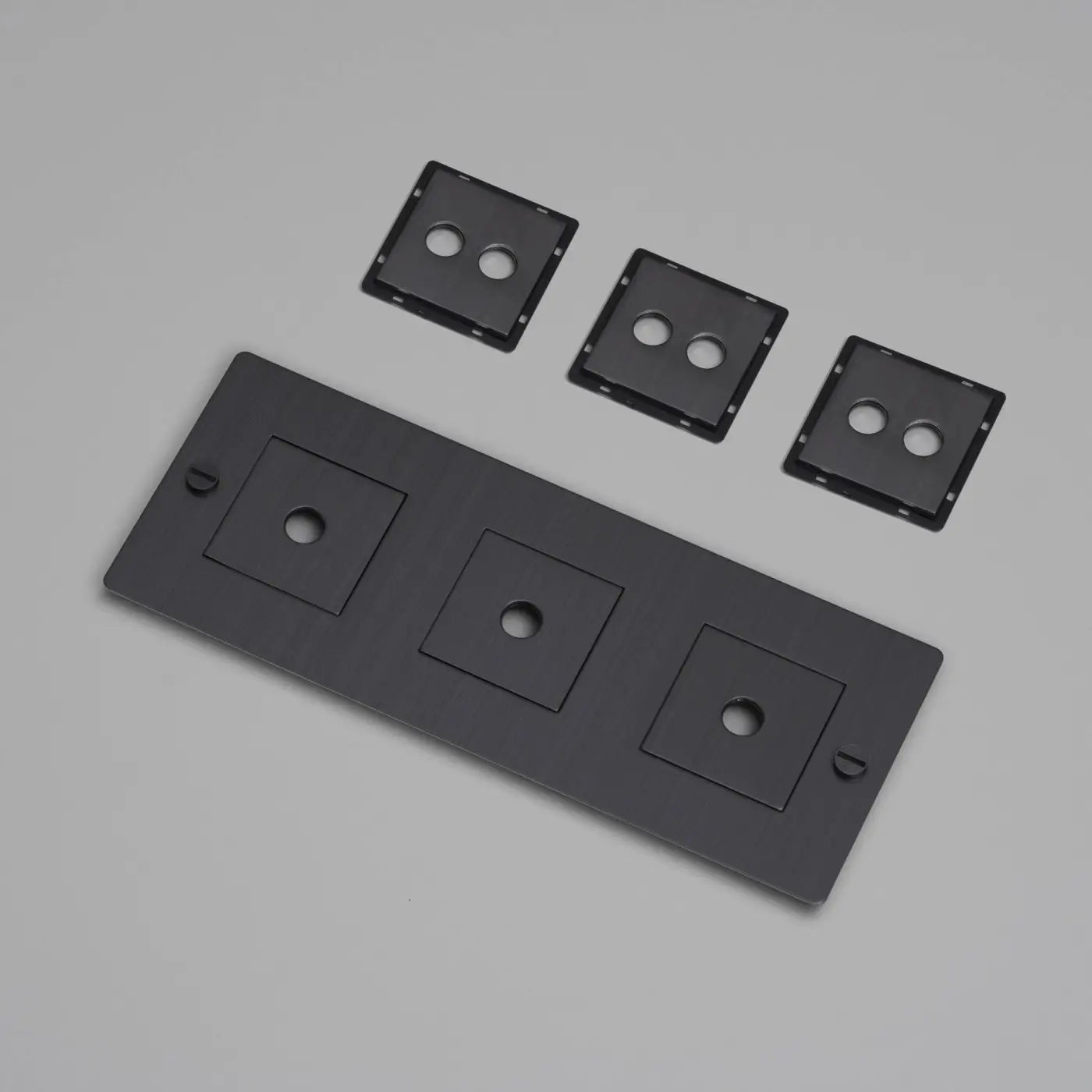

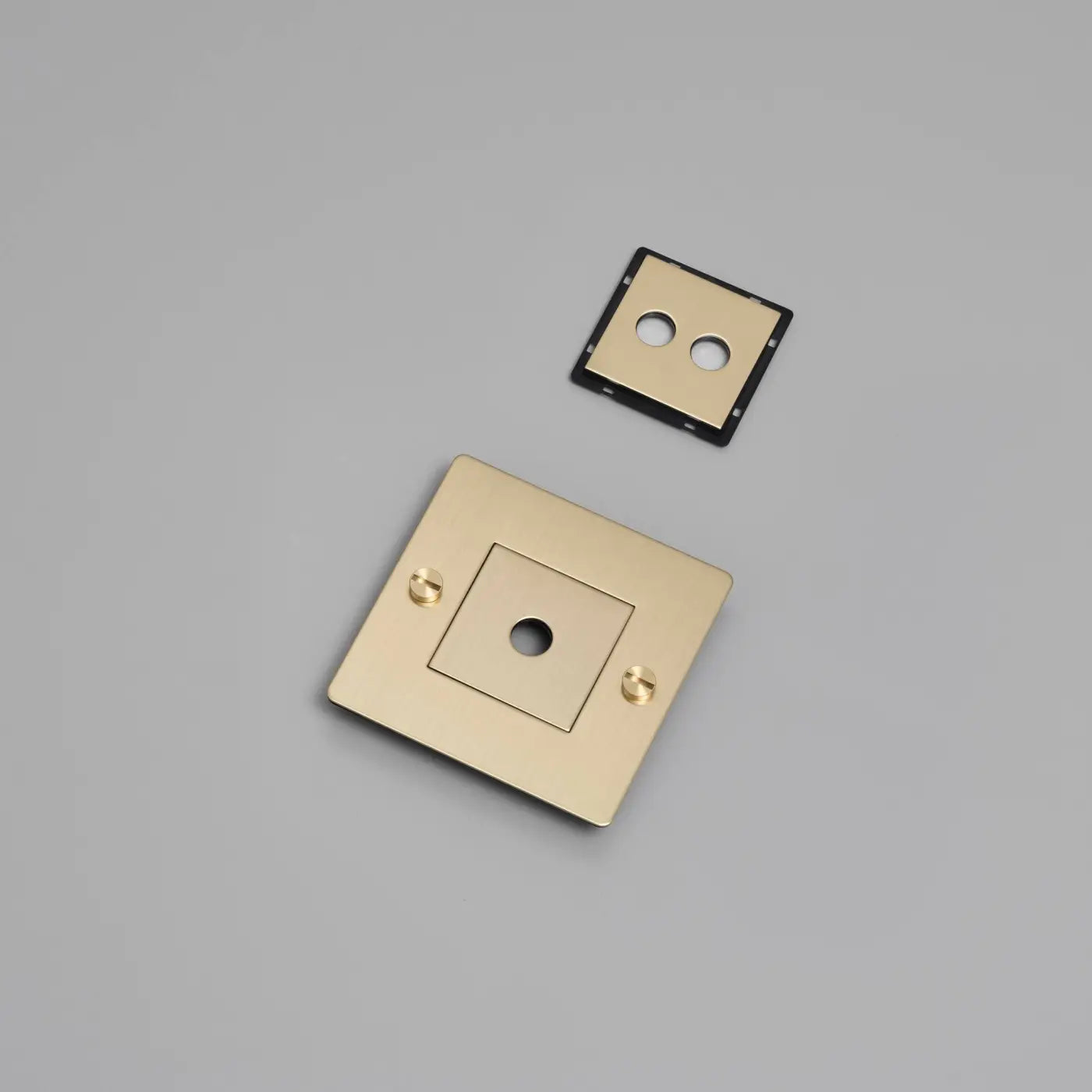

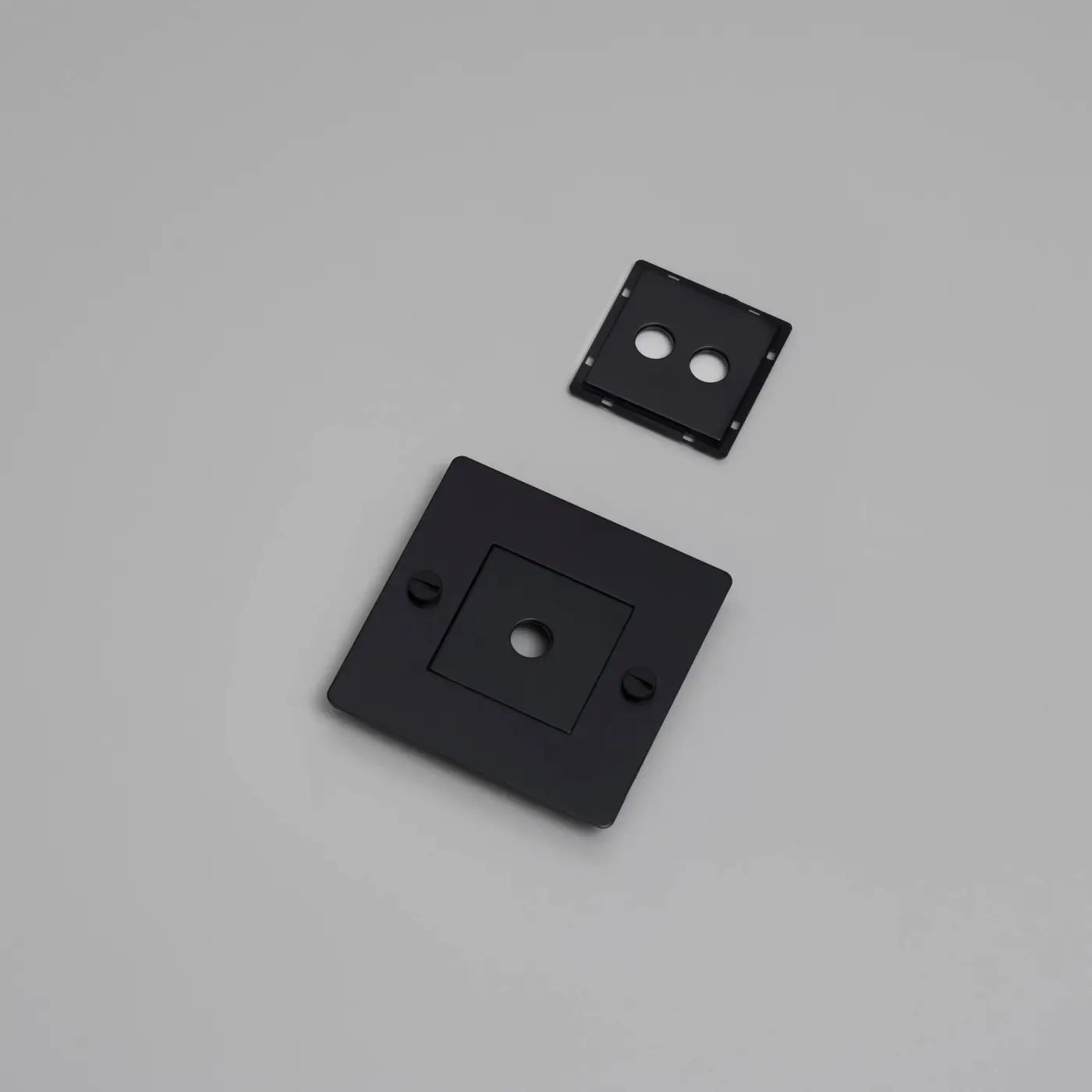

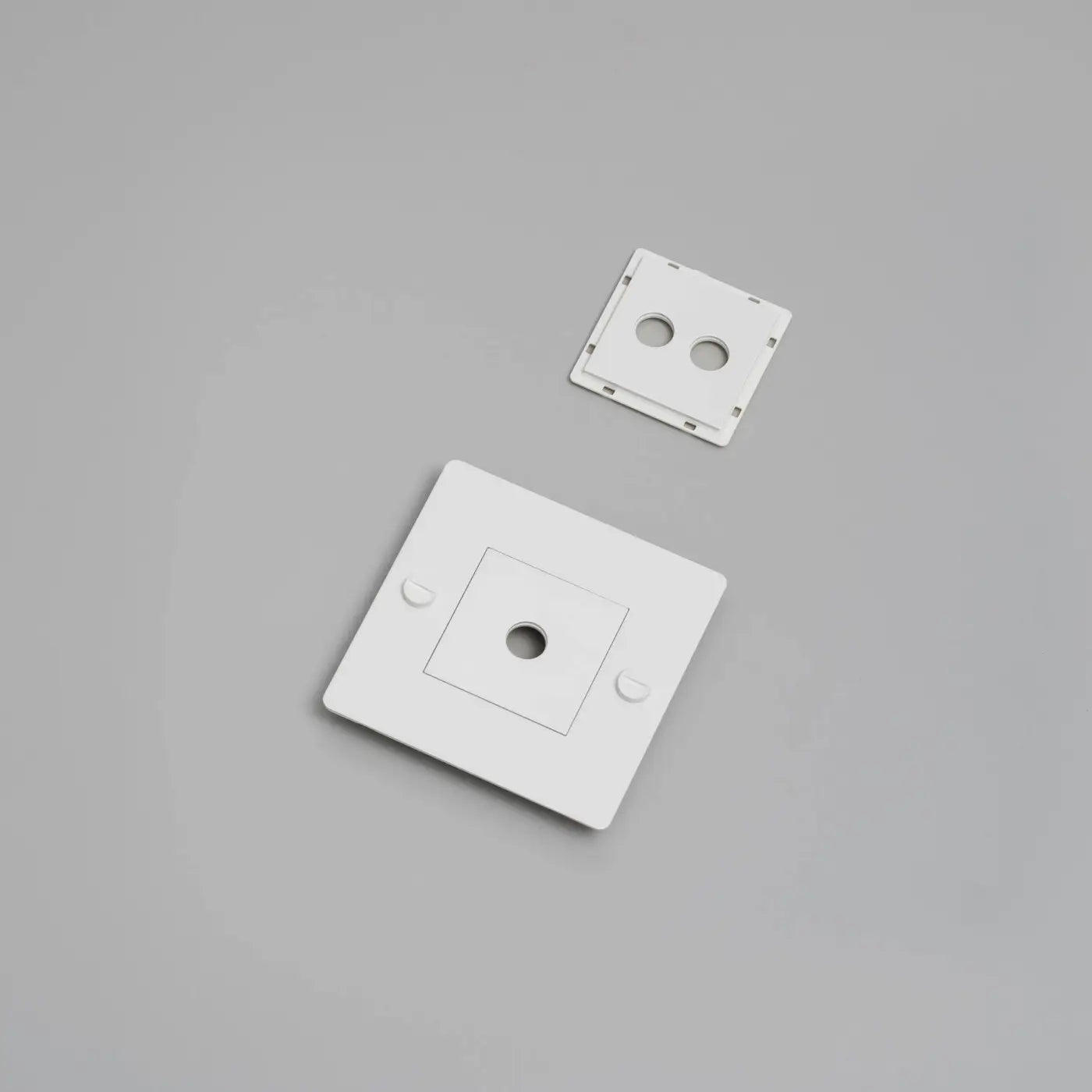

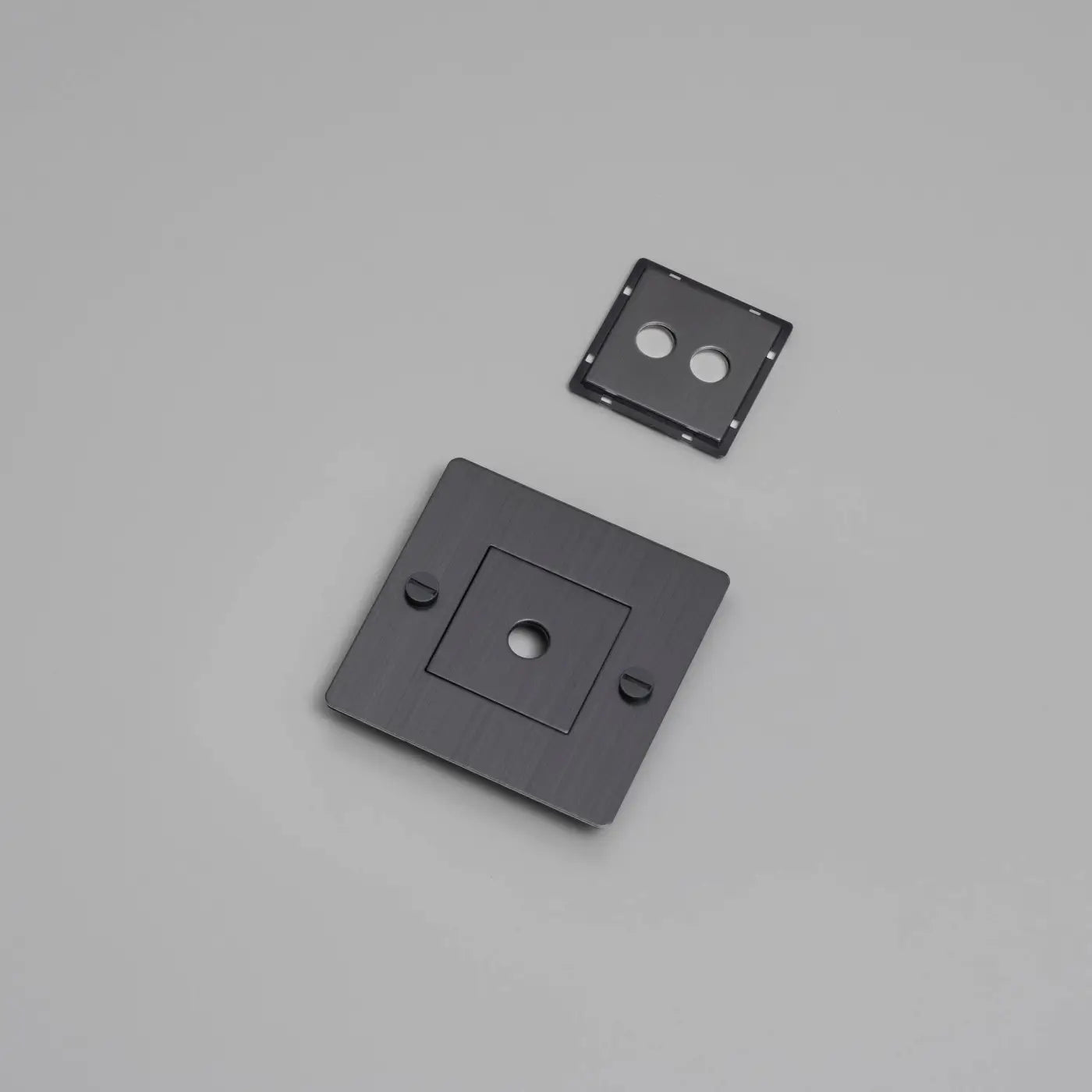

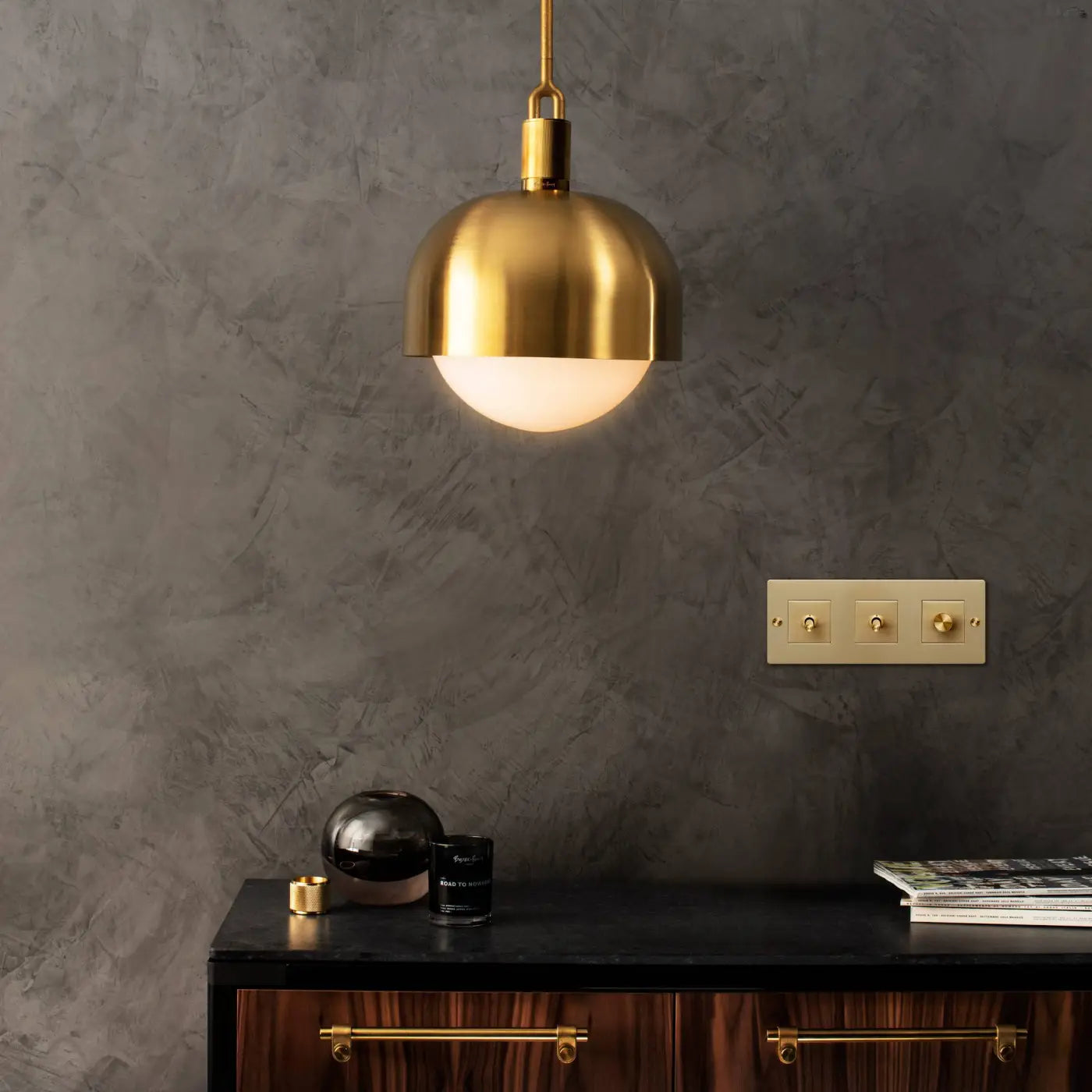

The brass wall plate and the smoked bronze version bring a warm tone to the wall. Steel stays neutral, while black and white blend in. For sockets or data modules alone, this wall plate is also available without inserts.

Frequently asked questions about the Wall Plate with inserts

What can be fitted to this plate with inserts?

Per gang, up to 2 toggle switches, or 1 dimmer, or 1 module in 45 mm format, that is, a socket or one of the brand's data modules.

What are the dimensions of each format?

1 gang: 9 cm by 9 cm. 2 gang: 16.1 cm by 9 cm. 3 gang: 23.2 cm by 9 cm. 4 gang: 30.3 cm by 9 cm. When fitted vertically, the plate is 9 cm wide and the length becomes the height.

What is the difference between the formats available?

The number of gangs, from 1 to 4, and the orientation, horizontal or vertical. The 1 gang plate can be chosen with or without the logo, while the other formats have no logo.

Are the modules supplied with the plate?

No. The box contains the plate, 2 slotted screw covers and the inserts. The modules and finishing kits are purchased separately.

Can it be installed in a bathroom?

No. The plate is designed for indoor use and is not suitable for damp environments.
