Electrical Module | MODULE (120W LED Dimmer)
- Manufacturer warranty 2 years
- 14-day returns
- Parcel tracking on every order
- Pay in 3 instalments with Klarna
SPECIFICATIONS AND DIMENSIONS
LIGHT
60 to 400 W halogen or incandescent
MATERIAL AND USE
PRO DATA
OUR ADVICE
DELIVERY AND RETURNS
Estimated home delivery in 3 to 10 days, for an order placed today. Delivery: free.
A tracking number is sent to you when the order ships. If you order several products, they may arrive in several parcels, at no extra cost.
This light is covered by the Buster + Punch 2-year commercial warranty against manufacturing defects. It is in addition to your statutory rights: the legal guarantee of conformity, valid for 2 years from delivery, and the guarantee against hidden defects.
Read our terms and conditions of saleYou have 14 days after delivery to change your mind, using the “Exercise my right of withdrawal” button on the website.
The light is returned directly to the manufacturer, at your expense. Contact our customer service team and they will give you the return address.
Please return it complete, with its accessories and instructions, in its original packaging if possible.
Read the returns policyDESCRIPTION

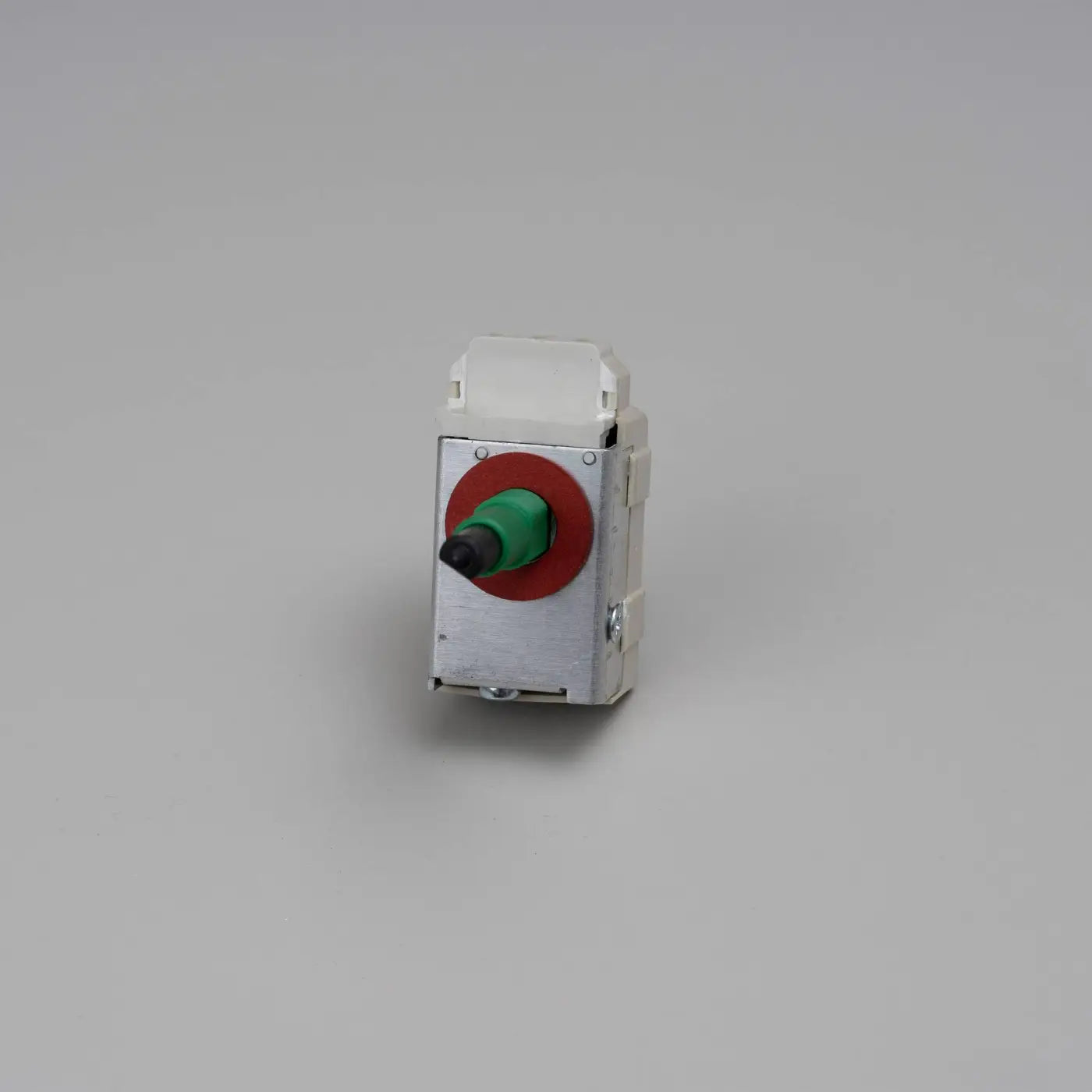

The 120W LED dimmer module by Buster + Punch is a two-way rotary dimmer, to be mounted on one of the brand's modular wall plates. It dims from 5 to 120 W of dimmable LED bulbs at 230 V and is sold on its own, without plate or knob.
Rotary LED dimmer: push on/off
This LED dimmer is switched on and off by pressing the knob. You then turn this knob to adjust the brightness. The rotation is smooth and silent.
The switch-on is gradual. It can take 1 to 2 seconds for the lighting to reach full brightness.
This electrical module accepts 5 to 120 W of dimmable LED bulbs, and 60 to 400 W of halogen or incandescent lighting. It connects to the 230 V mains, at 50 Hz. It is not compatible with non-dimmable bulbs, compact fluorescent bulbs, fans and motors.
Two-way dimmer: wiring and compatibility
This two-way dimmer controls the same light from 2 places, for example at the top and bottom of a staircase. It replaces only one of the 2 switches, while the other remains an ordinary two-way switch. It also works as a one-way switch, from a single point.
Only one dimmer module is allowed per circuit. It is not compatible with push-buttons or with the brand's multi-way dimmers. For a push-button circuit, Buster + Punch offers its 250W multi-way dimmer module.
The module is not suitable for damp environments. The electrical connection must be carried out by a qualified electrician.
Wall plate and dimmer kit: what you need to add
The package contains 1 dimmer module (120W) and 1 anti-rotation adapter. The plate and the knob are not included.
To get a complete dimmer, add a wall plate with inserts from the brand, in 1, 2, 3 or 4 gang. Each opening takes 1 dimmer. The plate without inserts is not suitable: it is reserved for sockets and data modules.
You also need a dimmer finishing kit, which provides the solid metal dimmer knob. The module accepts only Buster + Punch knobs, with linear knurling, called Linear, or cross knurling, called Cross. Once assembled, the unit is fitted on a European-standard wall box, mounted flush with the wall.
THE BRAND BUSTER + PUNCH
Buster + Punch is a London brand founded in 2013 by architect Massimo Buster Minale, known for its industrial design and knurled metal details.
- Lights, bulbs and electrical fittings: switches, dimmers, plates.
- Fittings from the brand’s European range, with French-format sockets.
FREQUENTLY ASKED QUESTIONS
5 to 120 W of dimmable LED bulbs, and 60 to 400 W of halogen or incandescent lighting.
Yes. It controls a light from 2 points, with an ordinary two-way switch at the other point, and also works as a one-way switch.
No. It is not compatible with push-buttons or with the brand's multi-way dimmers.
A wall plate with inserts and a dimmer finishing kit from Buster + Punch, with linear or cross knurling. The module is sold on its own.
No. The module is not suitable for damp environments.
